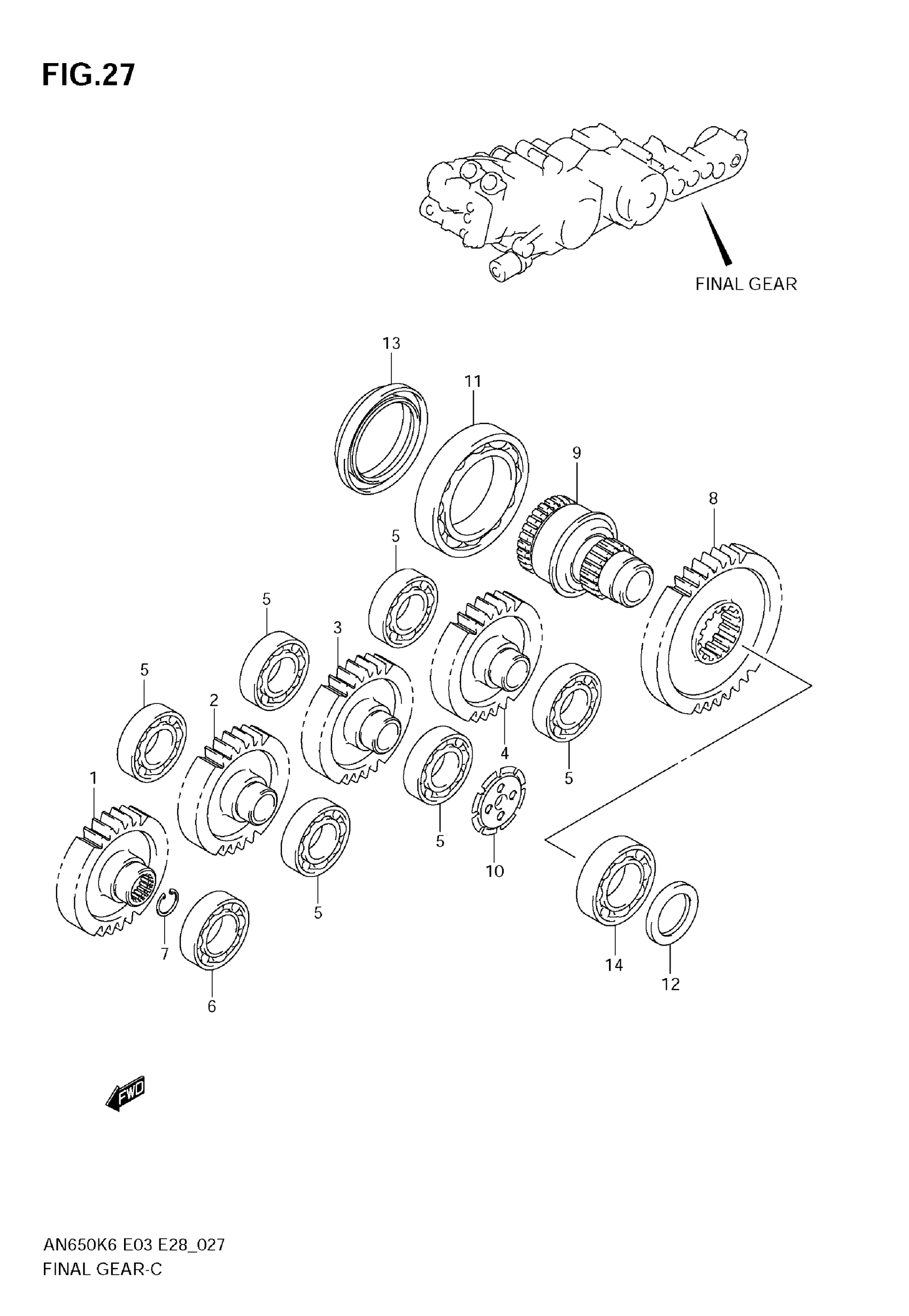

Suzuki AN650 (2009) FINAL GEAR Diagram

#

Description
Price

1

GEAR, FINAL DRIVE | NT:31

27311-10G20

Unavailable

2

GEAR, IDLE NO.1 | NT:32 This part replaces 27351-10G20.

27351-10G00

Unavailable

3

GEAR, IDLE NO.2 | NT:31 This part replaces 27352-10G20.

27352-10G00

Unavailable

4

GEAR, IDLE NO.3 | NT:34 This part replaces 27353-10G20.

27353-10G00

$132.83

5

BEARING, FINAL DRIVE GEAR

08113-62060

$34.25

6

BEARING, FINAL DRIVE LH | 35X62X14

09262-35070

$54.70

7

CIRCLIP This part replaces 08331-4122A.

08331-41229

$2.97

8

GEAR, FINAL DRIVEN | NT:49

27321-10G20

Unavailable

9

HUB, FINAL DRIVEN GEAR

27322-10G00

Unavailable

10

PLATE, IDLE GEAR NO.2 LH

27328-10G00

Unavailable

11

BEARING, FINAL DRIVEN RH | 70X110X13

09262-70001

$140.93

12

SEAL, FINAL DRIVEN GEAR OIL LH | 38X54X6

09283-38009

$17.33

13

SEAL, FINAL DRIVEN GEAR OIL RH | 70X96X16

09289-70001

$51.76

14

BEARING, FINAL DRIVEN LH

08113-60087

$43.55
