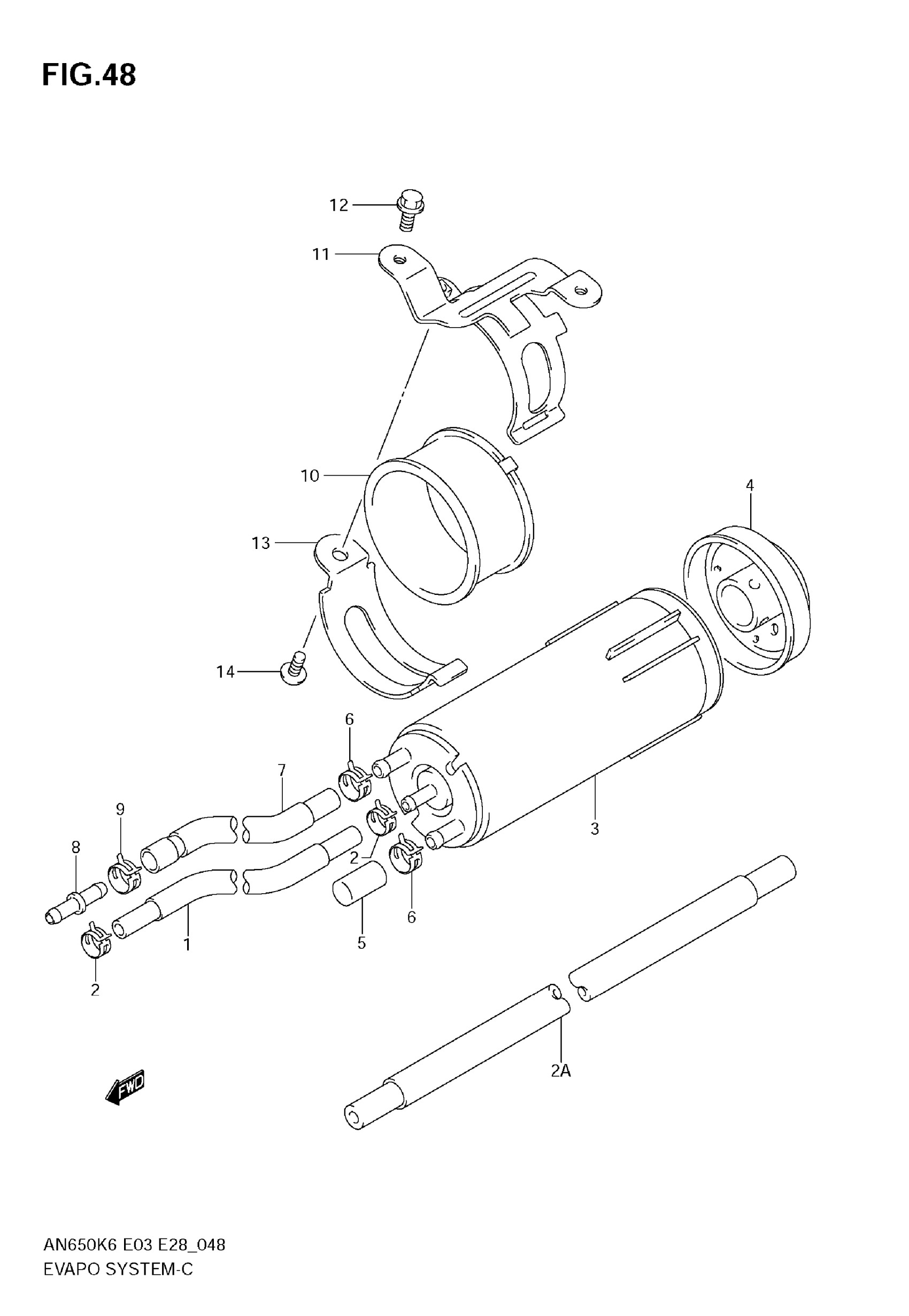

Suzuki AN650 (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, CHECK VALVE & CANISTER | MODEL K6/K7

44434-10G10

Unavailable

1

HOSE, CHECK VALVE & CANISTER | MODEL K8/K9

44434-10GA0

Unavailable

2

CLIP (ID:10.5,H:8)

09401-10409

$2.26

2A

HOSE, CANISTER & CHECK VALVE | MODEL K6/K7

44435-10G00

Unavailable

2A

HOSE, CANISTER & CHECK VALVE | MODEL K8/K9

44435-10GA0

Unavailable

3

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

4

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

$19.52

5

PLUG

09251-07003

$2.53

6

CLIP

09401-11415

$2.23

7

HOSE, PURGE | MODEL K6/K7

44436-10G00

Unavailable

7

HOSE, PURGE | MODEL K8/K9

44436-10GA0

Unavailable

8

JOINT

09367-06009

Unavailable

9

CLIP (ID:10.5,H:8)

09401-10409

$2.26

10

CUSHION CANISTER

44883-26E00

Unavailable

11

BRACKET, CANISTER

44880-10G00

Unavailable

12

BOLT

01550-0612B

$2.39

13

HOLDER, CANISTER

44882-26E00

Unavailable

14

SCREW

02142-0610B

$2.15
