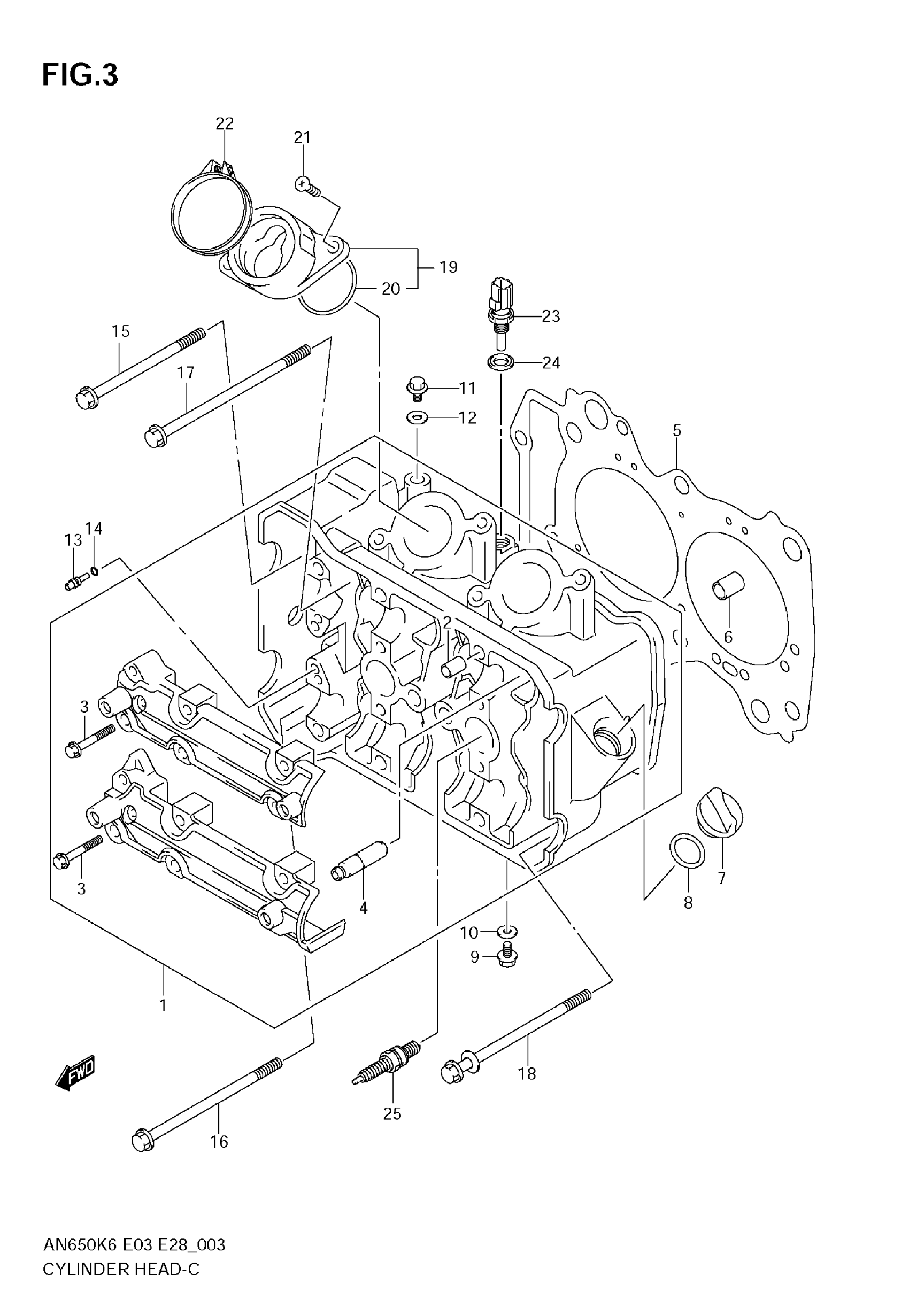

Suzuki AN650 (2009) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 3

11100-10G10

Unavailable

2

PIN, CAMSHAFT HOUSING KNOCK

09206-08001

$1.78

3

BOLT, CAMSHAFT HOUSING

09103-06266

$2.12

4

GUIDE, VALVE (OS:0.3) | OPT

11115-33D71

$40.73

5

GASKET, CYLINDER HEAD

11141-10G00

$42.45

6

PIN, CYLINDER HEAD KNOCK

04211-13189

$2.19

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O RING, ENGINE OIL FILLER PLUG

09280-17003

$1.65

9

BOLT, OIL GALLERY EXHAUST

09103-06222

$2.26

10

WASHER, OIL GALLERY EXHAUST

09168-06023

$2.35

11

BOLT (8X9.5) This part replaces 09103-08335.

09103-08421

$4.12

12

GASKET (8.2X14X1)

09168-08016

$1.65

13

JET, OIL GALL CYL HEAD

09493-28010

$16.57

14

O RING, OIL GALL JET

09280-04004

$1.91

15

BOLT, CYLINDER HEAD (L:110)

11161-10G50

Unavailable

16

BOLT, CYLINDER HEAD (L:135)

09103-08212

$7.47

17

BOLT, CYLINDER HEAD (L:150)

09116-10130

Unavailable

18

BOLT, CYLINDER HEAD (L:155)

09116-10133

Unavailable

19

PIPE ASSY,INTAK | Includes Item(s) 20 This part replaces 13101-10G00.

13101-10G01

$51.27

20

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

21

SCREW, INTAKE PIPE

02122-0616B

$1.96

22

CLAMP, INTAKE PIPE

09402-58208

$5.36

23

SENSOR, WATER TEMP

13650-10G00

$87.24

24

GASKET, TEMP SENSOR

09168-12017

$1.95

25

SPARK PLUG (NGK,CR8E)

09482-00456

$6.73

25

SPARK PLUG (ND,U24ESR-N)

09482-00457

$6.09

25

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$6.47

25

SPARK PLUG (ND,U22ESR-N) | OPT

09482-00515

$5.97

25

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

25

SPARK PLUG (ND,U27ESR-N) | OPT

09482-00459

$6.09
