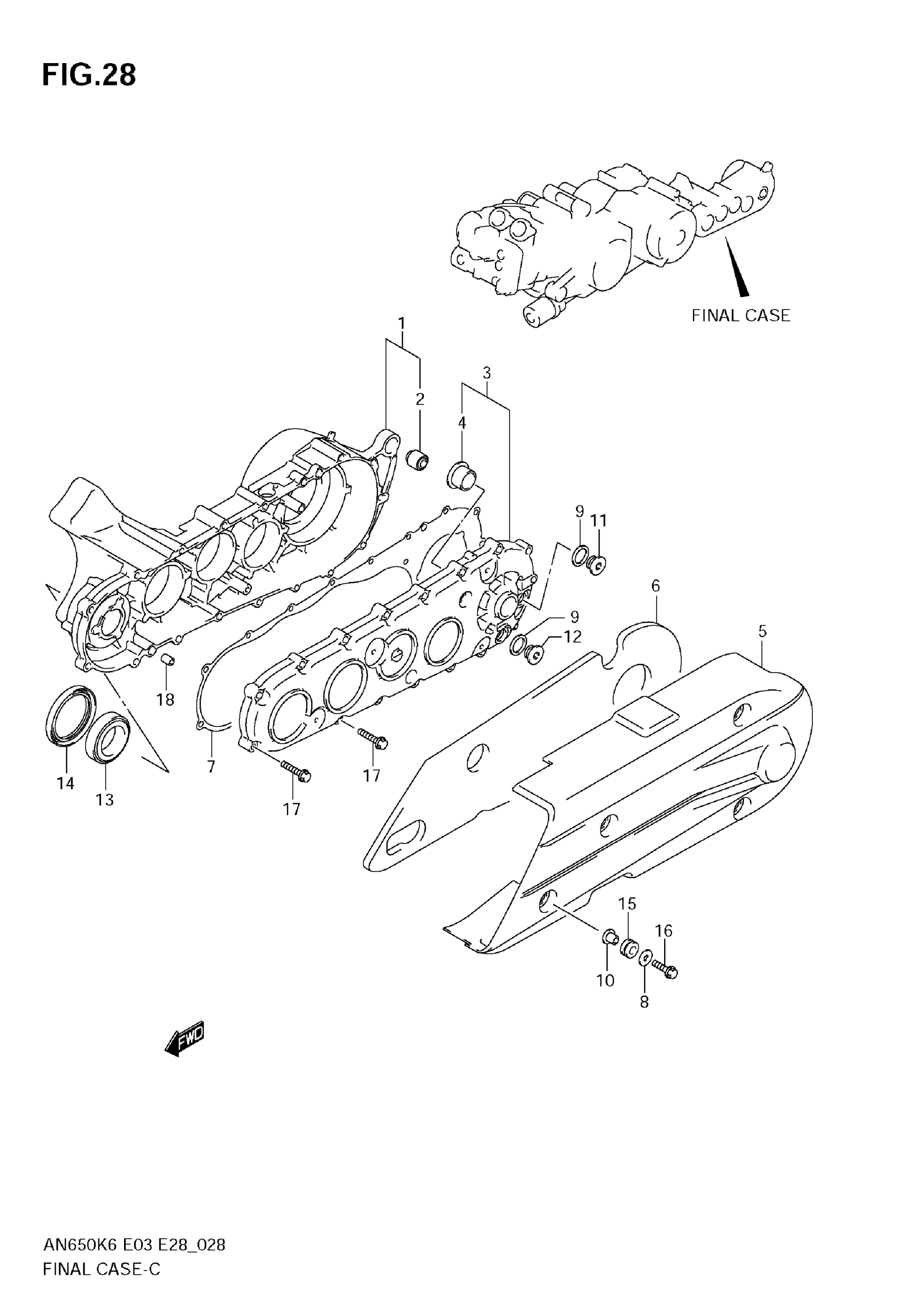

Suzuki AN650 (2009) CASE FINAL (AN650K6/K7/K8/K9) Diagram

#

Description
Price

1

CASE, FINAL GEAR RH | Includes Item(s) 2

27450-10G00

Unavailable

2

BUSH, REAR SHOCK ABS

09319-10032

$9.27

3

CASE, FINAL GEAR LH | Includes Item(s) 4

27460-10G00

Unavailable

4

BUSH, FINAL GEAR CASE

27433-24A00

Unavailable

5

COVER, FINAL GEAR CASE

27471-10G00

$125.61

6

CUSHION, FINAL GEAR CASE

27472-10G01

Unavailable

7

GASKET, FINAL GEAR CASE

27551-10G00

$24.03

8

WASHER, COVER BOLT | 6.5X18X1.6

09160-06084

$1.78

9

GASKET, OIL FILLER PLUG | 18X24.2X2

09168-18003

$1.49

10

SPACER, COVER BOLT

09169-06062

$2.50

11

PLUG, OIL FILLER

09248-18004

$15.42

12

PLUG, OIL DRAIN

09248-18008

$26.30

13

BEARING, FINAL GEAR CASE RH | 35X55X14

09265-35012

Unavailable

14

SEAL, FINAL GEAR CASE RH | 53X68.2X7

09283-53001

$16.00

15

CUSHION, FINAL COVER BOLT

09320-09016

$1.97

16

BOLT, FINAL GEAR CASE COVER

01547-0625B

$2.45

17

BOLT, FINAL GEAR CASE

01547-0630B

$2.73

18

PIN, FINAL GEAR CASE

04211-09149

$1.65
