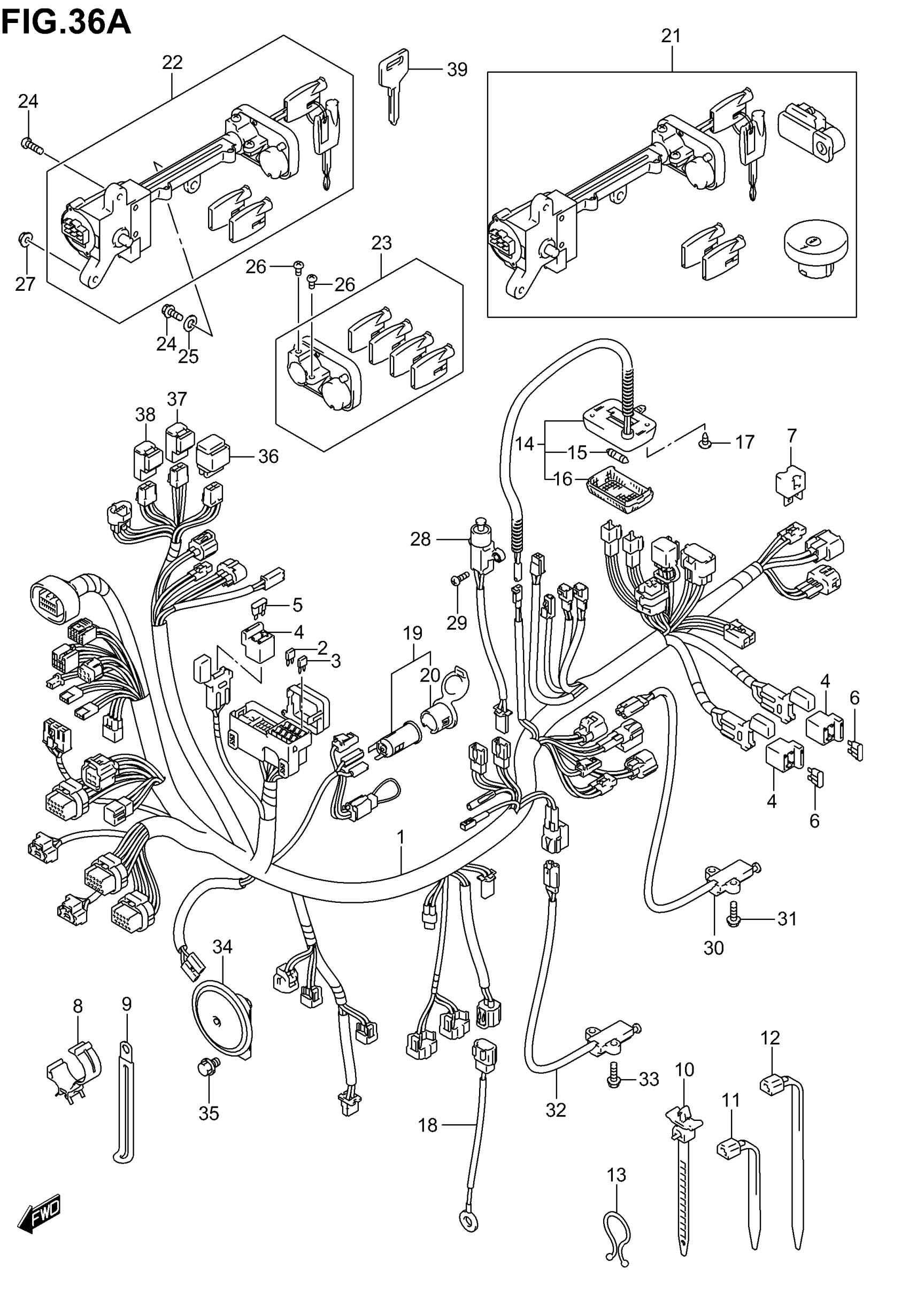

Suzuki AN650 (2005) WIRING HARNESS (AN650K4) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2 - 7

36610-10GD0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

HOLDER

36742-39D00

$19.15

5

FUSE (10A)

09481-10101

$2.07

6

FUSE (40A)

09481-40101

$9.35

7

DIODE

32800-16A00

$23.07

8

CLAMP

09403-20403

$3.58

8

CLAMP

09403-25401

Unavailable

8

CLAMP

09403-30403

Unavailable

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP (L:90)

09407-11402

$1.80

10

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

11

CLAMP

09407-19401

$3.05

12

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:235)

09407-25401

$4.66

13

CLIP

09408-00012

$2.13

14

LAMP ASSY, TRUNK BOX | Includes Item(s) 15 - 16

36210-10G00

Unavailable

15

BULB (12V,5W)

09471-12073

$3.03

16

LENS

36212-79001

Unavailable

17

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

18

WIRE, OIL PRESSURE SWITCH LEAD

36851-10G00

Unavailable

19

SOCKET ASSY (GRAY) | 12V,120W; Includes Item(s) 20

39410-76F00-P4Z

Unavailable

20

COVER (GRAY)

39441-76F00-P4Z

$14.77

21

LOCK SET This part replaces 37000-10890.

37000-10891

Unavailable

22

LOCK ASSY,STEER This part replaces 37110-10840.

37120-10855

$339.63

23

SHUTTER, STEERING LOCK This part replaces 37155-10G00.

37155-10G01

Unavailable

24

BOLT, STEERING LOCK

09139-06048

$2.14

25

WASHER, 6.5X18X1.6

09160-06109

$1.49

26

SCREW This part replaces 02112-35103.

02112-3510B

$2.25

27

NUT This part replaces 08316-10063.

08316-1006B

$2.50

28

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

29

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

30

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

31

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

32

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$70.52

33

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

34

HORN ASSY

38500-10G00

Unavailable

35

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

36

RELAY ASSY, FAN MOTOR

38740-38B00

$63.30

37

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

38

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

39

KEY, BLANK | OPT

37146-10G00

$38.13
