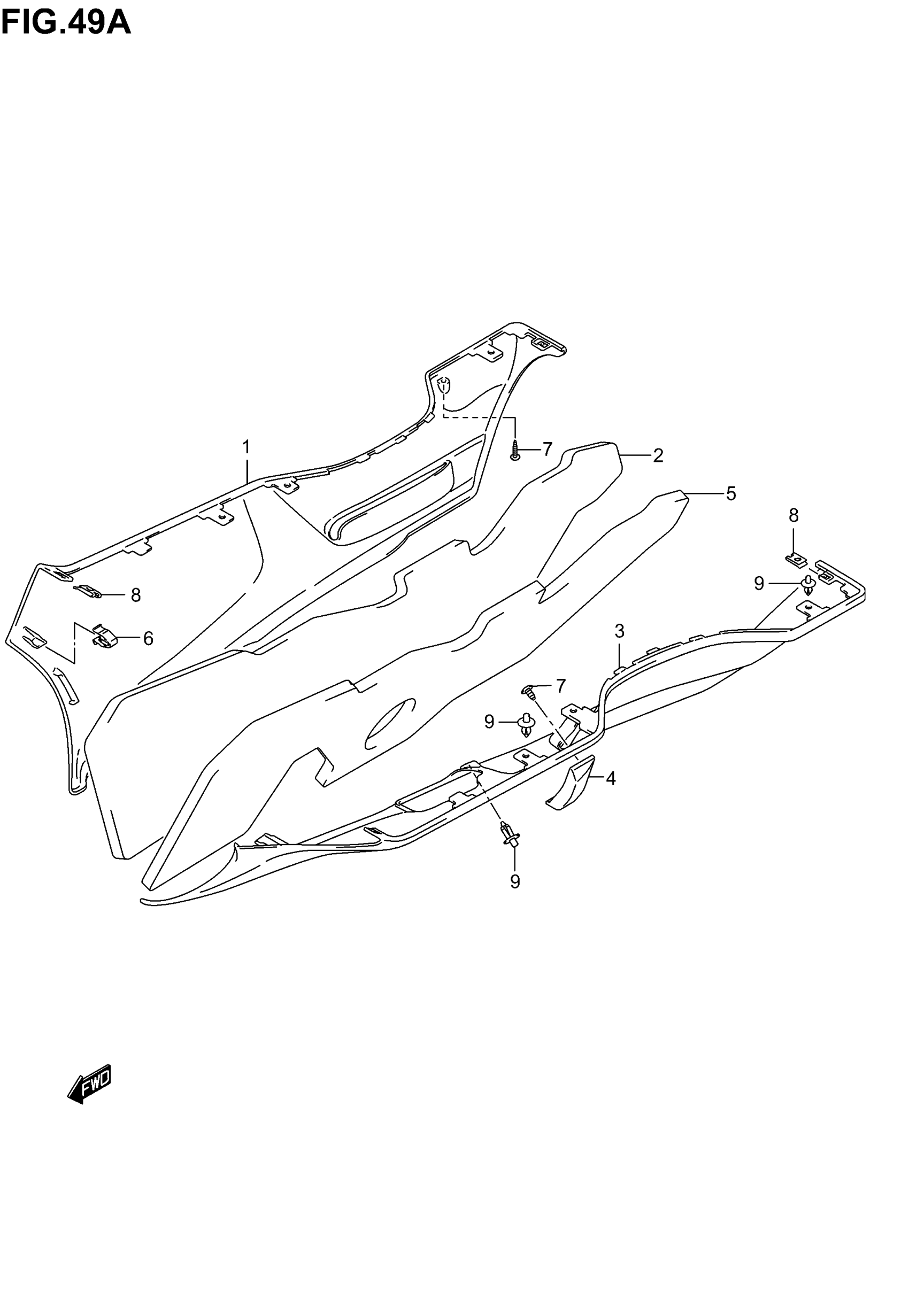

Suzuki AN650 (2005) SIDE LEG SHIELD (MODEL K5) Diagram

#

Description
Price

1

SHIELD, LEG SIDE RH (SILVER)

48171-10G00-YD8

Unavailable

1

SHIELD, LEG SIDE RH (WHITE)

48171-10G00-YC3

Unavailable

1

SHIELD, LEG SIDE RH (BLUE)

48171-10G00-YBA

Unavailable

2

CUSHION, RH

48172-10G00

$163.80

3

SHIELD, LEG SIDE LH (SILVER)

48181-10G20-YD8

Unavailable

3

SHIELD, LEG SIDE LH (WHITE)

48181-10G20-YC3

$371.53

3

SHIELD, LEG SIDE LH (BLUE)

48181-10G20-YBA

Unavailable

4

COVER, LEG SHIELD LH

48183-10G00

$22.42

5

CUSHION, LH

48182-10G00

$166.88

6

CLIP

09409-08326

$2.48

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

8

NUT

09148-05038

$1.97

9

CLIP (BLACK)

09409-08308-5ES

$1.97
