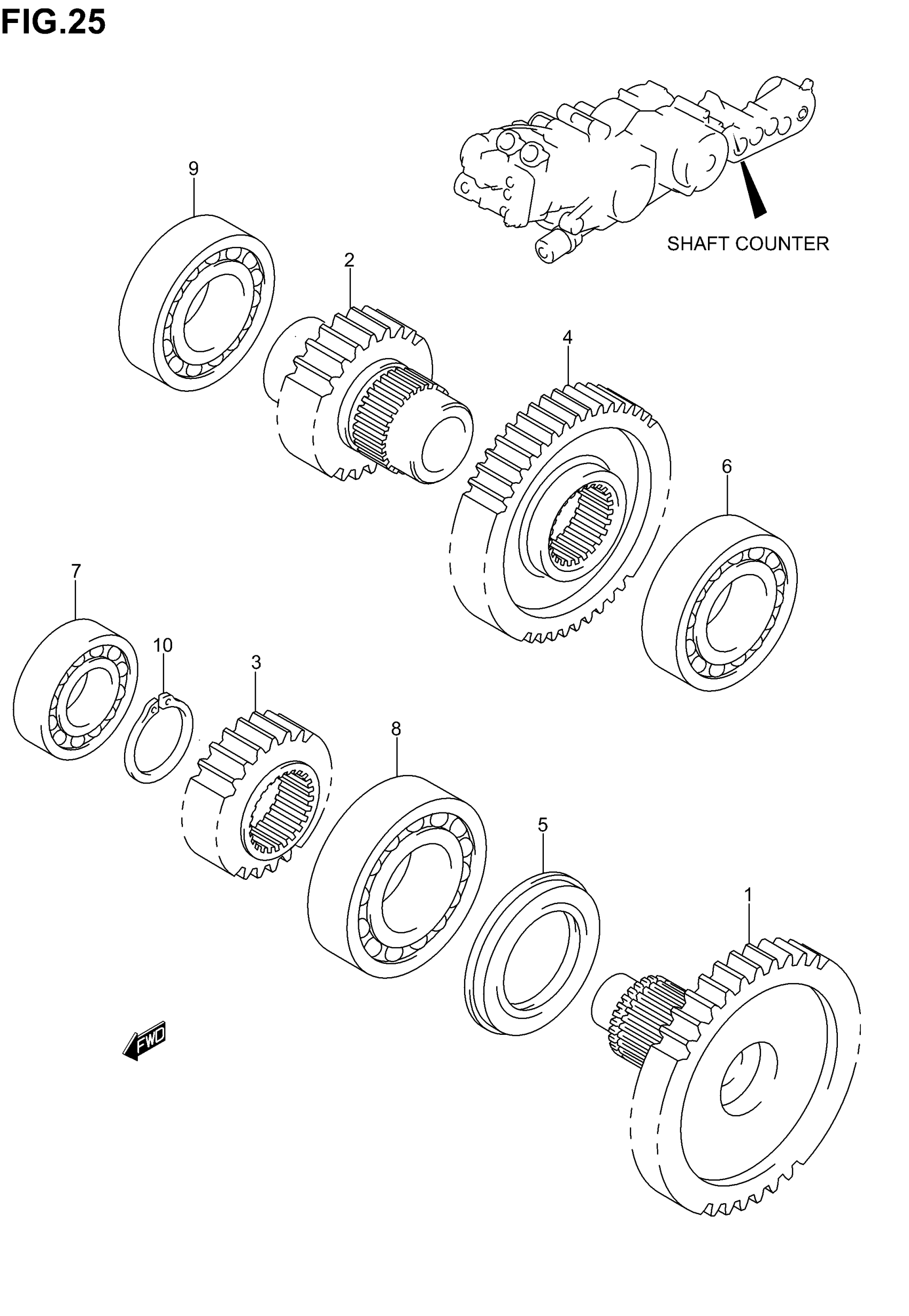

Suzuki AN650 (2005) SHAFT COUNTER/IDLER (MODEL K3/K4) Diagram

#

Description

Price

1

SHAFT, COUNTER | NT:39 This part replaces 24121-10G00.

24121-10G20

Unavailable

2

SHAFT, IDLE | NT:22

24151-10G00

Unavailable

3

GEAR, IDLER DRIVE | NT:25

24331-10G00

$80.38

4

GEAR, IDLER DRIVEN | NT:43

24381-10G00

$118.08

5

SEAL, COUNTER SHAFT LH

09283-35015

$19.38

6

BEARING (30X55X13) | MODEL K3 30X55X13 This part replaces 09262-30110.

09262-30113

$49.77

6

BEARING, IDLE SHAFT LH | MODEL K4 30X55X13

09262-30113

$49.77

7

BEARING, COUNTER SHAFT RH | 20X47X14

09262-20069

$23.28

8

BEARING, COUNTER SHAFT LH

08113-62060

$34.25

9

BEARING, IDLE SHAFT RH

08113-62060

$34.25

10

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19
