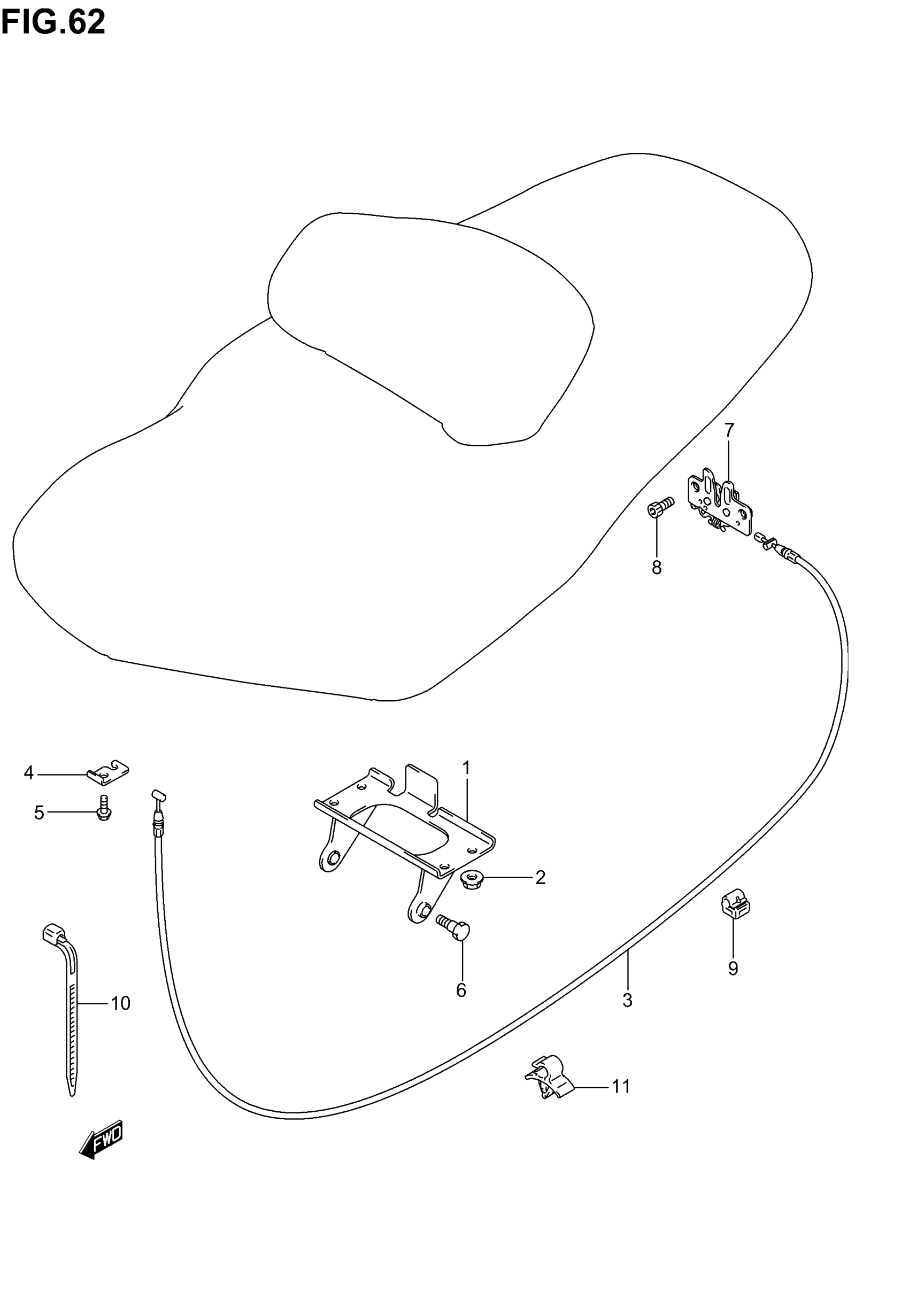

Suzuki AN650 (2005) SEAT SUPPORT BRACKET Diagram

#

Description

Price

1

BRACKET, SEAT HINGE

45240-10G00

Unavailable

2

NUT This part replaces 08316-10063.

08316-1006B

$2.50

3

CABLE, SEAT LOCK | AN650K3 This part replaces 45280-10G01.

45280-10G10

$43.27

3

CABLE, SEAT LOCK | AN650K4/K5

45280-10G10

$43.27

4

GUIDE, SEAT LOCK CABLE This part replaces 45288-10G00.

45288-10G01

Unavailable

5

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

6

BOLT (6X18.5)

09111-06068

$6.13

7

BRACKET, STRIKER SUPPORT This part replaces 45700-14FB0.

45700-14FB2

$75.90

8

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

9

CLAMP

09403-05406

$2.53

10

CLAMP

09407-18402

$2.19

11

CLAMP | AN650K3 E33

09403-05317

Unavailable
