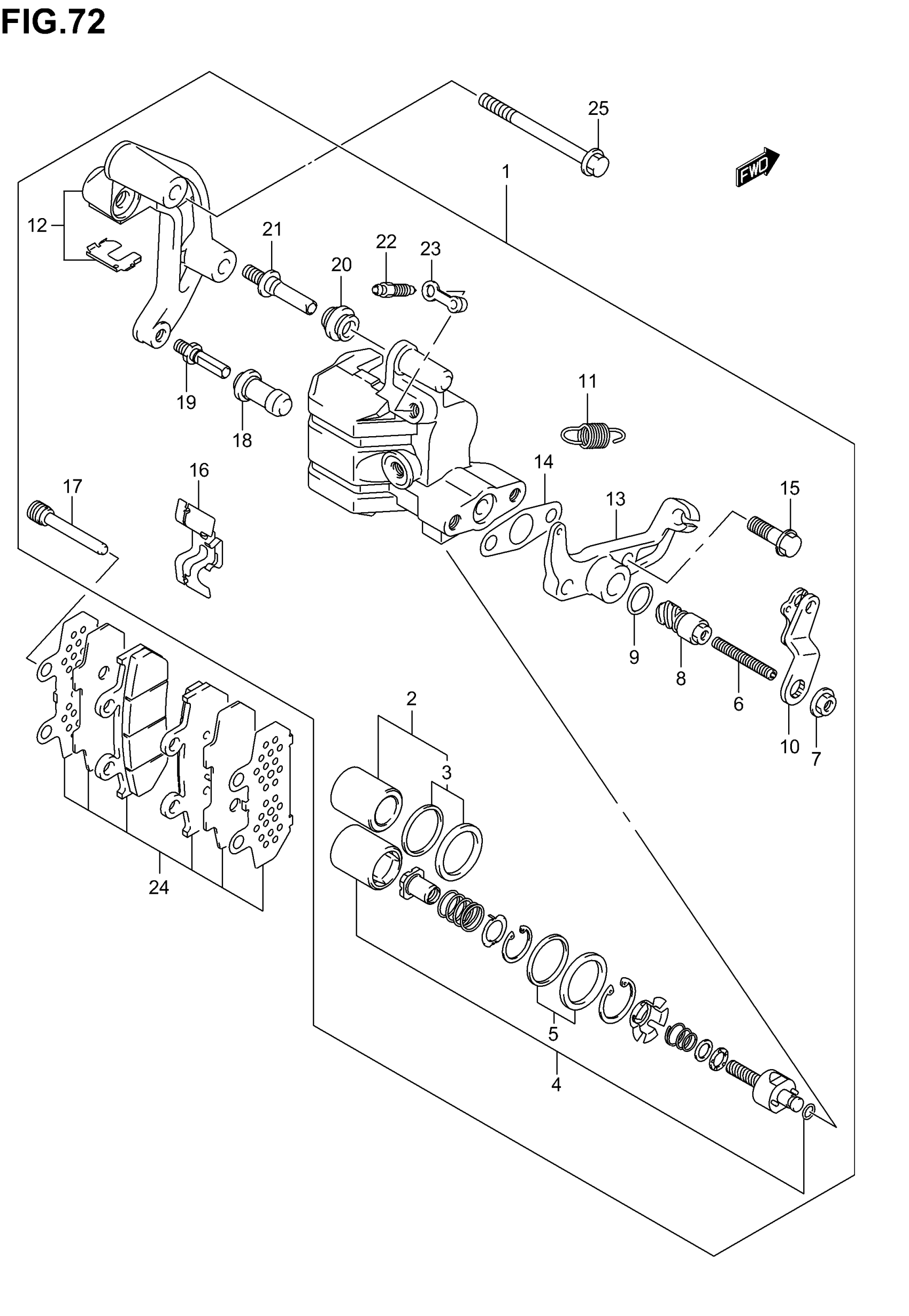

Suzuki AN650 (2005) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,RE | Includes Item(s) 2 - 23 This part replaces 69100-10G00-999.

69100-10G01-999

$734.63

2

PISTON SET

69100-43810

$36.64

3

SEAL SET, PISTON

69100-36810

$9.03

4

PISTON SET

69100-10830

$46.50

5

SEAL SET, PISTON

69100-36810

$9.03

6

BOLT

69127-10G00

$17.43

7

NUT

69123-14F40

$6.55

8

SHAFT

69124-10G00

Unavailable

9

O RING

69122-14F40

Unavailable

10

ARM

69125-10G00

Unavailable

11

SPRING, RETURN

69128-14F00

$6.30

12

BRACKET

69150-10G00

Unavailable

13

PARKING

69120-10G00

$145.32

14

PACKING

69126-14F40

$5.83

15

BOLT (8X25)

69121-14F00

Unavailable

16

SPRING, PAD

69115-10G00

$18.35

17

PIN, HANGER

59345-13E00

$14.34

18

BOOT

59386-13A00

$7.95

19

BOLT

59382-27C30

$9.07

20

BOOT

59303-14500

$5.52

21

PIN

59305-27C00

$23.48

22

BLEEDER

59121-10G00

$14.47

23

CAP, BLEEDER

59122-01A00

$4.34

24

PAD & SHIM SET

69100-10840

$56.58

25

BOLT

09103-08181

Unavailable
