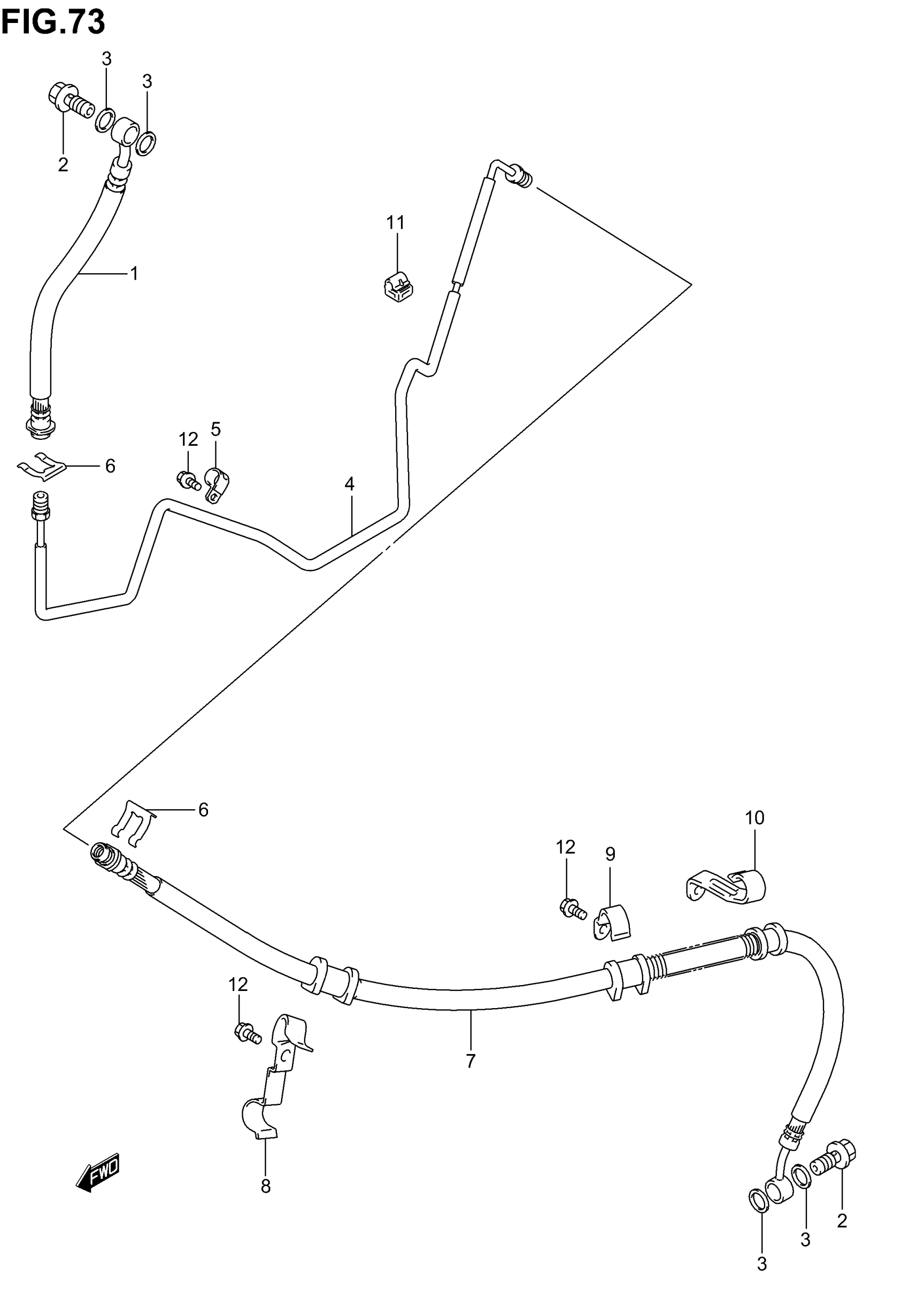

Suzuki AN650 (2005) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE COMP,RR BR This part replaces 69240-10G10.

69240-10G12

$100.95

2

UNION This part replaces 09360-10042.

09360-10062

$5.99

3

WASHER (10X15X1.5)

09161-10009

$1.89

4

PIPE, REAR BRAKE

69250-10G00

$55.07

5

CLAMP

09403-07401

Unavailable

6

E RING

09383-13003

$2.83

7

HOSE This part replaces 69480-10G00.

69480-10G02

Unavailable

8

CLAMP, REAR BRAKE HOSE NO.1

69261-10G00

Unavailable

9

CLAMP, REAR BRAKE HOSE NO.2

69266-10G00

Unavailable

10

CLAMP, REAR BRAKE HOSE NO.3

69268-10G00

Unavailable

11

CLAMP, REAR BRAKE PIPE NO.2

09403-05406

$2.83

12

BOLT This part replaces 01547-06123.

01547-0612B

$1.25
