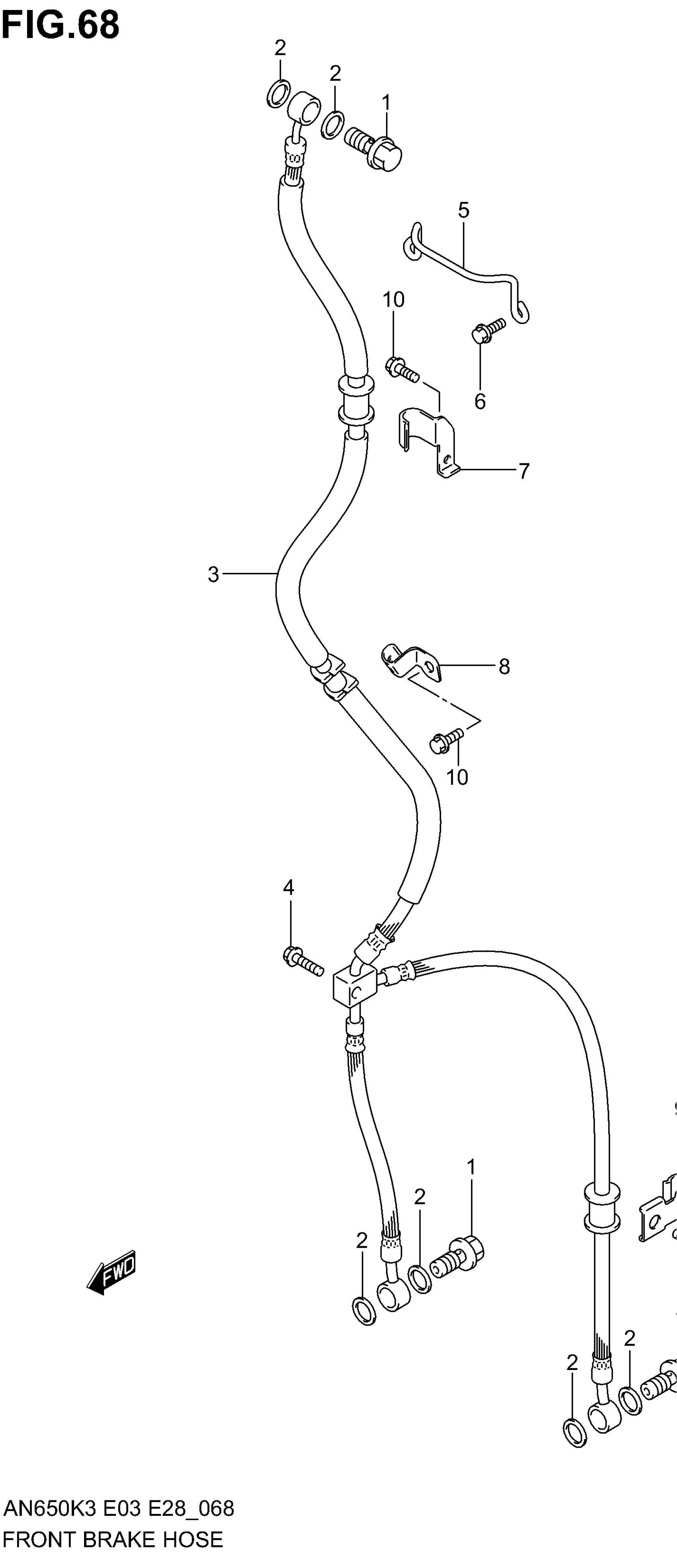

Suzuki AN650 (2005) FRONT BRAKE HOSE Diagram

#

Description

Price

1

UNION This part replaces 09360-10042.

09360-10062

$5.99

2

WASHER (10X15X1.5)

09161-10009

$1.89

3

HOSE COMP,FRT B This part replaces 59480-10G00.

59480-10G02

$207.90

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.50

5

GUIDE, BRAKE HOSE

59541-10G00

Unavailable

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

7

CLAMP, FR BRAKE HOSE NO.1

59261-10G00

Unavailable

8

CLAMP, FR BRAKE HOSE NO.2

59266-35F10

Unavailable

9

CLAMP, FRONT BRAKE HOSE LH

59268-10G00

Unavailable

10

BOLT This part replaces 01547-06123.

01547-0612B

$1.25
