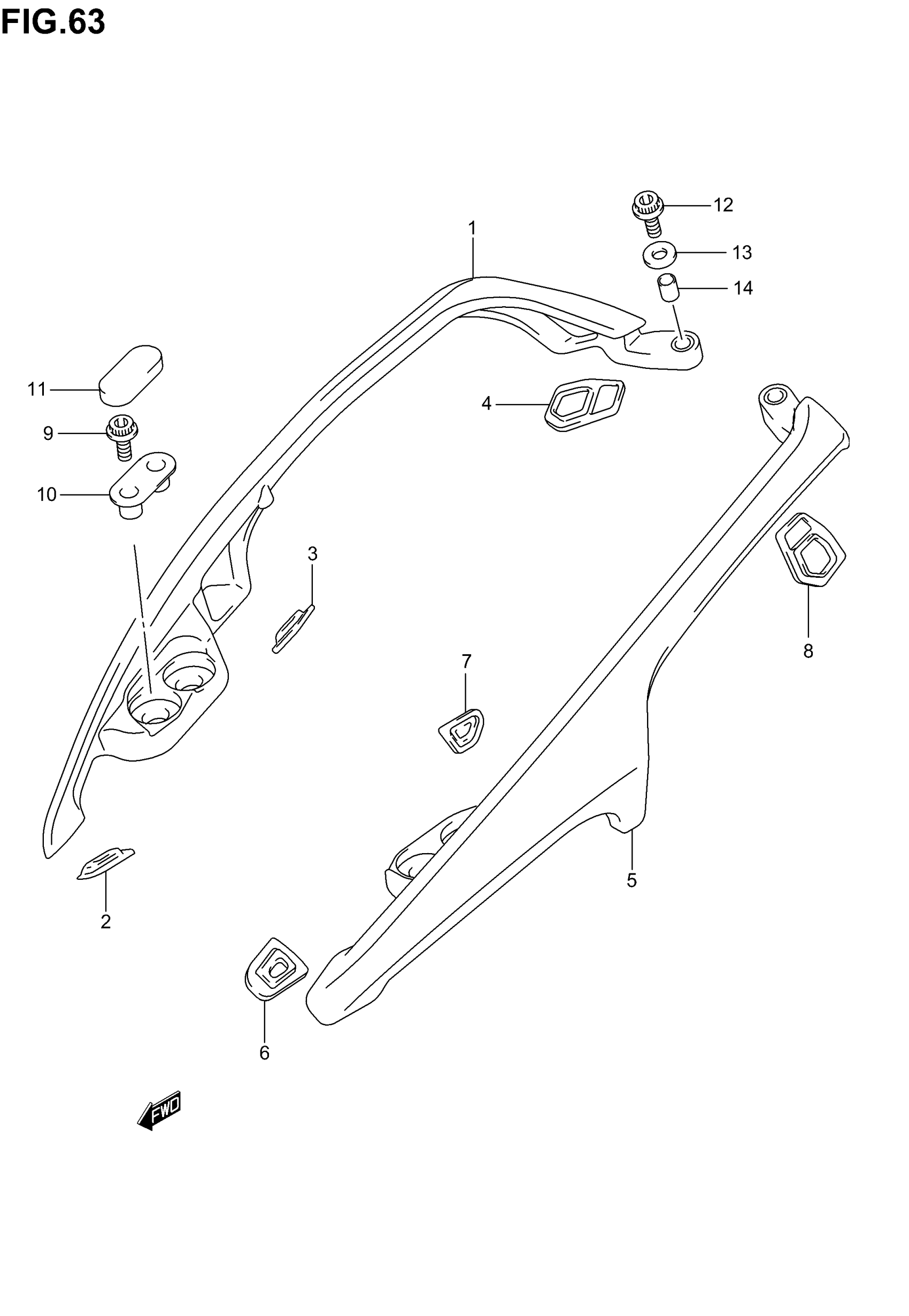

Suzuki AN650 (2005) PILLION RIDER HANDLE Diagram

#

Description
Price

1

HANDLE, PILLION RIDER RH (GREEN) | AN650K3

46210-10G01-YV4

Unavailable

1

HANDLE,PILLION | AN650K3/K4/K5 This part replaces 46210-10G01-YD8.

46210-10G04-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | AN650K3/K4 This part replaces 46210-10G01-Y7H.

46210-10G02-Y7H

Unavailable

1

HANDLE,PILLION | AN650K4 This part replaces 46210-10G01-YAY.

46210-10G04-YAY

Unavailable

1

HANDLE, PILLION RIDER, RH (BLUE) | AN650K5 This part replaces 46210-10G02-YBA.

46210-10G03-YBA

Unavailable

1

HANDLE,PILLION | AN650K5; Includes Item(s) 2 - 4 This part replaces 46210-10G02-YC3.

46210-10G04-YC3

Unavailable

2

CUSHION, PILLION HDL FR RH This part replaces 46261-10G00.

46261-10G10

$5.15

3

CUSHION, PILLION HDL CTR RH This part replaces 46271-10G00.

46271-10G10

$7.50

4

CUSHION, REAR RH

46281-10G01

Unavailable

5

NO DESCRIPTION AVAILABLE | AN650K3 This part replaces 46230-10G01-YV4.

46230-10G02-YV4

Unavailable

5

HANDLE,PILLION | AN650K3/K4/K5 This part replaces 46230-10G01-YD8.

46230-10G03-13L

Unavailable

5

NO DESCRIPTION AVAILABLE | AN650K3/K4 This part replaces 46230-10G01-Y7H.

46230-10G02-Y7H

Unavailable

5

HANDLE,PILLION | AN650K4 This part replaces 46230-10G01-YAY.

46230-10G03-YAY

Unavailable

5

HANDLE, PILLION RIDER LH (BLUE) | AN650K5

46230-10G02-YBA

Unavailable

5

HANDLE,PILLION | AN650K5; Includes Item(s) 6 - 8 This part replaces 46230-10G02-YC3.

46230-10G03-YC3

Unavailable

6

CUSHION, PILLION HDL FR LH This part replaces 46262-10G00.

46262-10G10

$7.28

7

CUSHION, PILLION HDL CTR LH This part replaces 46272-10G00.

46272-10G10

$6.20

8

CUSHION, REAR LH

46282-10G01

Unavailable

9

BOLT, FRONT

09106-08151

$3.70

10

WASHER, PILLION This part replaces 46290-10G00.

46290-10G01

Unavailable

11

CAP

46251-10G00

Unavailable

12

BOLT, REAR

09106-08151

$3.70

13

WASHER, REAR

09160-08127

$2.12

14

SPACER, REAR

09180-08138

$2.63
