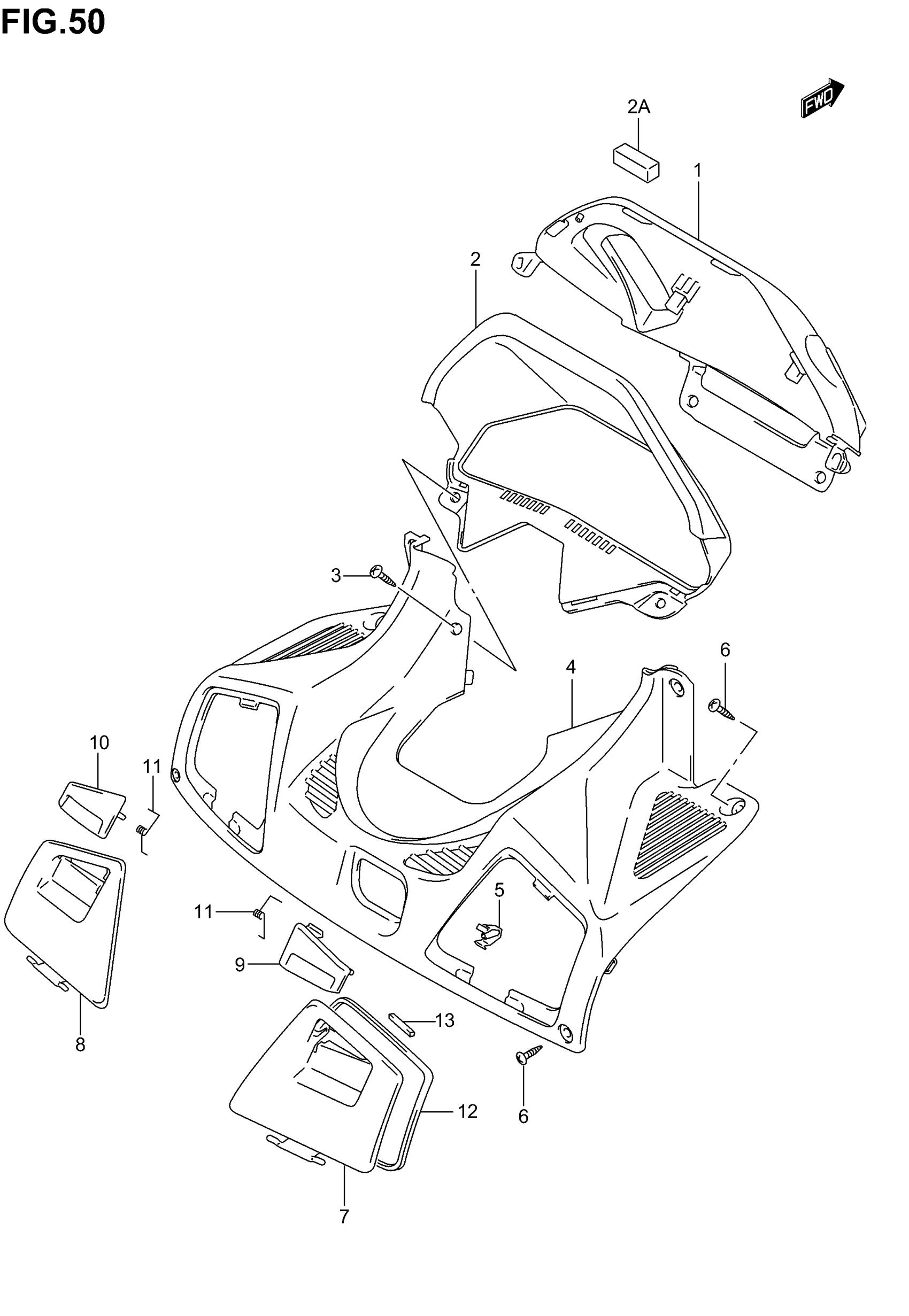

Suzuki AN650 (2005) METER PANEL (MODEL K3/K4) Diagram

#

Description
Price

1

PANEL, METER FRONT (GRAY)

94421-10G01-Y0J

$83.43

2

PANEL, METER REAR (GRAY) | Includes Item(s) 2A

94420-10G00-Y0J

$68.08

2A

CUSHION

94423-10G00

$8.43

3

SCREW, REAR PANEL

09122-66006

$3.08

4

PANEL, FRONT LOWER (GRAY)

94671-10G00-Y0J

$92.83

5

CLIP

09409-08326

$2.48

6

SCREW, LOWER PANEL

09132-05053

$2.28

7

LID, FRONT PANEL RH (GRAY)

92140-10G00-Y0J

Unavailable

8

LID, FRONT PANEL LH (GRAY) | Includes Item(s) 9 - 13

92150-10G00-Y0J

Unavailable

9

LOCK, PANEL RH (GRAY)

92143-10G00-Y0J

Unavailable

10

LOCK, PANEL LH (GRAY)

92153-10G00-Y0J

Unavailable

11

SPRING,FRONT PA This part replaces 92144-10G00.

92144-10G0V

Unavailable

12

CUSHION

92145-10G00

$7.05

13

CUSHION This part replaces 92146-10G00.

92145-10G00

$7.05
