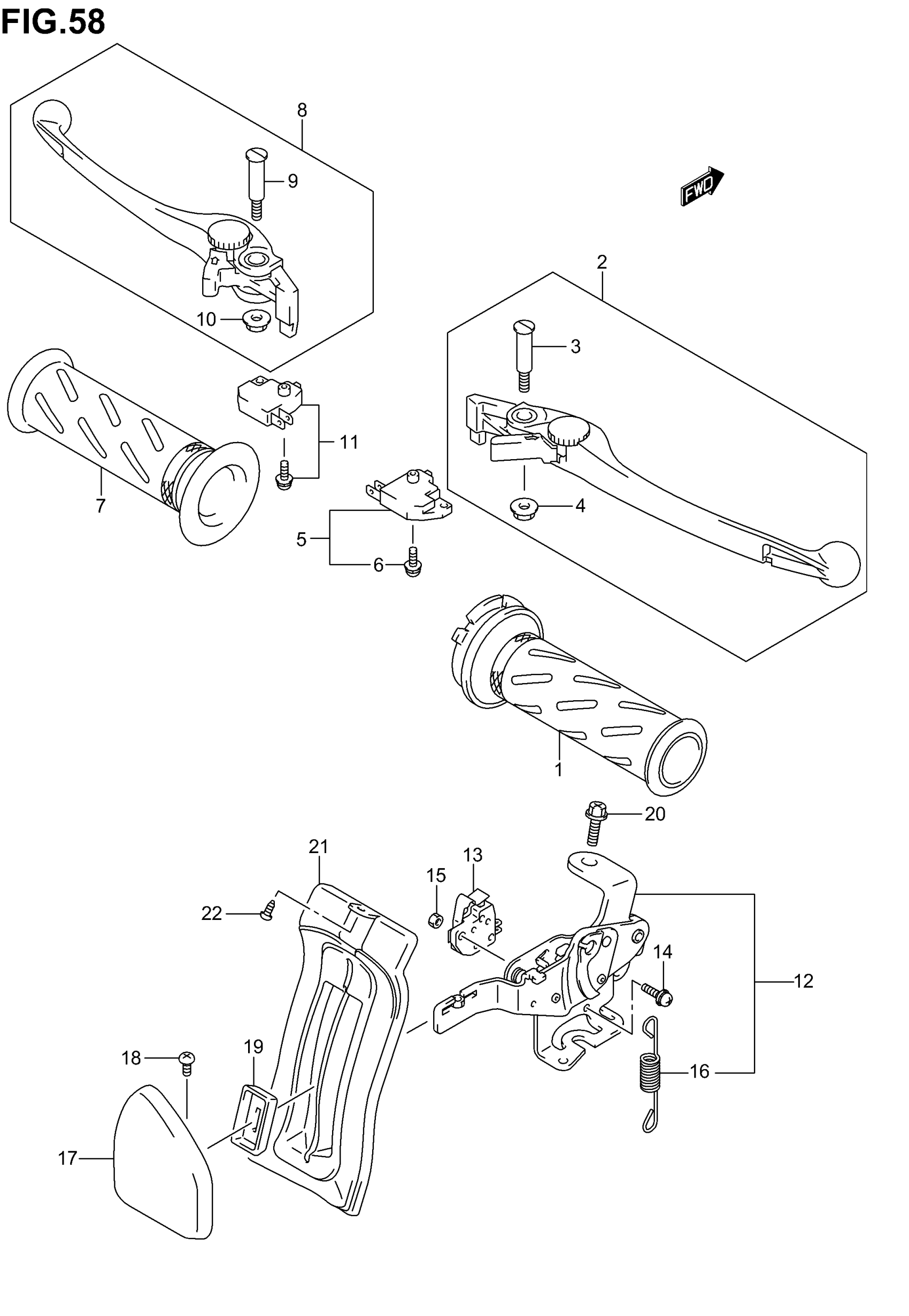

Suzuki AN650 (2005) HANDLE LEVER (MODEL K3/K4) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$29.06

2

LEVER ASSY, FRONT BRAKE | Includes Item(s) 3 - 4

57300-33E01

$48.61

3

BOLT, PIVOT

57431-17C00

$7.11

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | MODEL K3 This part replaces 57460-17C00.

57460-14J02

$38.46

5

SWITCH ASSY,FR BRAKE | MODEL K4; Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$14.55

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 10

57500-10G00

$48.55

9

BOLT, PIVOT

57431-17C00

$7.11

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

SWITCH ASSY | MODEL K3 This part replaces 57560-14F00.

57560-14F01

$29.90

11

SWITCH ASSY,RR BRAKE | MODEL K4 This part replaces 57560-14F11.

57560-14J02

$38.66

12

LEVER ASSY, BRAKE LOCK | Includes Item(s) 13 - 16 This part replaces 57800-10G00.

57800-10G01

Unavailable

13

SWITCH ASSY,FR BRAKE | MODEL K3 This part replaces 57460-17C00.

57460-14J02

$38.46

13

SWITCH ASSY,FR BRAKE | MODEL K4 This part replaces 57460-17C01.

57460-14J02

$38.46

14

SCREW

57852-10G00

Unavailable

15

NUT

57853-10G00

Unavailable

16

SPRING, RETURN

57804-10G00

Unavailable

17

KNOB, BRAKE LOCK

57820-10G00

$41.88

18

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

19

COVER, KNOB

57831-10G00

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

PLATE, LEVER SEAL

57950-10G00

Unavailable

22

SCREW This part replaces 03512-05123.

03511-0512A

$1.80
