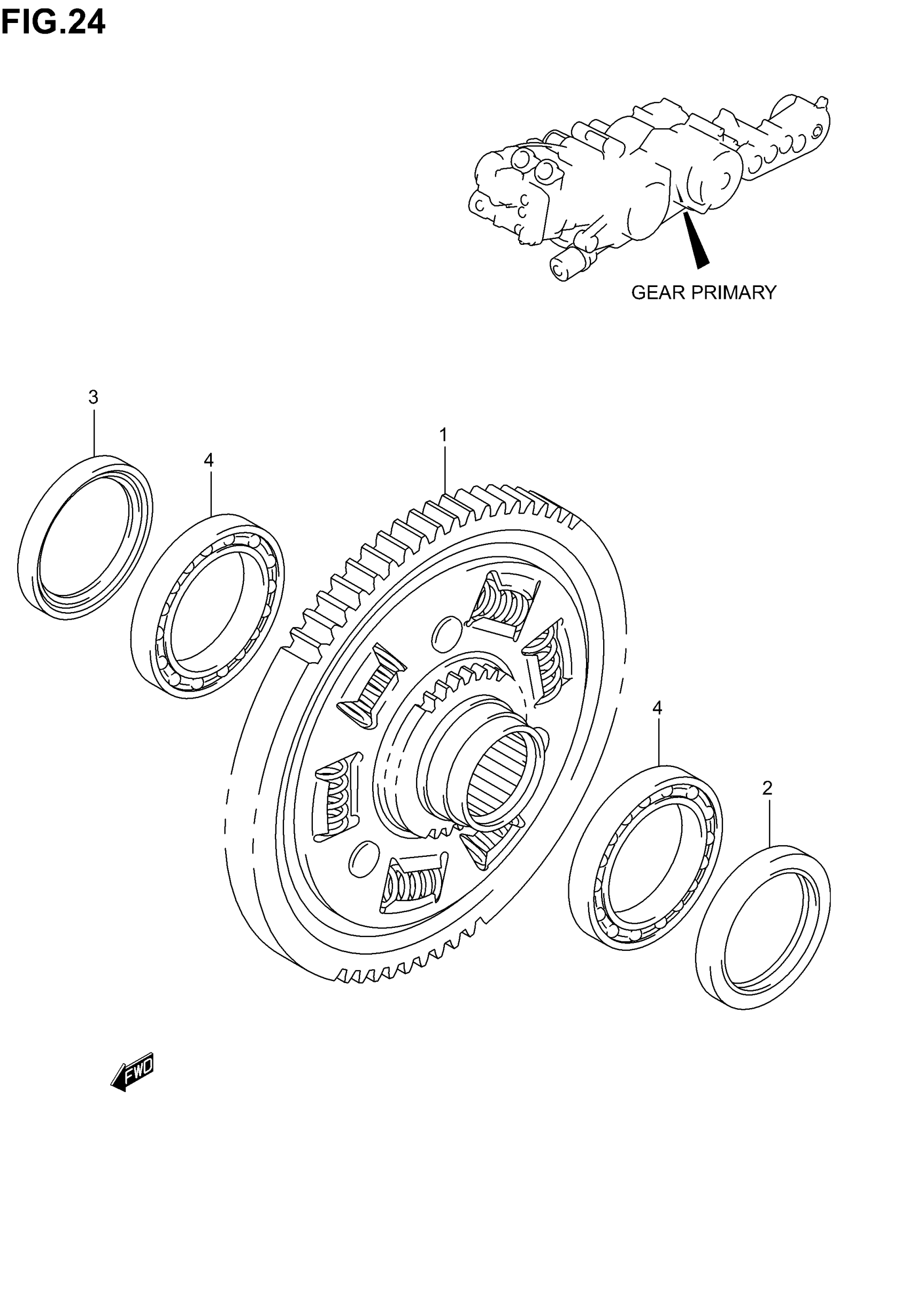

Suzuki AN650 (2005) GEAR PRIMARY Diagram

#

Description

Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL K3/K4 NT:88/34/36

21200-10G00

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL K5 NT:88/34/24 This part replaces 21200-10G10.

21200-10G20

Unavailable

2

OIL SEAL (44X62X7) | 44X62X7 This part replaces 09283-44012.

09283-44018

$16.95

3

OIL SEAL, PRIMARY DRIVEN RH | 44X62X7

09283-44013

$18.18

4

BEARING, PRIMARY DRIVEN | 45X68X9.5

09262-45015

$96.12
