Description

Price

1

WHEEL, FRONT (15M/CXMT3.50) (SILVER)

54111-10G10-YD8

$891.47

2

SPACER, HUB (18X22.2X113.5)

54731-10G00

$23.47

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

SEAL, OIL, 24X40X7

09282-24004

$6.57

5

SEAL, OIL, L, 22X40X7

09285-22004

$6.02

6

AXLE, FRONT | AN650K4

54711-10G00

Unavailable

6

AXLE, FRONT | AN650K5

54711-10G10

$128.72

7

SPACER, FR AXLE RH

54751-10G01

$17.90

8

DISC, FRONT BRAKE RH

59211-10G10

$303.63

9

BOLT, DISC

09106-08160

$3.57

10

TIRE,FRONT,120/ This part replaces 55110-10G00.

55110-10G01

$295.70

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL (10G)

43222-73H10

$5.82

12

BALANCER, WHEEL (20G)

43224-73H10

$5.50

12

BALANCER, WHEEL (30G)

43226-73H10

$6.42

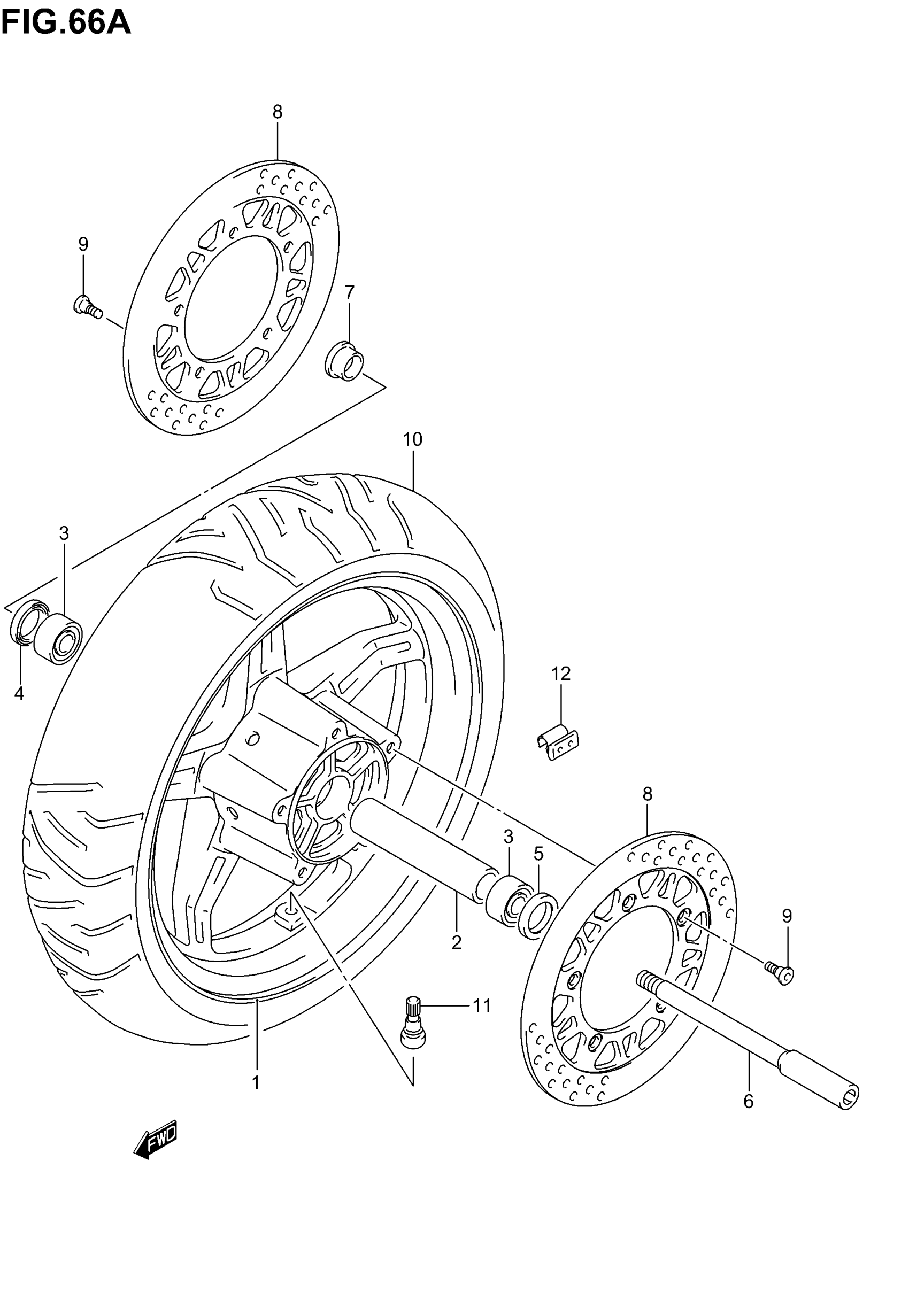

Suzuki AN650 (2005) FRONT WHEEL (AN650K4/K5) Diagram
