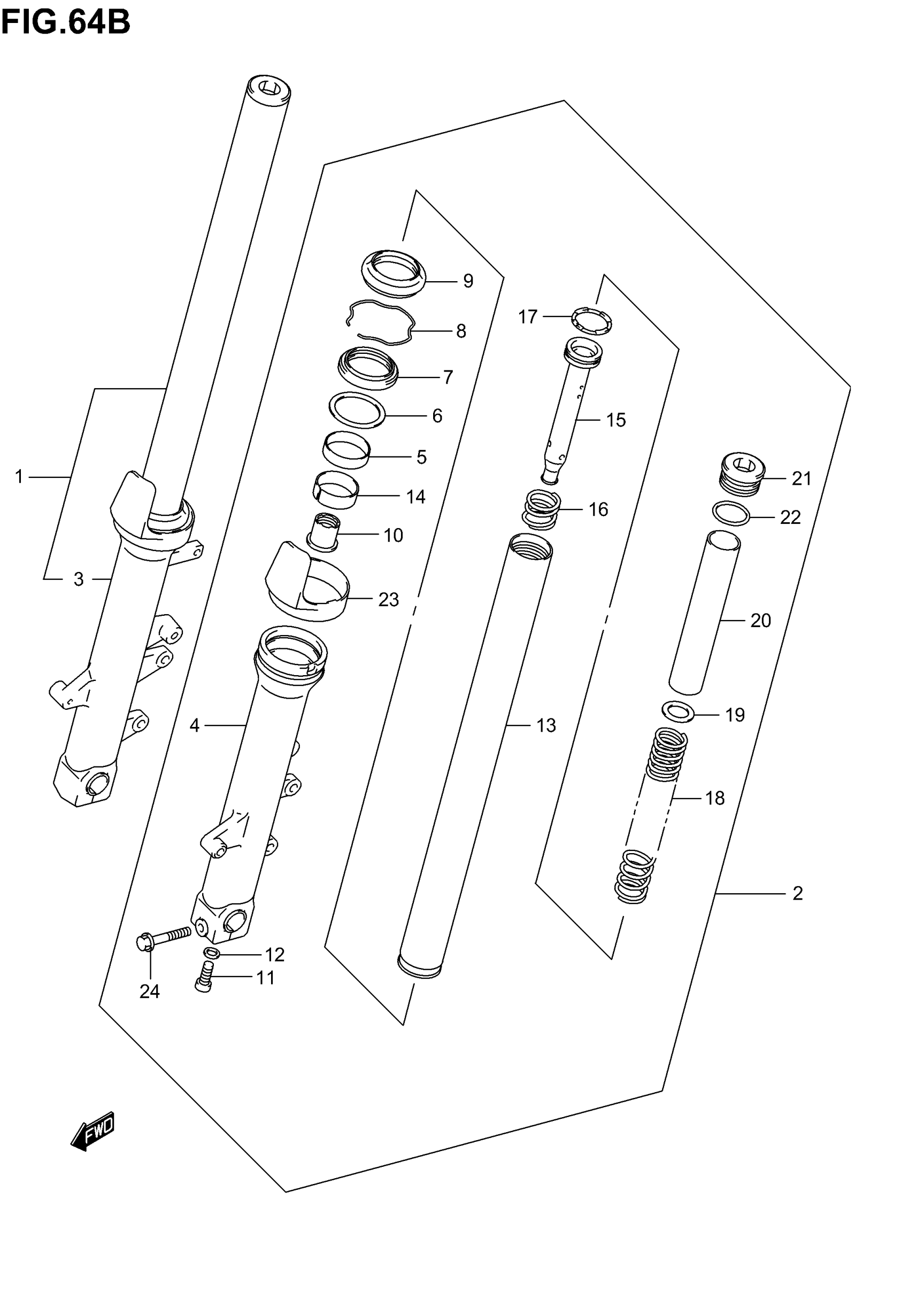

Suzuki AN650 (2005) FRONT FORK DAMPER (MODEL K5) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-10G50

Unavailable

2

DAMPER ASSY,FR | Includes Item(s) 3 - 24 This part replaces 51104-10G50.

51104-10G51

$731.93

3

TUBE, OUTER RH

51130-10G10

Unavailable

4

TUBE, OUTER LH

51140-10G10

Unavailable

5

METAL, SLIDE

51167-26E10

$24.52

6

WASHER

51158-05A00

$5.83

7

SEAL, OIL

51153-10G50

$20.70

8

RING, SNAP

51156-49440

$5.05

9

SEAL, DUST

51173-14F00

$23.07

10

PIECE, OIL LOCK

51195-33D10

$26.20

11

BOLT

51147-16510

$4.34

12

GASKET

51148-41310

$2.26

13

TUBE, INNER

51110-10G00

$392.77

14

PISTON

51121-33D10

$18.90

15

CYLINDER

51146-10G10

Unavailable

16

SPRING, REBOUND

51177-10G10

Unavailable

17

RING, PISTON

51196-31F00

$7.05

18

SPRING, FRONT

51171-10G10

$73.20

19

WASHER

51356-10D03

$7.50

20

SPACER

51176-10G10

Unavailable

21

CAP

51351-10G10

Unavailable

22

O RING

09280-32001

$2.06

23

PROTECTOR

51201-31F00

Unavailable

24

BOLT, AXLE STOPPER This part replaces 51166-10G00.

51166-10G10

$5.38
