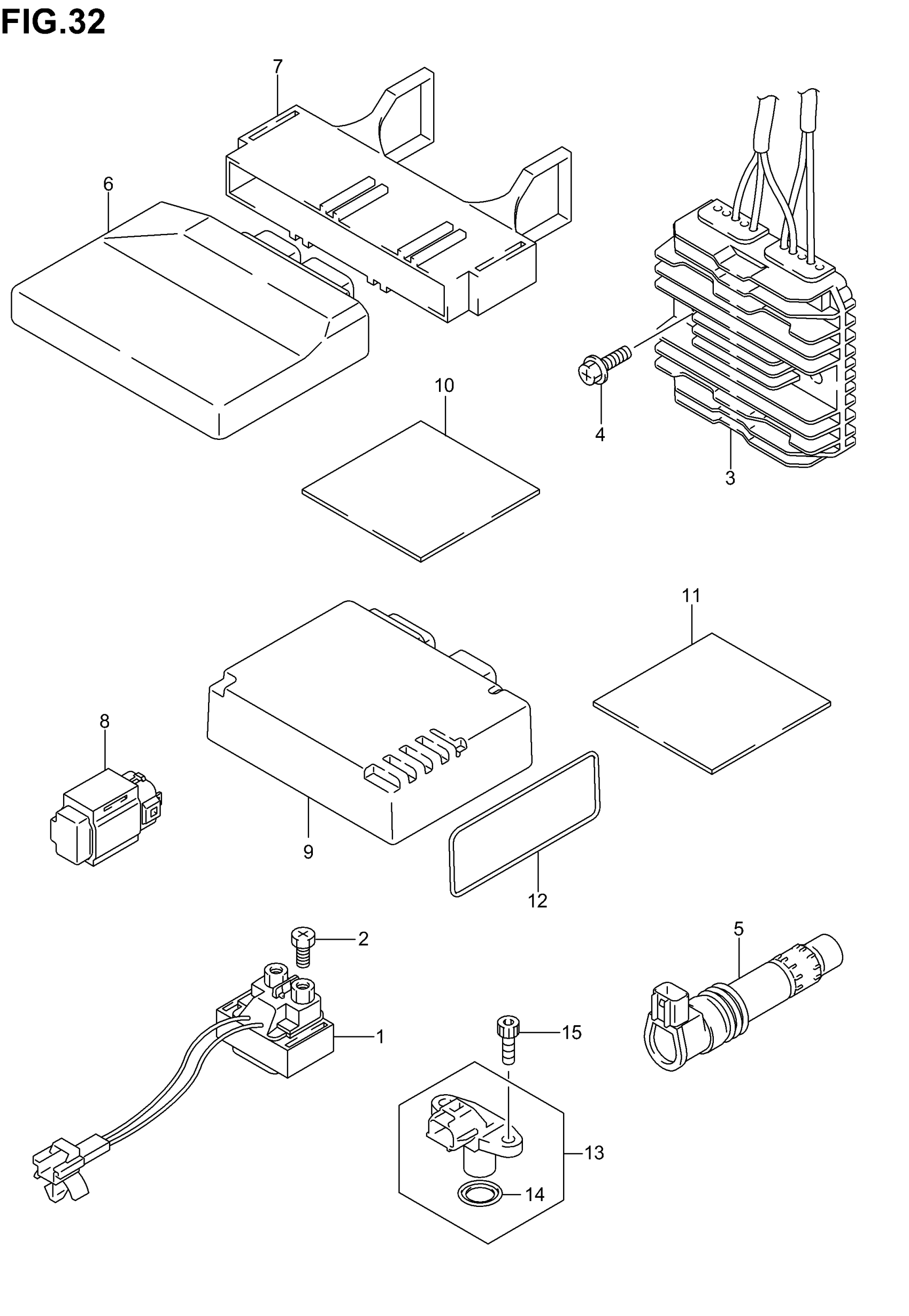

Suzuki AN650 (2005) ELECTRICAL (MODEL K3/K4) Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$67.77

2

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY This part replaces 32800-10G00.

32800-10G20

$271.06

4

SCREW This part replaces 02162-06253.

02162-0625A

$1.78

5

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$142.65

6

NO DESCRIPTION AVAILABLE | MODEL K3 This part replaces 32920-10G10.

32920-10G11

Unavailable

6

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 32920-10G60.

32920-10G61

Unavailable

7

HOLDER, FI UNIT

32980-10G00

Unavailable

8

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

9

CONTROL UNIT, CVT | MODEL K3

32910-10G10

Unavailable

9

CONTROL UNIT, CVT | MODEL K4

32910-10G60

Unavailable

10

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (30X25)

33651-37000

$4.48

11

PROTECTOR (80X80X2) | CUT AS REQUIRED PROFILE (30X80)(20X40)

33652-07D00

$5.64

12

BAND, CVT CONTROL UNIT | D:3.5,ID:65.2

09280-57002

$2.50

13

SENSOR ASSY, CAM POSITION | Includes Item(s) 14

32160-02F10

$150.35

14

PACKING

32161-02F00

$9.72

15

BOLT This part replaces 07130-06163.

07130-0616B

$2.39
