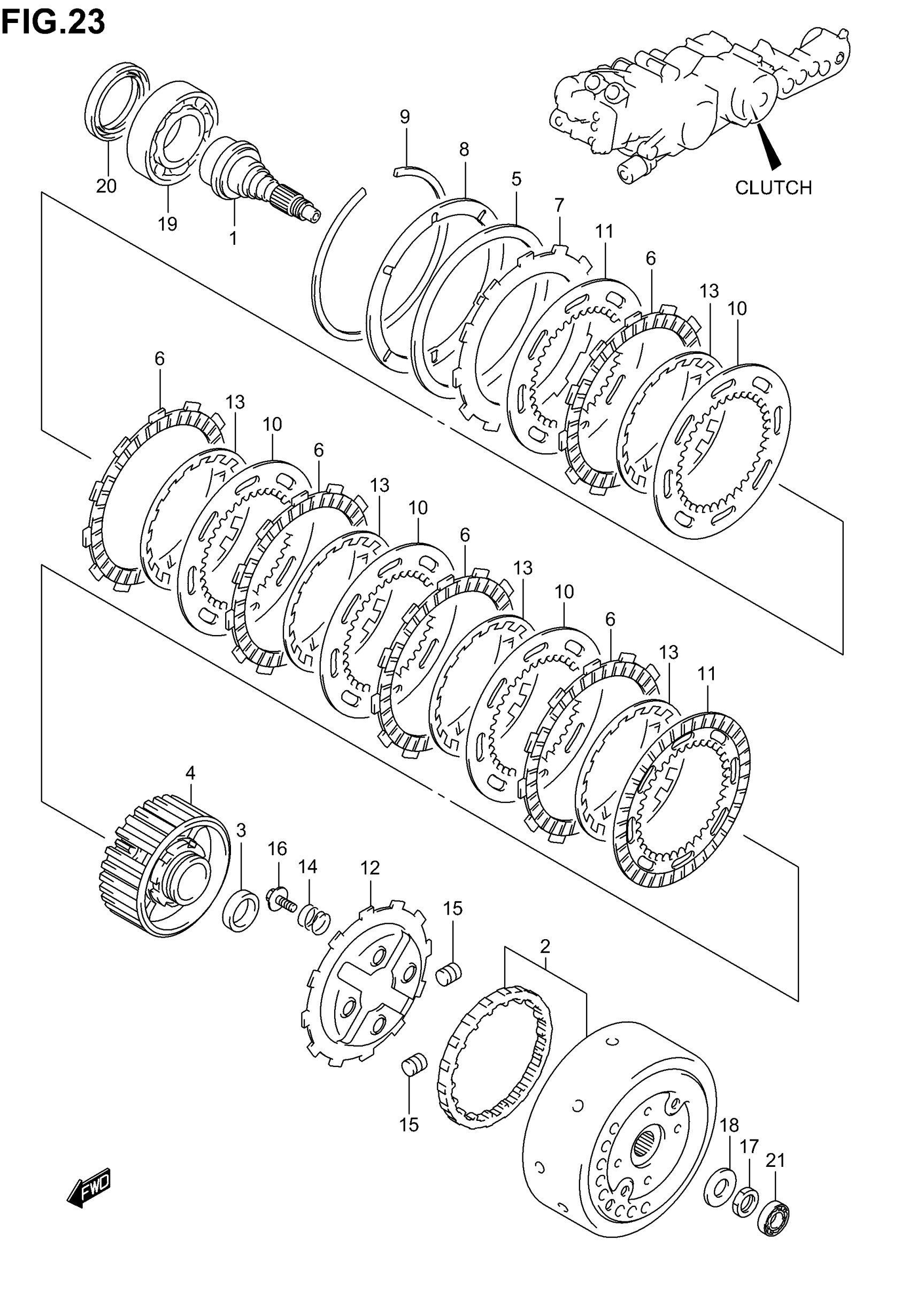

Suzuki AN650 (2005) CLUTCH Diagram

#

Description
Price

1

SHAFT, CLUTCH | NT:42

21421-10G00

Unavailable

2

HOUSING SET, CLUTCH | MODEL K3/K4

21221-10820

Unavailable

2

HOUSING SET, CLUTCH | MODEL K5

21221-10830

$334.77

3

SPACER, CLUTCH HOUSING

21222-10G00

Unavailable

4

GEAR SET, HUB CLUTCH | MODEL K3/K4 This part replaces 21321-10810.

21321-10811

Unavailable

4

GEAR SET, HUB CLUTCH | MODEL K5

21321-10811

Unavailable

5

WASHER, CLUTCH SPRING WAVE

21412-10G00

$50.63

6

PLATE, CLUTCH DRIVE

21441-24F00

$22.90

7

PLATE, CLUTCH DRIVE OUTER

21443-10G00

$28.75

8

SEAT, CLUTCH SPRING

21446-10G00

$20.42

9

CIRCLIP, CLUTCH OUTER

21447-10G00

$9.07

10

PLATE, CLUTCH DRIVEN

21451-10G10

$16.01

11

PLATE, CLUTCH DRIVEN

21452-10G10

$29.32

12

PLATE, CLUTCH INNER

21465-10G00

$37.98

13

WASHER, CLUTCH PLATE

21472-10G10

$19.58

14

SPRING, CLUTCH REACTION

21512-10G00

$6.44

15

ROLLER, CLUTCH

21650-10G00

$15.53

16

BOLT, CLUTCH REACTION (5X16)

09116-05020

$2.03

17

NUT, CLUTCH HOUSING

09140-18016

$6.70

18

WASHER, CLUTCH HOUSING | 18X30X2.5

09160-18033

$3.50

19

BEARING, CLUTCH SHAFT RH | 50X72X12

09262-50003

Unavailable

20

SEAL, CLUTCH SHAFT | 50X64X7

09283-50009

$16.35

21

BEARING This part replaces 08123-63017.

08123-6301B

$14.10
