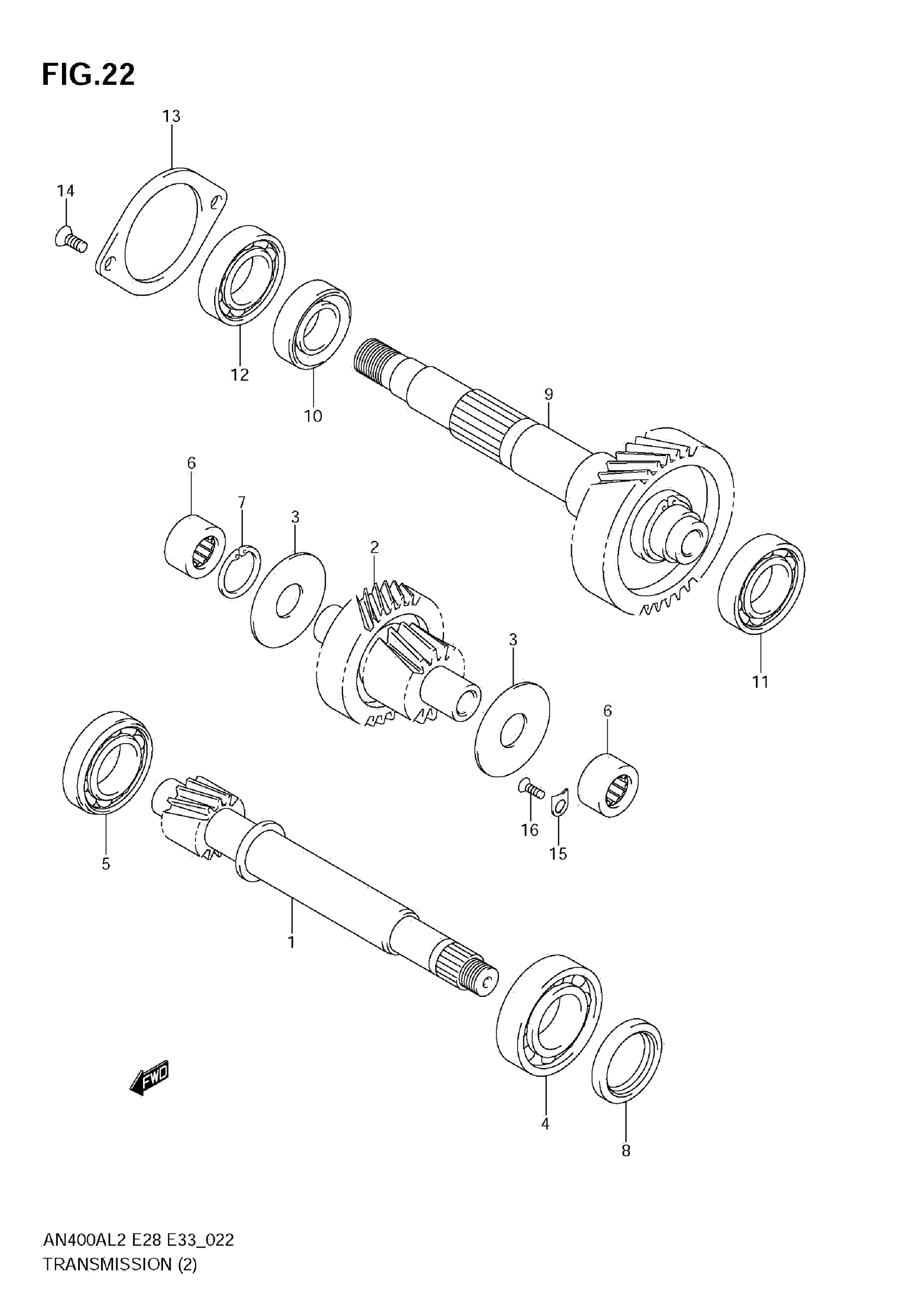

Suzuki AN400ZAL2 (2012) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, DRIVE (NT:14)

24131-05H00

$190.22

2

SHAFT, IDLE (NT:14)

24150-05H10

$181.23

3

WASHER (20X50X2)

09160-20077

$13.87

4

BEARING | LH

08113-52050

$90.42

5

BEARING (20X52X15) | RH

09262-20073

$21.00

6

BEARING (20X34X18)

09263-20062

$51.07

7

CIRCLIP

08331-41349

$3.05

8

OIL SEAL (25X37X6)

09283-25097

$13.32

9

SHAFT, REAR AXLE

24140-06H10

$291.67

10

OIL SEAL (38X52X7)

09283-38019

$20.02

11

BEARING (25X62X17) | LH

09262-25084

$42.50

12

BEARING | RH This part replaces 08130-63067.

08130-6306B

$51.73

13

RETAINER, AXLE SHAFT

24751-14F10

$18.92

14

SCREW

02122-0616A

$1.43

15

RETAINER, IDLE SHAFT, LH

24742-44B00

$3.86

16

SCREW

02122-0616A

$1.43
