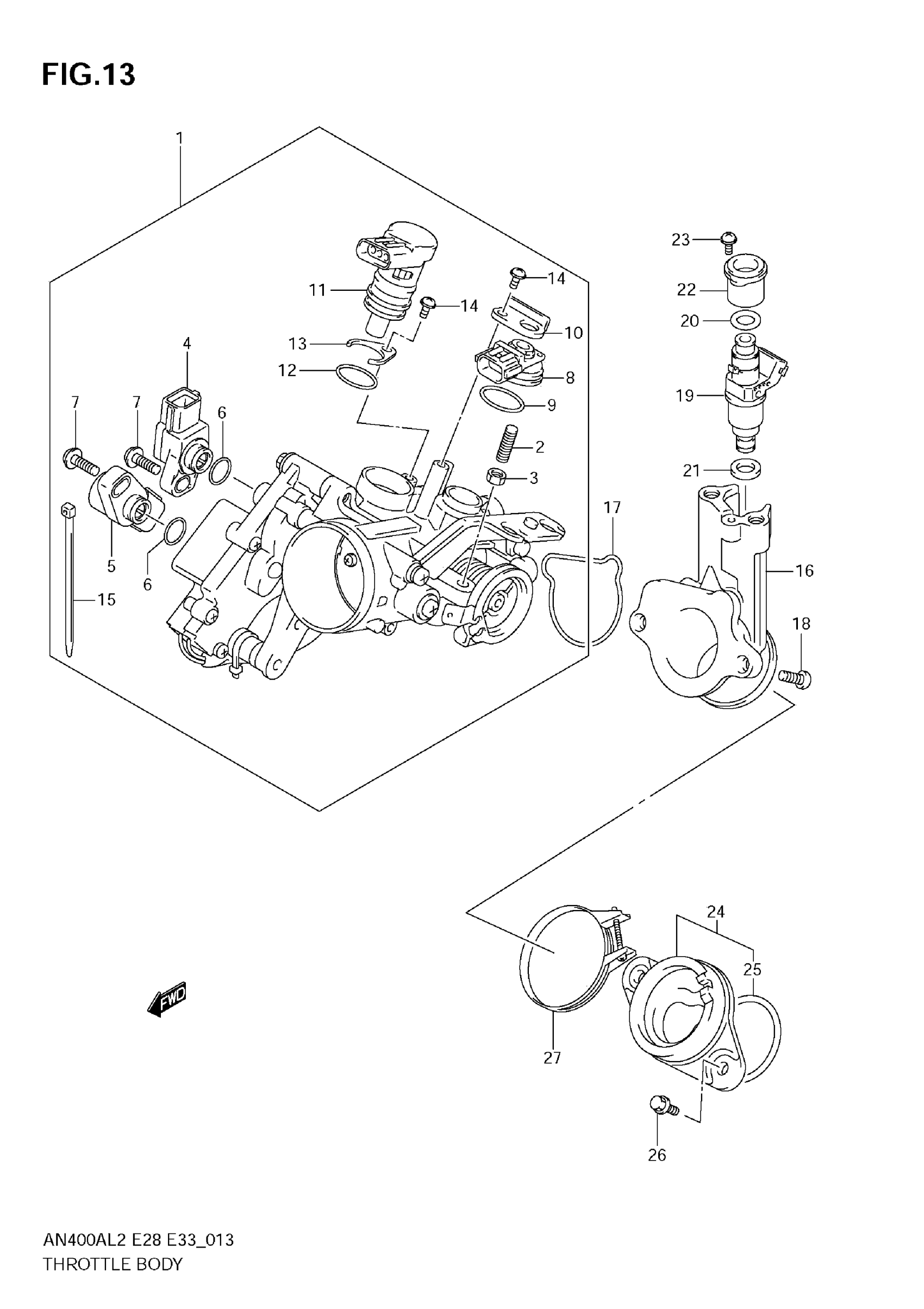

Suzuki AN400ZAL2 (2012) THROTTLE BODY (AN400ZA L2 E28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13401-05H21

Unavailable

2

SCREW

13267-14G10

Unavailable

3

NUT

13661-14G10

Unavailable

4

SENSOR ASSY, MAIN

13580-18G00

$205.80

5

SENSOR ASSY, SUB

13580-05H01

$268.93

6

O RING

13575-40F00

$4.09

7

SCREW

13605-40F00

$3.71

8

SENSOR, MAP

15620-05H00

$273.45

9

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

10

PLATE

15622-05H00

Unavailable

11

.VALVE, ISC This part replaces 18117-05H21.

18117-05H22

$260.10

12

O RING

18119-05H00

$3.95

13

PLATE

13428-06F30

$6.47

14

SCREW

02112-14087

$2.38

15

CLAMP (L:145)

09407-14407

$3.57

16

INTAKE PIPE

13111-05H00

$293.10

17

.O RING

13278-05H00

$13.35

18

BOLT

13612-14G00

$2.42

19

INJECTOR ASSY

15710-05H01

$333.68

20

O-RING

15721-10G00

$9.09

21

RING

15722-45G00

$13.23

22

COVER

13473-14G00

$14.77

23

SCREW

13601-14G00

$3.03

24

PIPE ASSY,INTAKE This part replaces 13101-05H00.

13101-05H01

$51.63

25

O RING (D:2.4,ID:41.7)

09280-42003

$8.65

26

BOLT (6X16)

09119-06092

$2.38

27

CLAMP

13170-39H00

Unavailable
