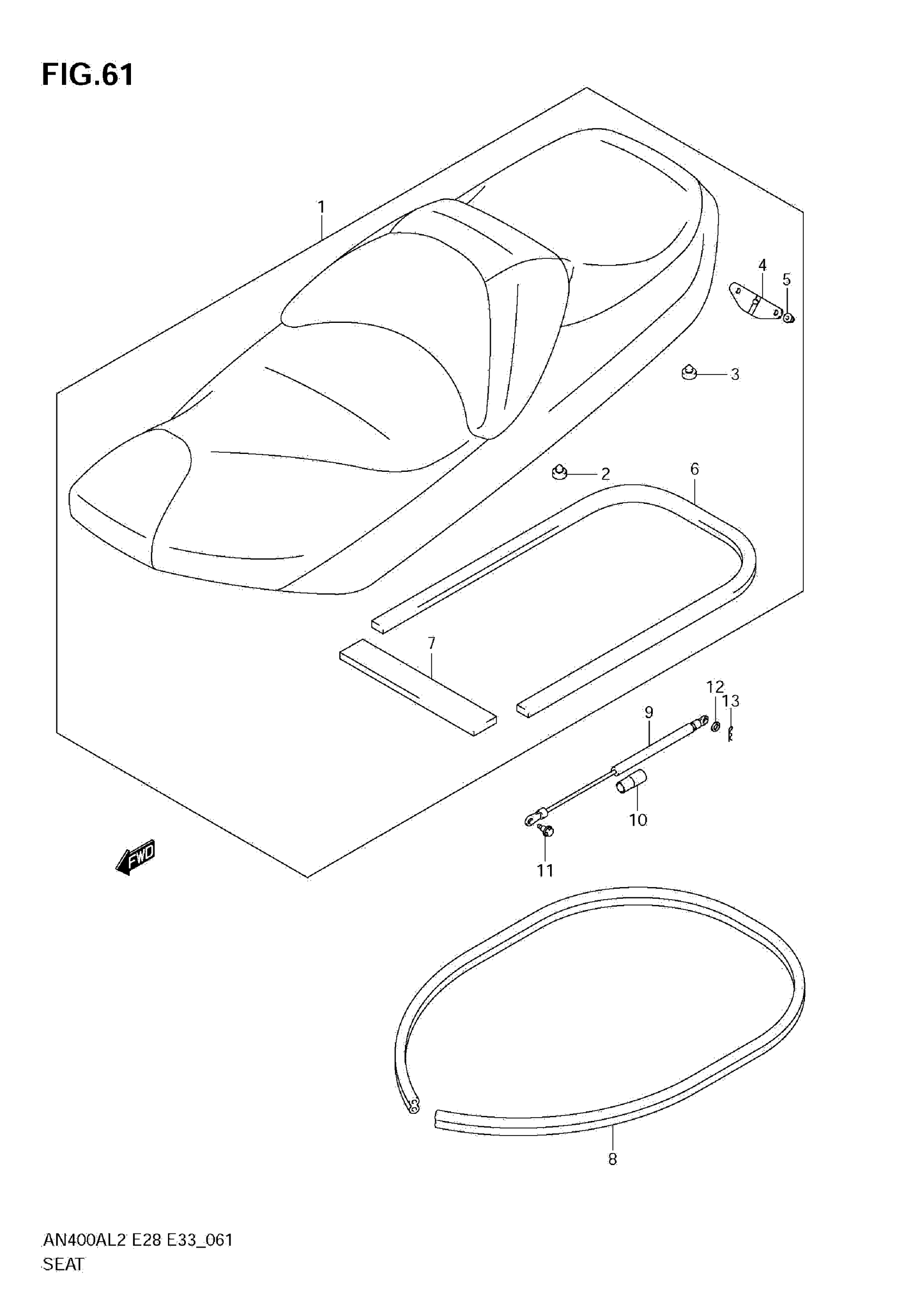

Suzuki AN400ZAL2 (2012) SEAT Diagram

#

Description
Price

1

SEAT ASSY(BLACK This part replaces 45100-05H07-FC8.

45100-05H08-FC8

$1,074.65

2

CUSHION

09321-10011

$2.91

3

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

4

STRIKER, SEAT LOCK

45210-05H03

$27.85

5

NUT

08313-2006A

$1.97

6

CUSHION, SEAT

45148-05H10

Unavailable

7

CUSHION, SEAT

45149-05H10

Unavailable

8

MOLDING, SEAT

45211-05H00

Unavailable

9

DAMPER ASSY, SEAT

45270-05H01

$124.58

10

HOSE (13.5X16.5X600) | L:600->40

09352-13162-600

$24.87

11

BOLT (6X16)

09111-06071

$4.90

12

WASHER

08322-0108A

$1.92

13

SNAP

09385-08003

$1.72
