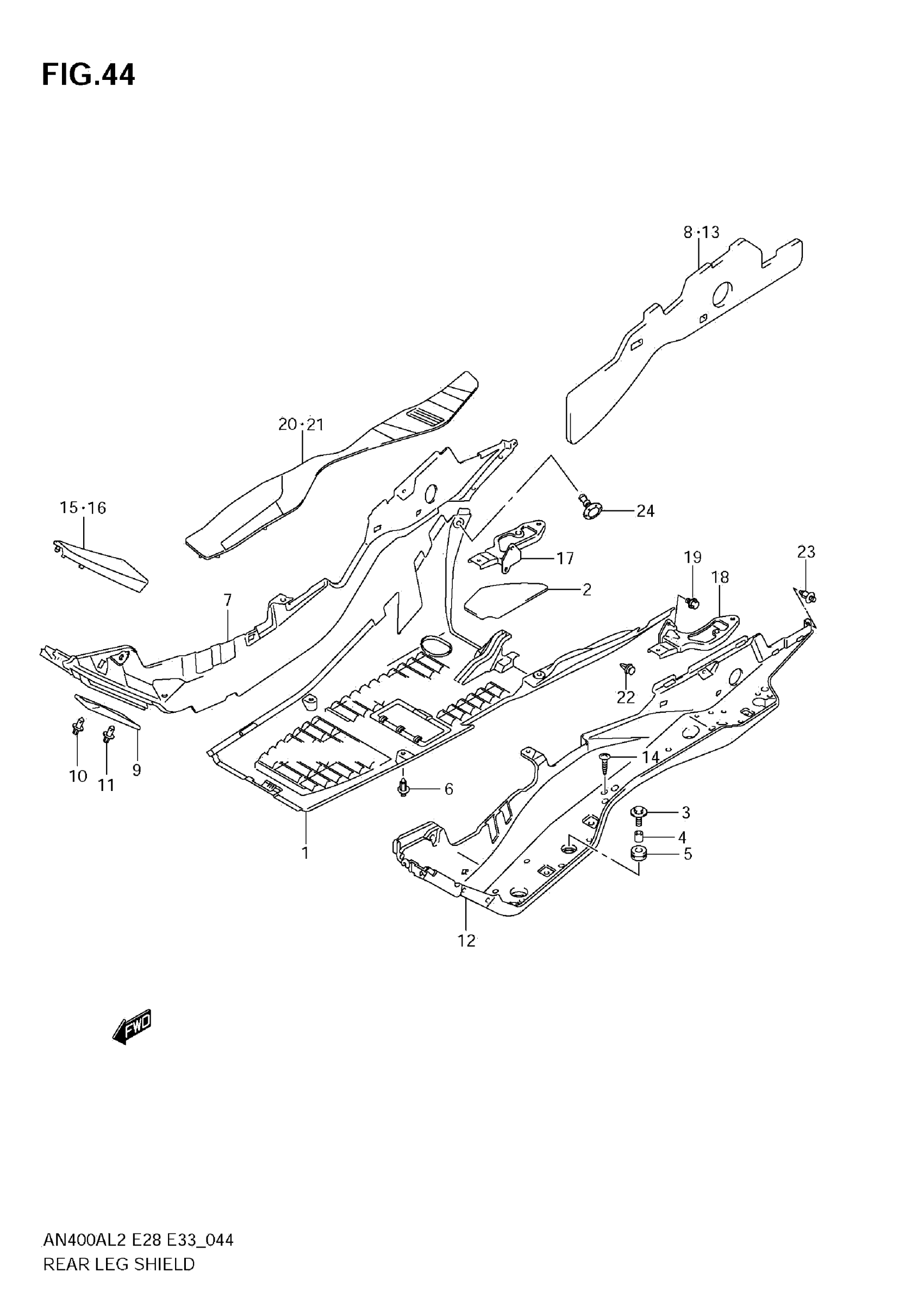

Suzuki AN400ZAL2 (2012) REAR LEG SHIELD Diagram

#

Description
Price

1

COVER, UNDER CENTER

48138-05H02

$193.45

2

CUSHION, UNDER COVER

48183-05H00

Unavailable

3

BOLT (6X25)

09116-06131

$2.36

4

SPACER (8.5X12X11)

09180-08189

$2.58

5

CUSHION

09320-11020

$5.10

6

CLIP (BLACK)

09409-06322-5PK

$3.10

7

FOOT BOARD, RH (BLACK)

48121-05H01-5PK

$122.85

8

CUSHION, FOOTBOARD RH

48124-05H00

Unavailable

9

COVER, RH

48123-05H00

Unavailable

10

CLIP (BLACK)

09409-06314-5PK

$2.78

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

FOOT BOARD, LH (BLACK)

48122-05H00-5PK

$142.80

13

CUSHION, FOOTBOARD LH

48125-05H00

Unavailable

14

SCREW

03541-0516A

$1.49

15

MAT,FLOOR FR RH This part replaces 48211-05H00-291.

48211-05HA0-291

$23.07

16

MAT,FLOOR FR LH This part replaces 48221-05H00-291.

48221-05HA0-291

$27.72

17

BRACKET, PILLION RH

43650-05H00

Unavailable

18

BRACKET, PILLION LH

43750-05H00

Unavailable

19

BOLT

01550-0612A

$1.97

20

MAT,FLOOR RR,R This part replaces 48231-05H00-291.

48231-05HA0-291

$51.15

21

MAT,FLOOR RR LH This part replaces 48241-05H00-291.

48241-05HA0-291

$51.15

22

CLIP

09409-07333

$2.31

23

CLIP (BLACK)

09409-06314-5PK

$2.78

24

CLIP

94479-35F00

$5.62
