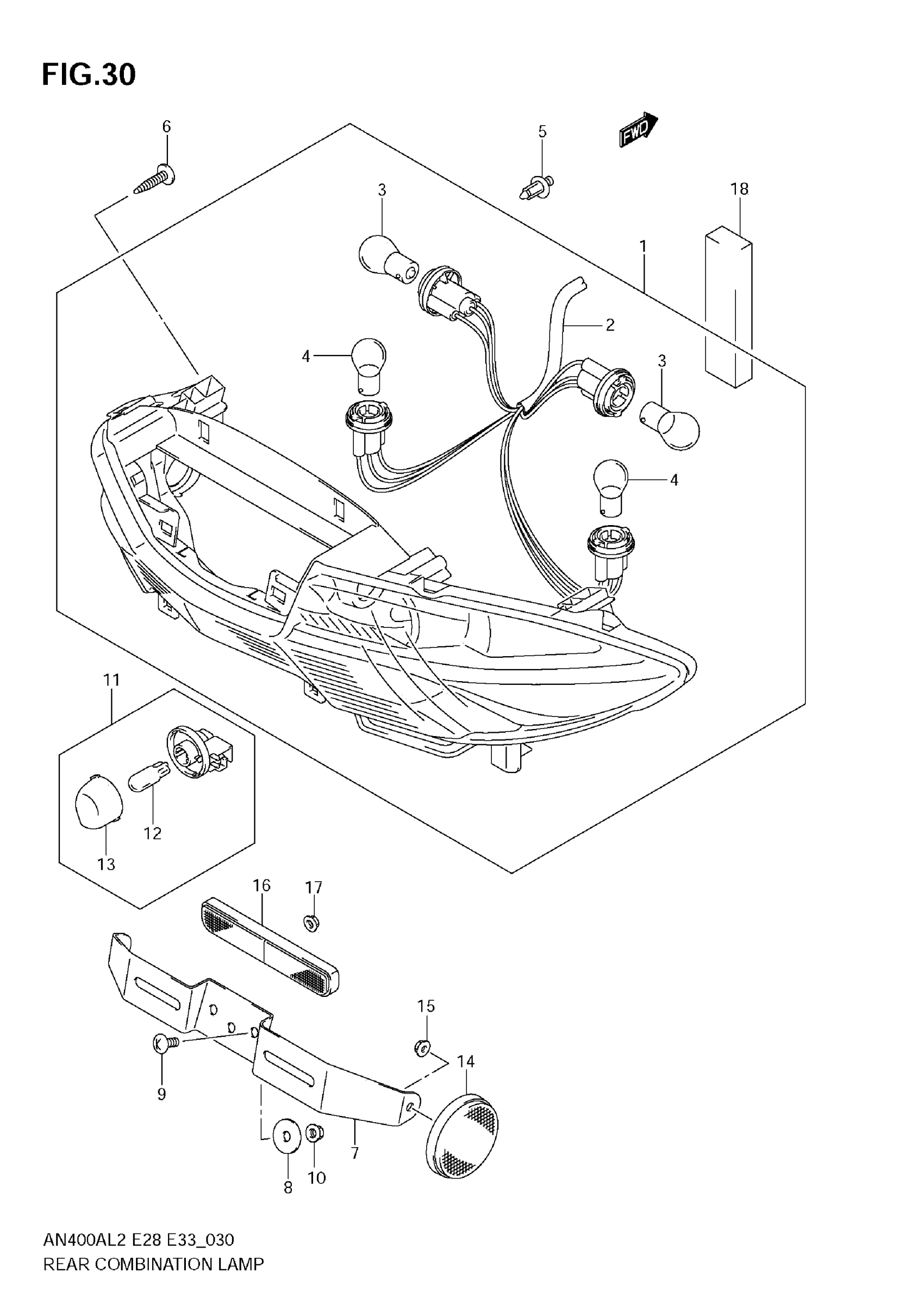

Suzuki AN400ZAL2 (2012) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-05H00

$609.12

2

SOCET & CORD

35718-05H00

$71.38

3

BULB (12V21W)

09471-12186

$12.66

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

SCREW

03541-0516A

$1.49

7

PLATE, LICENSE

35927-05H00

Unavailable

8

WASHER (6.5X24X1.2)

09160-06114

$2.03

9

SCREW

02142-0616A

$1.49

10

NUT

08316-1006A

$2.19

11

LAMP ASSY, LICENSE

35910-14F01

$30.22

12

.BULB (12V5W)

09471-12216

$5.36

13

LENS

35912-14F11

$8.28

14

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

15

NUT

08316-1005B

$2.50

16

REFLECTOR ASSY, REAR

35970-05H00

$29.33

17

NUT

08313-2005B

Unavailable

18

CUSHION, REAR COMB(15X70X20)

33652-05H00

Unavailable
