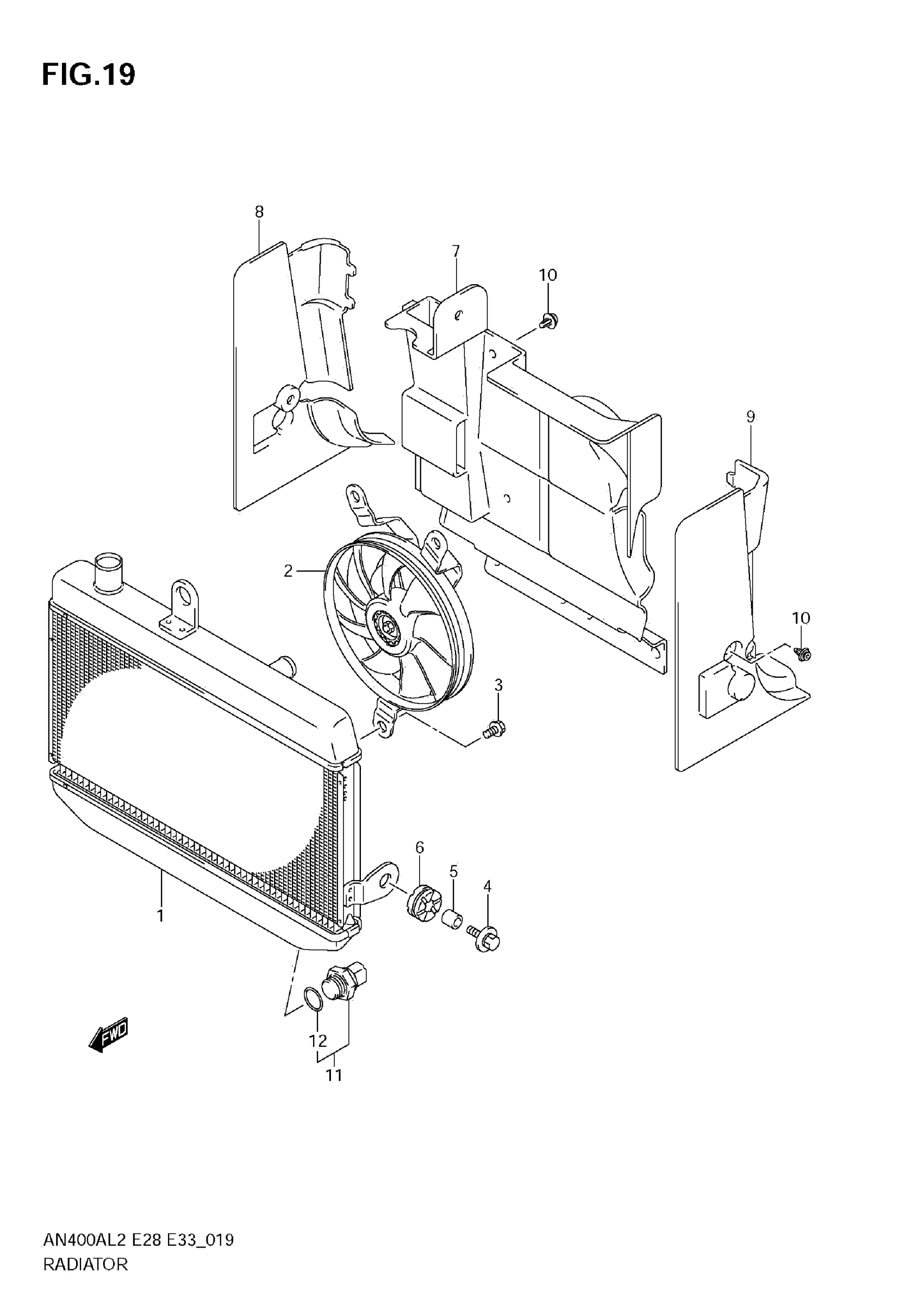

Suzuki AN400ZAL2 (2012) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-05H00

Unavailable

2

FAN ASSY, RADIATOR

17800-05H00

$470.62

3

BOLT

17711-40F00

$5.58

4

BOLT (6X25)

09118-06097

$2.50

5

SPACER (6.5X10X12)

09180-06290

$2.35

6

CUSHION

09320-10051

$2.99

7

SHIELD, HEAT CENTER

17771-05H00

Unavailable

8

SHIELD,RADIATOR HEAT RH

17772-05H00

Unavailable

9

SHIELD, HEAT LH

17773-05H00

Unavailable

10

CLIP

09409-06313

$2.92

11

SWITCH COMP,FAN This part replaces 17680-50F10.

17680-50F11

$78.18

12

O RING

17689-50F00

$2.53
