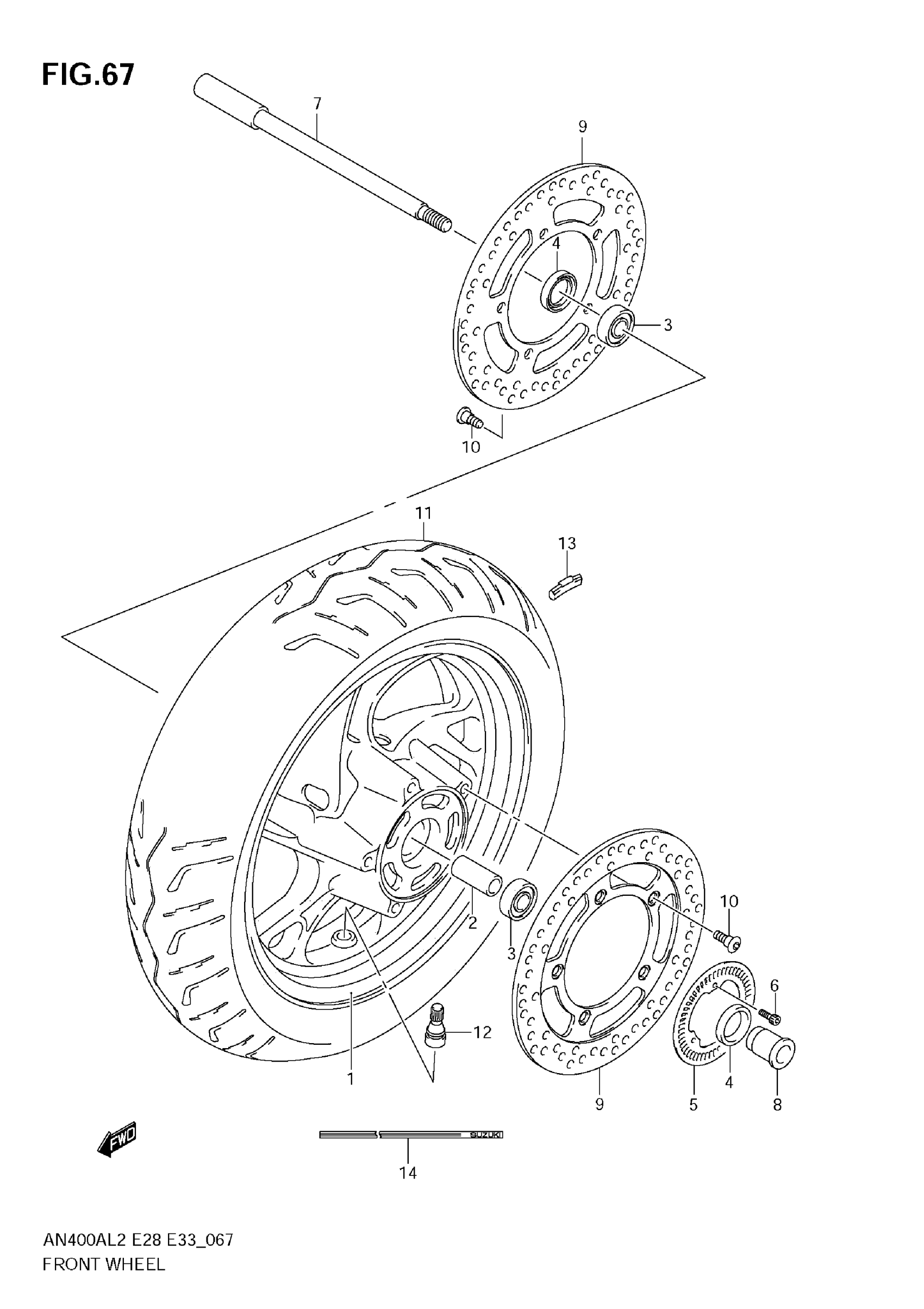

Suzuki AN400ZAL2 (2012) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (14M/CXMT3.00) (BLACK)

54111-05H10-019

$1,015.88

2

SPACER (15.3X21.7X100)

09180-15070

$20.13

3

BEARING

08123-62027

$18.57

4

SEAL,OIL This part replaces 09285-22005.

09285-22007

$7.05

5

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

6

BOLT

07130-0512A

$2.19

7

AXLE,FRONT

54711-05H00

Unavailable

8

SPACER, FRONT AXLE, L

54751-14F00

$21.35

9

DISC, FRONT BRAKE

59221-14G30

Unavailable

10

BOLT (8X21)

09106-08160

$3.57

11

TIRE, FRONT | 120/80-14M/C 58S

55110-05H00

Unavailable

12

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

13

BALANCER, WHEEL NO.1

43222-73H20

Unavailable

13

BALANCER, WHEEL NO.2

43224-73H20

Unavailable

13

BALANCER, WHEEL NO.3

43226-73H20

Unavailable

14

TAPE, FRONT WHEEL (BLACK/SILVER)

68251-05H00-GYR

Unavailable
