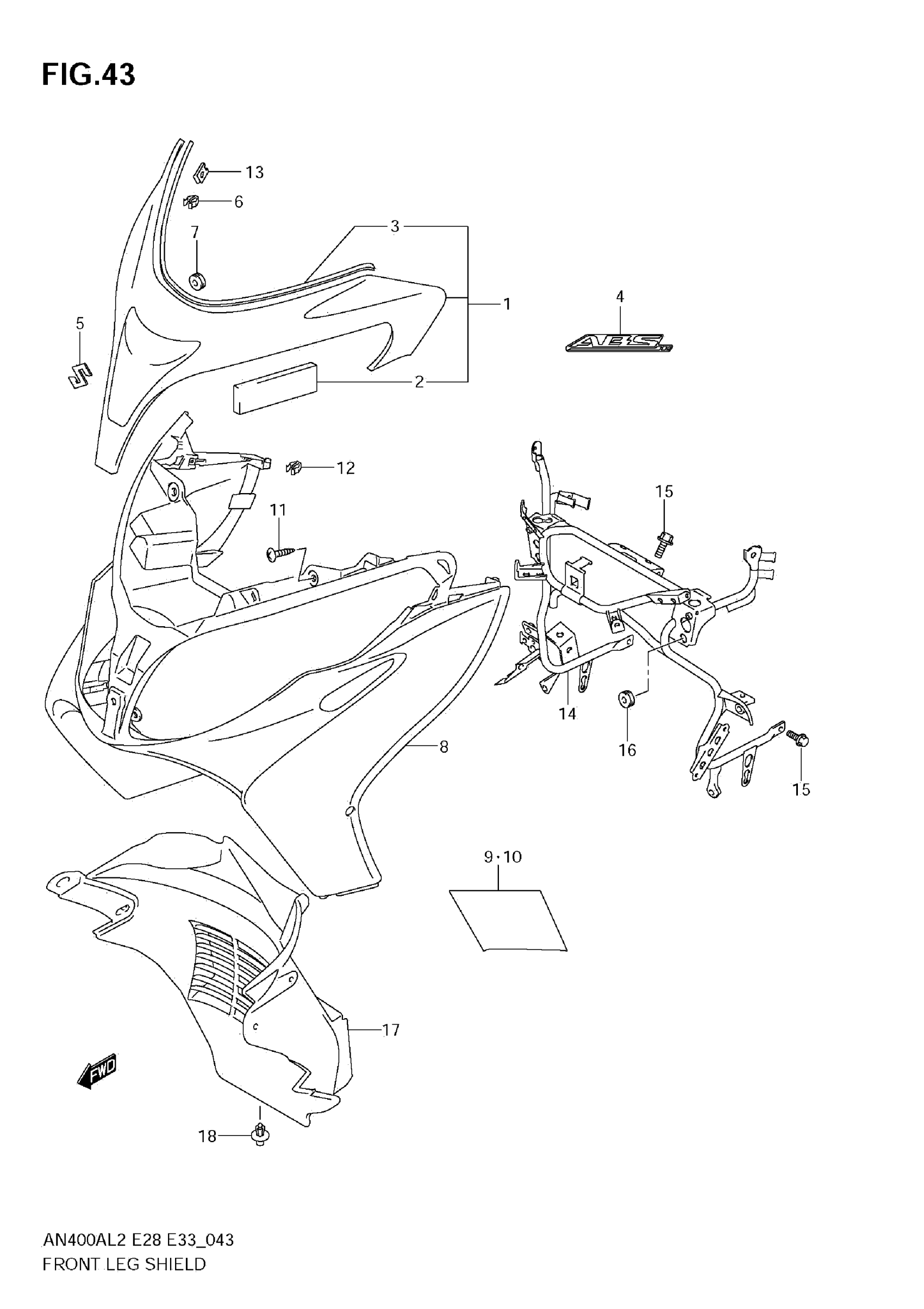

Suzuki AN400ZAL2 (2012) FRONT LEG SHIELD (AN400ZA L2 E28) Diagram

#

Description
Price

1

COVER, FRONT LEG (WHITE) | FOR YPA

48130-05H00-YPA

Unavailable

1

COVER, FRONT LEG (GRAY) | FOR JEZ

48130-05H00-YWC

Unavailable

2

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

3

MOLDING, FR LEG SHIELD COVER

48132-05H00

Unavailable

4

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.60

5

EMBLEM, "S"

68641-14G00

$40.35

6

CLIP

09409-08326

$2.48

7

CUSHION

09320-06026

$4.10

8

SHIELD, LEG FRONT (WHITE) | FOR YPA

48111-05H00-YPA

Unavailable

8

SHIELD, LEG FRONT (GRAY) | FOR JEZ

48111-05H00-YWC

Unavailable

9

TAPE, LEG SHIELD RH (BLACK) | FOR JEZ

68161-05H00-YVB

Unavailable

10

TAPE, LEG SHIELD LH (BLACK) | FOR JEZ

68162-05H00-YVB

Unavailable

11

SCREW (6X12)

09136-06004

$2.15

12

CLIP

09409-08326

$2.48

13

NUT

09148-05038

$1.97

14

BRACE, LEG SHIELD

48150-05HD0

$394.78

15

BOLT (8X12)

01550-0812A

$2.32

16

CUSHION

09320-08018

$3.04

17

SHIELD, LEG LOWER

48137-05H01

$166.00

18

CLIP (BLACK)

09409-08308-5ES

$1.97
