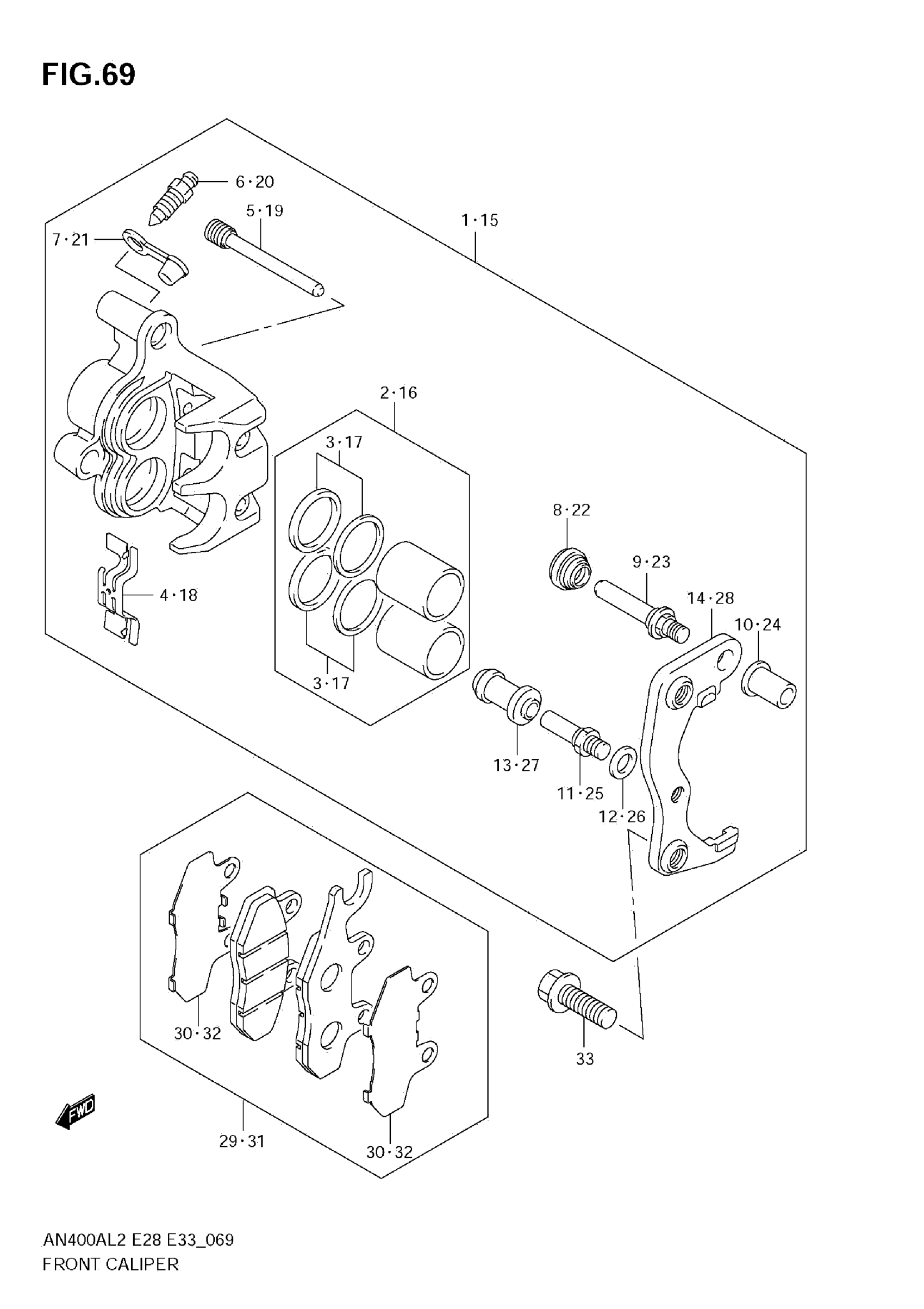

Suzuki AN400ZAL2 (2012) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT RH

59100-05H10-999

$580.50

2

PISTON SET

59300-21810

$66.25

3

SEAL SET, PISTON

59300-21860

$20.15

4

SPRING, PAD

69115-31D10

$16.48

5

PIN

59345-14600

$16.25

6

BLEEDER

59121-01A00

$8.73

7

CAP, BLEEDER

59122-01A00

$4.34

8

BOOT

59303-14500

$5.52

9

PIN

59387-00B20

$18.55

10

NUT

59388-00B20

$15.16

11

BOLT

59382-13A00

$7.69

12

WASHER

59314-13A00

$2.02

13

BOOT

59386-13A00

$7.95

14

BRACKET RH

69151-31D00

Unavailable

15

CALIPER ASSY,FRONT LH

59300-05H10-999

Unavailable

16

PISTON SET

59300-21810

$66.25

17

SEAL SET, PISTON

59300-21860

$20.15

18

SPRING, PAD

69115-31D10

$16.48

19

PIN

59345-14600

$16.25

20

BLEEDER

59121-01A00

$8.73

21

CAP, BLEEDER

59122-01A00

$4.34

22

BOOT

59303-14500

$5.52

23

PIN

59387-00B20

$18.55

24

NUT

59388-00B20

$15.16

25

BOLT

59382-13A00

$7.69

26

WASHER

59314-13A00

$2.02

27

BOOT

59386-13A00

$7.95

28

BRACKET LH

59351-05H00

Unavailable

29

PAD & SHIM SET RH

59100-05820

$52.18

30

SHIM

69132-31D00

$11.02

31

PAD & SHIM SET LH

59100-05830

$61.38

32

SHIM

69132-31D00

$11.02

33

BOLT (10X25)

09103-10372

$4.25
