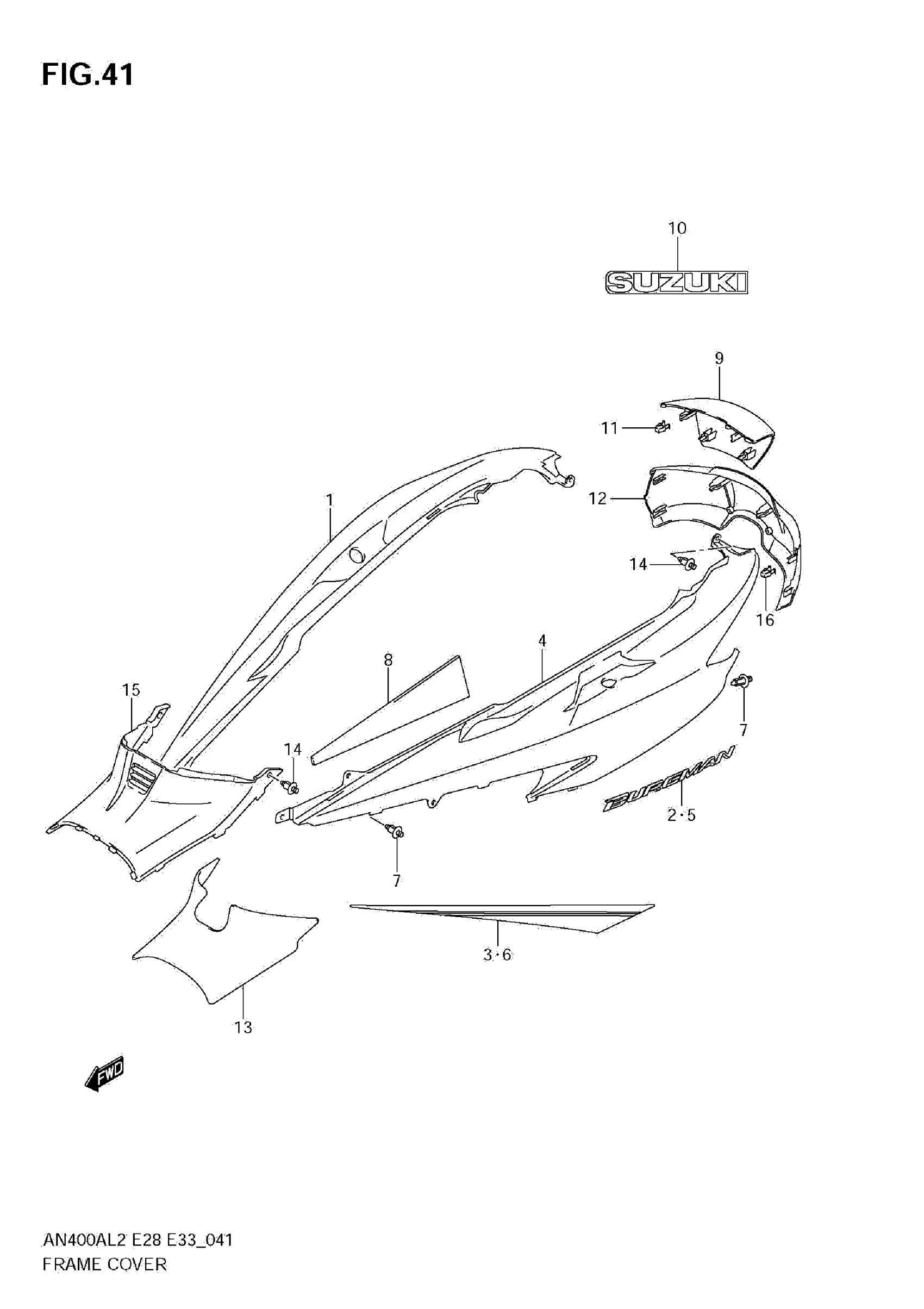

Suzuki AN400ZAL2 (2012) FRAME COVER (AN400ZA L2 E28) Diagram

#

Description
Price

1

COVER,FRAME,R | FOR YPA This part replaces 47111-05H00-YPA.

47111-05H01-YPA

$266.48

1

COVER, FRAME RH (GRAY) | FOR JEZ

47111-05H00-YWC

Unavailable

2

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

3

TAPE, FRAME COVER RH (BLACK) | FOR JEZ

68131-05H60-YVB

Unavailable

4

COVER,FRAME,L | FOR YPA This part replaces 47211-05H00-YPA.

47211-05H01-YPA

$266.48

4

COVER, FRAME LH (GRAY) | FOR JEZ

47211-05H00-YWC

Unavailable

5

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

6

TAPE, FRAME COVER LH (BLACK) | FOR JEZ

68141-05H60-YVB

Unavailable

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

CUSHION, FRAME COVER

47162-05H00

Unavailable

9

COVER, FRAME CENTER (WHITE) | FOR YPA

47311-05H00-YPA

Unavailable

9

COVER, FRAME CENTER (GRAY) | FOR JEZ

47311-05H00-YWC

Unavailable

10

EMBLEM,SUZUKI | FOR JEZ This part replaces 68131-05H50-YES.

68131-05H51-YES

$8.13

10

EMBLEM,SUZUKI | FOR YPA This part replaces 68131-05H50-YJH.

68131-05H51-YJH

$8.13

11

CLIP

09409-08326

$2.48

12

COVER, FRAME LOWER (WHITE) | FOR YPA

47321-05H00-YPA

$221.58

12

COVER, FRAME LOWER (BLACK) | FOR JEZ

47321-05H00-YWC

Unavailable

13

CUSHION, FRONT

47161-05H00

Unavailable

14

CLIP

09409-08326

$2.48

15

COVER, FRAME FRONT (BLACK)

47351-05H01-291

Unavailable

16

CLIP (BLACK)

09409-08308-5ES

$1.97
