2012 Suzuki AN400ZAL2 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

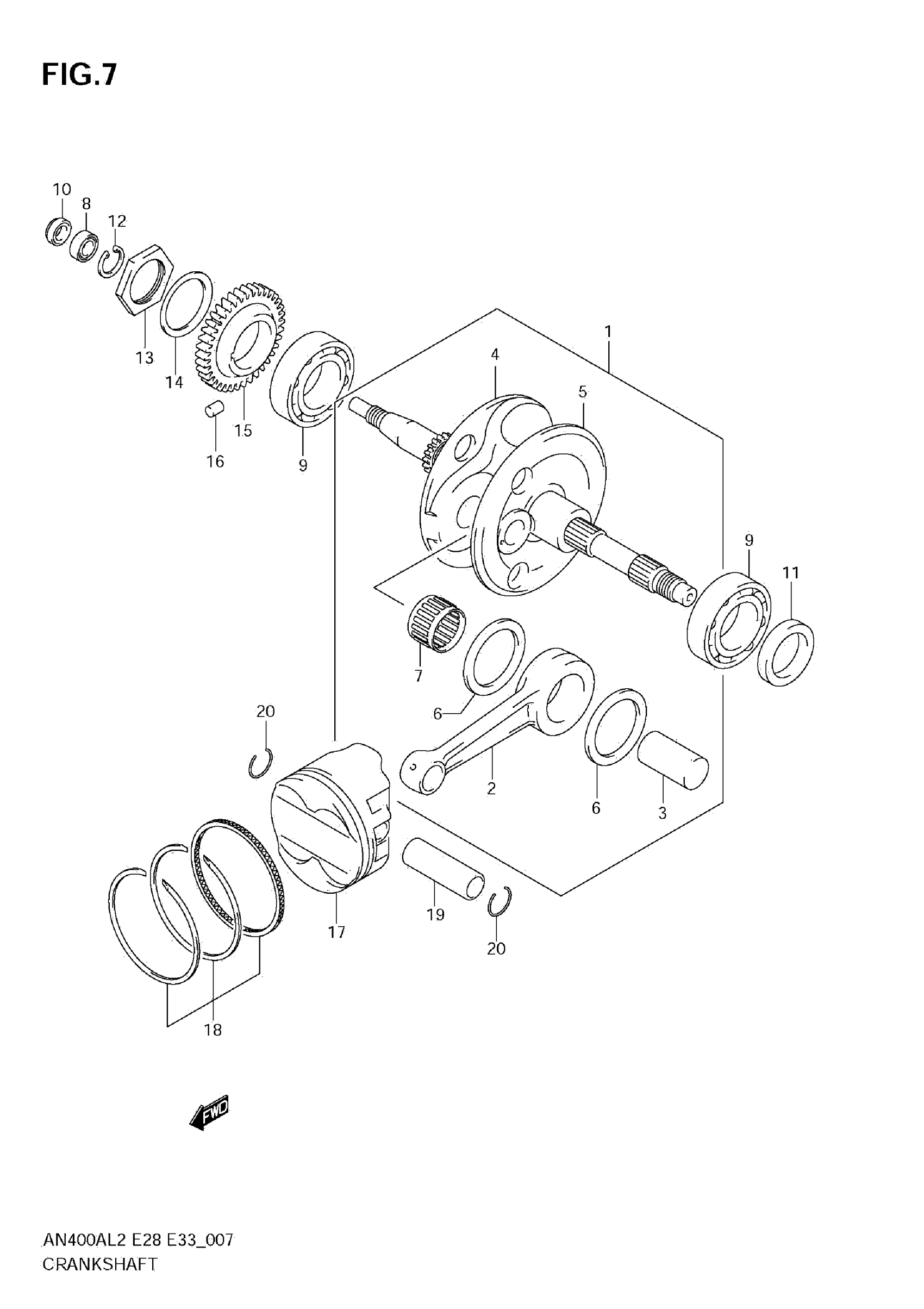

2012 Suzuki AN400ZAL2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-05H10

1
Out of stock

2

CONNROD

12161-05H10

1
Out of stock

3

PIN, CRANK

12210-15F10

1
Out of stock

4

CRANKSHAFT, RH

12220-05H00

1
Out of stock

5

CRANKSHAFT, LH

12260-05H00

1
Out of stock

6

WASHER (35X55X1)

09160-35005

2
Out of stock

7

BEARING (35X45X22)

09263-35034

1
Out of stock

8

BEARING (12X32X10)

09262-12016

1
Out of stock

9

BEARING (35X72X17)

09262-35038

2
Out of stock

10

OIL SEAL (12X29X6)

09282-12011

1
Out of stock

11

OIL SEAL (34X52X6)

09283-34011

1
Out of stock

12

CIRCLIP This part replaces 08331-4132A.

08331-41329

1
Out of stock

13

NUT

12664-24B01

1
Out of stock

14

WASHER (35.1X52X1.5)

09164-35002

1
Out of stock

15

GEAR, CRANK BALANCER DRIVE

12661-05H00

1
Out of stock

16

PIN (5X8)

09261-05005

1
Out of stock

17

PISTON

12111-05H10-0F0

1
Out of stock

18

RING SET, PISTON

12140-05H10

1
Out of stock

19

PIN,PISTON

12151-05A00

1
Out of stock

20

CIRCLIP

09381-20004

2
Out of stock
