2012 Suzuki AN400ZAL2 Crankcase Cover Diagram

← All diagrams

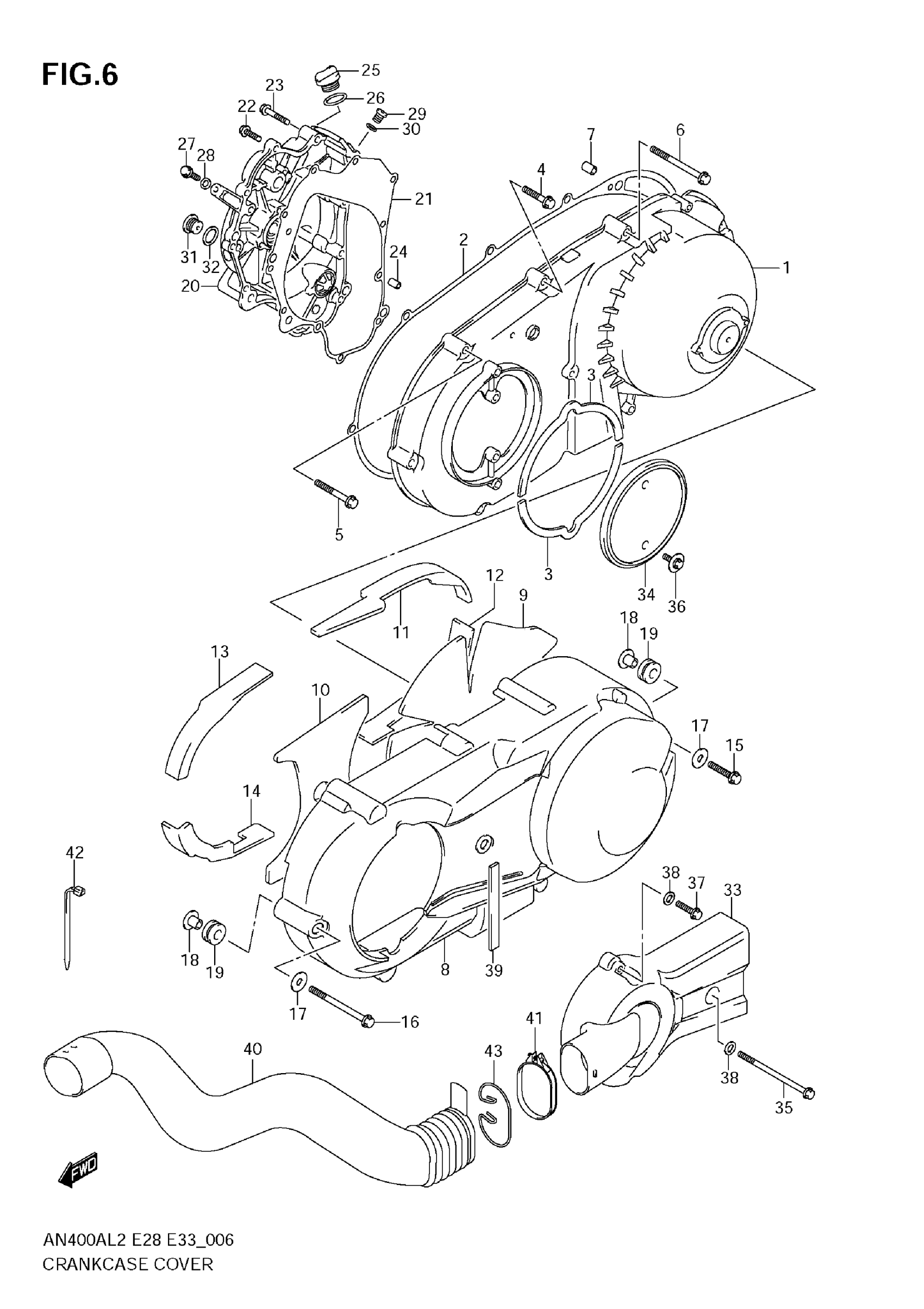

Find the part on the Crankcase Cover diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN400ZAL2 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH INNER

11341-05H00

1
Out of stock

2

GASKET

11482-05H00

1
Out of stock

3

CUSHION,BELT COOLING DUCT

11485-05H10

2
Out of stock

4

BOLT

01547-0630A

4
Out of stock

5

BOLT

01547-0645A

4
Out of stock

6

BOLT

01547-0675A

2
Out of stock

7

PIN

04211-09149

2
Out of stock

8

COVER, CLUTCH OUTER

11371-05H30

1
Out of stock

9

CUSHION, COVER NO.1

11486-05H00

1
Out of stock

10

CUSHION, COVER NO.2

11487-05H00

1
Out of stock

11

CUSHION, COVER NO.3

11488-05H00

1
Out of stock

12

CUSHION, COVER NO.4

11489-05H00

1
Out of stock

13

CUSHION, COVER NO.5

11491-05H00

1
Out of stock

14

CUSHION, COVER NO.6

11492-05H00

1
Out of stock

15

BOLT

01547-0625A

1
Out of stock

16

BOLT

01547-0660A

1
Out of stock

17

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

18

WASHER

09169-06062

3
Out of stock

19

CUSHION

09320-09016

3
Out of stock

20

COVER, MAGNETO

11350-05H00

1
Out of stock

21

GASKET

11483-05H00

1
Out of stock

22

BOLT

01547-0625A

7
Out of stock

23

BOLT

01547-0640A

4
Out of stock

24

PIN

04211-09149

2
Out of stock

25

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

26

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

27

BOLT

01547-0612A

1
Out of stock

28

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

29

PLUG (10X10)

09248-10010

1
Out of stock

30

GASKET (10X14X3.6)

09168-10002

1
Out of stock

31

PLUG

09248-16012

1
Out of stock

32

GASKET (16X22X2)

09168-16002

1
Out of stock

33

DUCT,BELT COOLING

11380-05H50

1
Out of stock

34

FILTER,BELT COOLING

11388-10G10

1
Out of stock

35

BOLT (6X95)

09103-06227

1
Out of stock

36

BOLT (6X16)

09116-06006

2
Out of stock

37

BOLT

01547-0620A

2
Out of stock

38

WASHER

08322-01067

3
Out of stock

39

CUSHION

11382-05H30

1
Out of stock

40

HOSE,BELT COOLI This part replaces 11383-05H40.

11383-05H41

1
Out of stock

41

CLAMP,BELT COOL This part replaces 11384-05H40.

11384-05H41

1
Out of stock

42

CLAMP (L:125)

09407-14403

1
Out of stock

43

GUIDE, COOLING DUCT HOSE

11385-05H00

—
Out of stock
