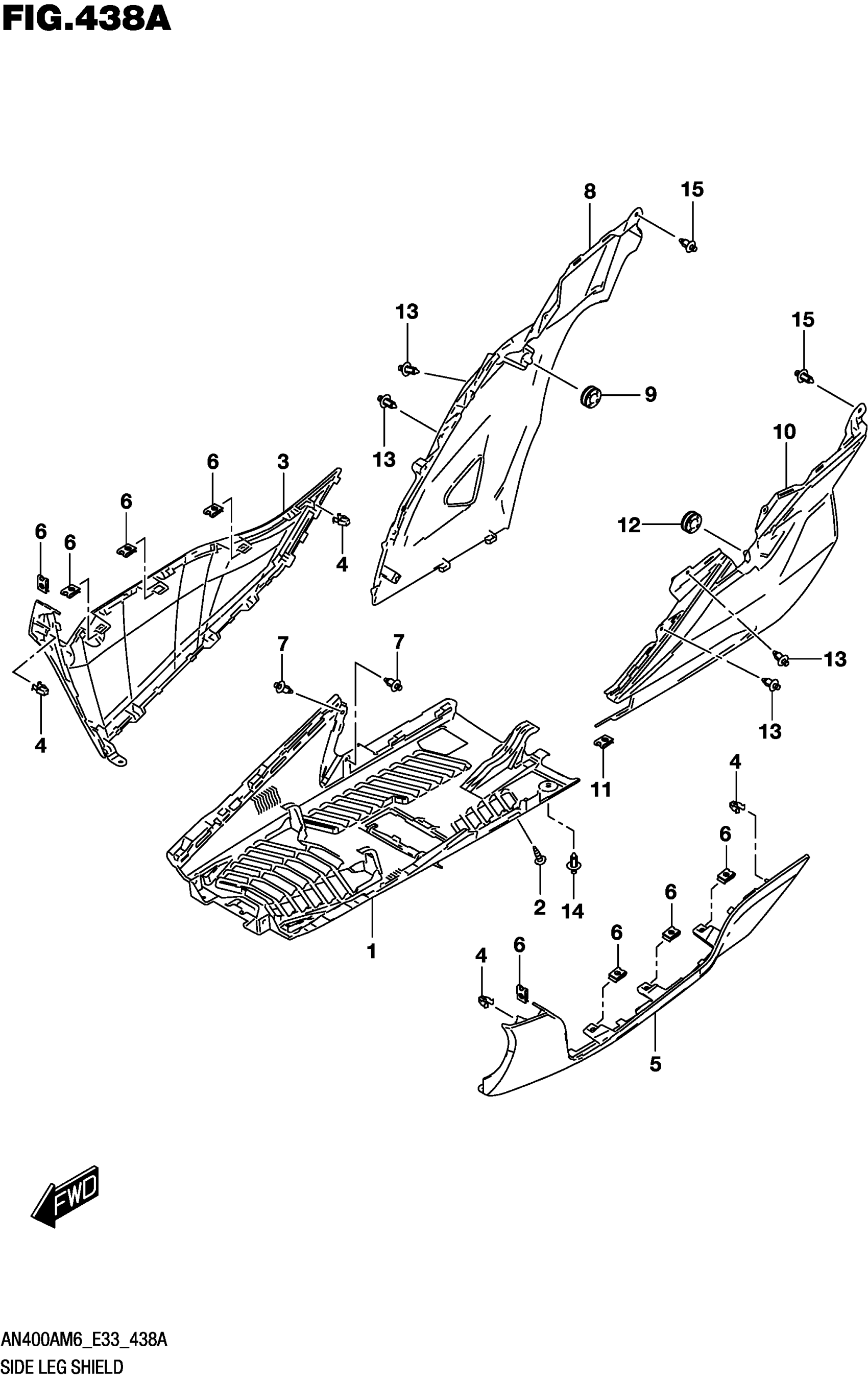

Suzuki AN400AM6(E33) (2026) SIDE LEG SHIELD Diagram

#

Description
Price

1

COVER, UNDER CTR

48138-19K00

$91.50

2

SCREW

03541-0512A

$1.49

3-1

SHIELD,LEG SIDE LWR RH (BLACK | BODY COLOR:YKV

48171-19K01-YKV

$336.37

3-2

SHIELD,LEG SIDE LOWER,R (GRAY | BODY COLOR:QT8

48171-19K01-QT8

Unavailable

3-3

SHIELD,LEG SIDE LOWER,R (SILV | R) BODY COLOR:QU5

48171-19K01-QU5

Unavailable

4

CLIP (10.5X14.3)

09409-08326

$2.48

5-1

SHIELD,LEG SIDE LWR LH (BLACK | BODY COLOR:YKV

48181-19K01-YKV

$311.45

5-2

SHIELD,LEG SIDE LOWER,L (GRAY | BODY COLOR:QT8

48181-19K01-QT8

Unavailable

5-3

SHIELD,LEG SIDE LOWER,L (SILV | R) BODY COLOR:QU5

48181-19K01-QU5

Unavailable

6

NUT (M5)

09148-05038

$1.97

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

8

COVER, LEG SIDE RH

48175-19K00

$74.93

9

CUSHION (8X26X7)

09320-08028

$3.04

10

COVER, LEG SIDE LH

48185-19K00

$74.93

11

NUT (M5)

09148-05038

$1.97

12

CUSHION (8X26X7)

09320-08028

$3.04

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

14

CLIP (7.6X25.7)

09409-08308

$2.26

15

CLIP (7.6X25.7)

09409-08308

$2.26
