Description

Price

1

SEAT ASSY

45100-19K02-BGM

$766.52

2

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

3

.STRIKER, SEAT LOCK

45210-05H10

$22.02

4

NUT (6X12)

08316-1006A

$2.19

5

.CUSHION,SEAT BOTTOM

45148-19K01

$10.83

6

MOLDING, SEAT

45211-33G60

$43.98

7

HOSE | L:600->30

09351-30001-600

$3.57

8

DAMPER ASSY, SEAT

45270-19K00

$106.73

9

HOSE (13.5X16.5X600) | L:600->40

09352-13162-600

$24.87

10

BOLT (6X16)

09111-06071

$4.90

11

WASHER

08322-0108A

$1.92

12

PIN

09385-08003

$1.72

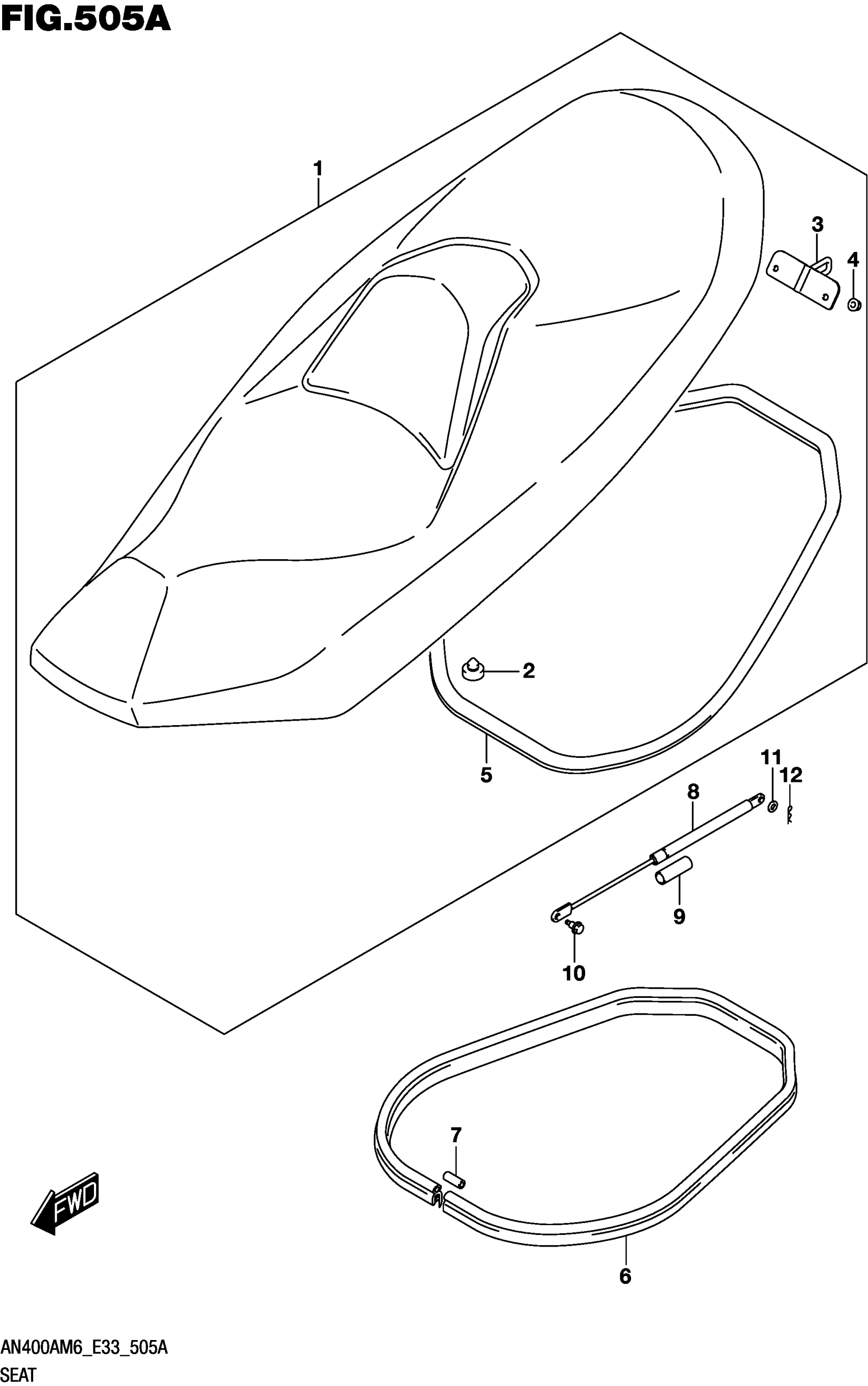

Suzuki AN400AM6(E33) (2026) SEAT Diagram
