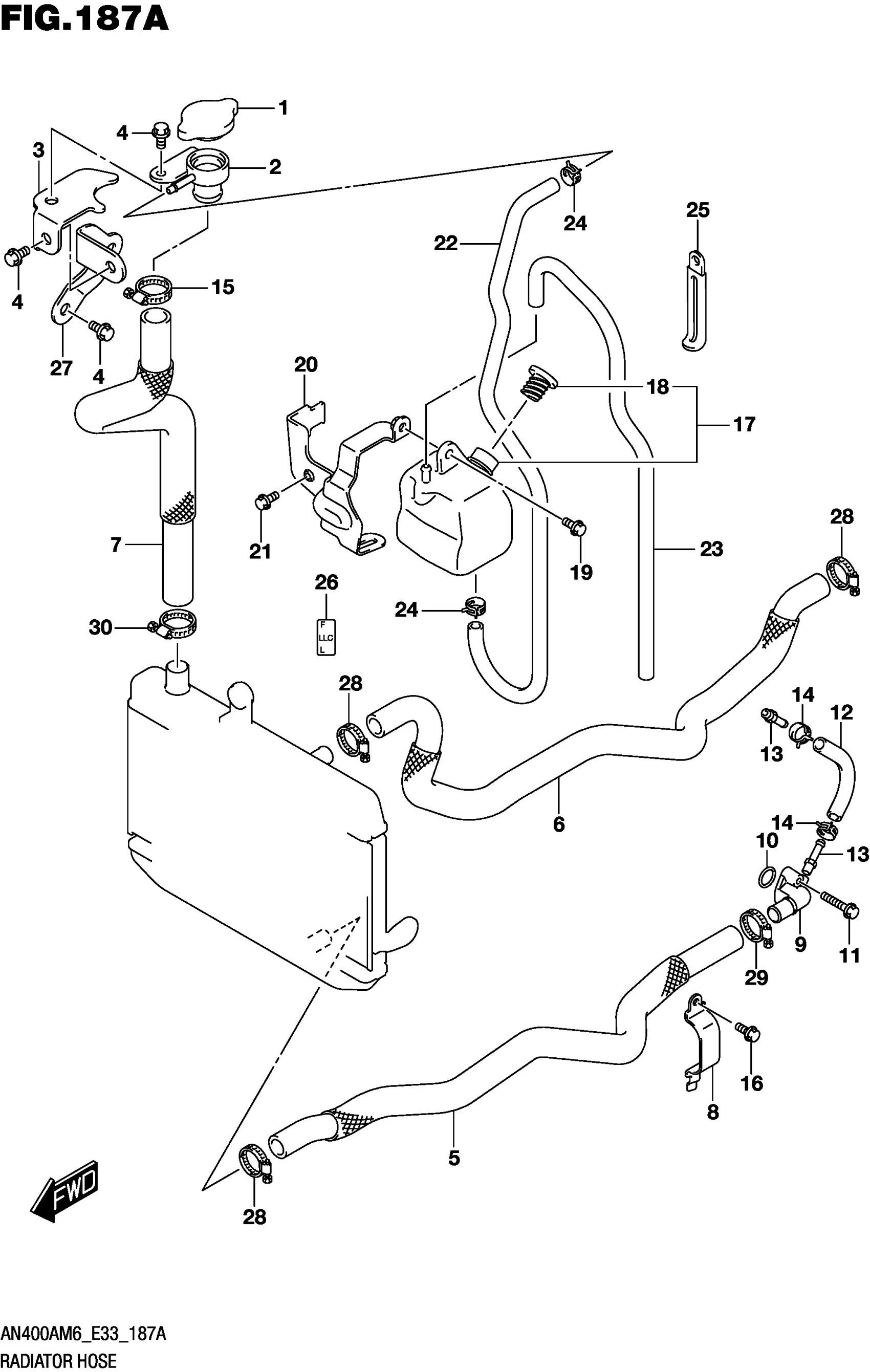

Find the part on the Radiator Hose diagram for your 2026 Suzuki AN400AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki AN400AM6(E33) Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP,RADIATOR (1.1)

17730-08J00

1
Out of stock

2

CONDUCTION,RDTR

17791-24D00

1
Out of stock

3

BRACKET, CONDUCTION NO.2

17790-19K00

1
Out of stock

4

BOLT

01550-0610A

3
Out of stock

5

HOSE,RADIATOR OUTLET

17852-19K20

1
Out of stock

6

HOSE,RADIATOR INLET

17851-19K20

1
Out of stock

7

HOSE, CONDUCTION

17855-19K00

1
Out of stock

8

PLATE,WATER HOSE CLAMP

17859-05H00

1
Out of stock

9

CONNECTOR, WATER INLET

17861-05H01

1
Out of stock

10

1

$5.01

In stock

11

BOLT

01547-0630A

2
Out of stock

12

HOSE (7.5X14.5X600) | 600>130

09356-75141-600

—
Out of stock

13

UNION

09362-09011

2
Out of stock

14

CLIP

09401-12414

2
Out of stock

15

CLAMP

09402-28513

1

$6.80

In stock

16

BOLT

01550-0616A

1
Out of stock

17

TANK ASSY,RESERVOIR

17910-05H00

1
Out of stock

18

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

19

BOLT (6X12)

09111-06085

1
Out of stock

20

BRACKET,RSVR TANK

17920-05H00

1
Out of stock

21

BOLT

01547-0616A

1
Out of stock

22

HOSE,RESERVOIR TANK INLET

17981-10G01

1
Out of stock

23

HOSE,RSVR TANK OVFL

17982-19K01

1
Out of stock

24

CLIP (ID:8.6)

09401-08411

2
Out of stock

25

CLAMP (L:80)

09404-06030

—
Out of stock

26

LABEL,RESERVOIR TANK LEVEL

17919-05H00

1
Out of stock

27

BRACKET, CONDUCTION NO.1

17780-19K00

1
Out of stock

28

CLIP

09401-20407

3
Out of stock

29

CLIP

09401-22407

1
Out of stock

30

CLAMP

09401-24002

1
Out of stock
