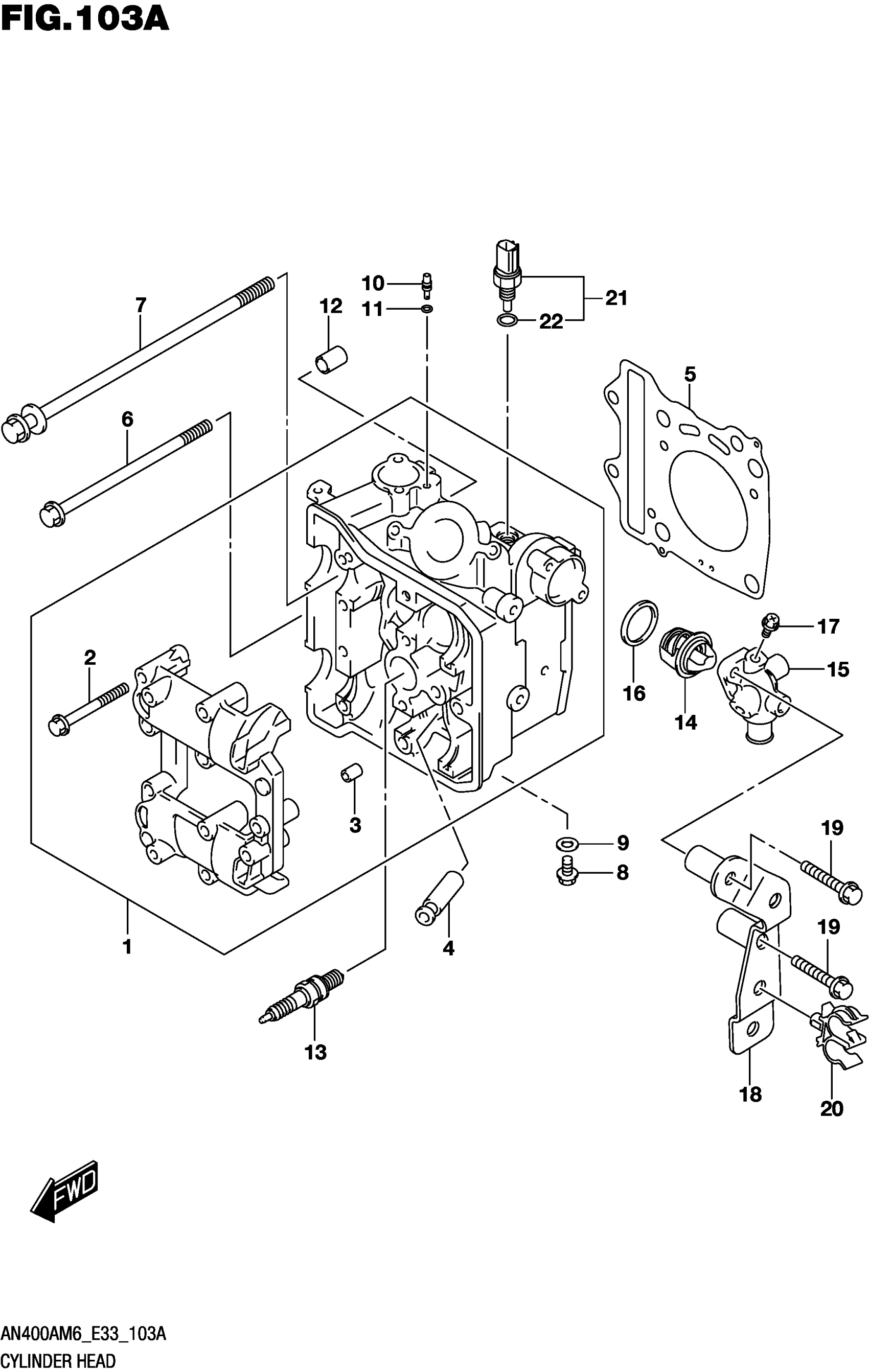

Find the part on the Cylinder Head diagram for your 2026 Suzuki AN400AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki AN400AM6(E33) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER

11100-19K50

1
Out of stock

2

.BOLT (6X45)

09103-06165

9
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

GUIDE,VALVE (OS:0.3)

11115-32C71

4
Out of stock

5

.GASKET,CYLINDER HEAD

11141-19K00

1
Out of stock

6

BOLT (8X130)

09103-08086

2
Out of stock

7

BOLT,CYLINDER HEAD (10X190)

11117-05H00

4
Out of stock

8

BOLT

01550-0612A

1
Out of stock

9

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

10

JET (#8)

09493-80005

1
Out of stock

11

O-RING (D:1.2,ID:4)

09280-04004

1
Out of stock

12

PIN (10.4X13X18)

04211-13189

2
Out of stock

13-1

PLUG,SPARK (CR7EIA-9)

09482-00554

2
Out of stock

13-2

PLUG,SPARK (CR8EIA-9)

09482-00556

2
Out of stock

13-3

PLUG,SPARK (CR9EIA-9) | OPT

09482-00558

2
Out of stock

13-4

PLUG,SPARK (IU22D) | OPT

09482-00553

2
Out of stock

13-5

PLUG,SPARK (IU24D) | OPT

09482-00555

2
Out of stock

13-6

PLUG,SPARK (IU27D) | OPT

09482-00557

2
Out of stock

14

THERMOSTAT,WATER

17670-19K01

1
Out of stock

15

COVER, THERMOSTAT

17661-05H01

1
Out of stock

16

GASKET (6.4X11.5X0.84)

09168-06026

1
Out of stock

17

UNION BOLT,AIR VENT

17568-50F00

1
Out of stock

18

BRACKET,AIR CLEANER,L

13760-19K20

1
Out of stock

19

BOLT

01547-0640A

2
Out of stock

20

CLAMP

27893-54J00

—
Out of stock

21

SENSOR,WATER TEMP

13650-14G00

1
Out of stock

22

.O RING

13655-14G00

1
Out of stock
