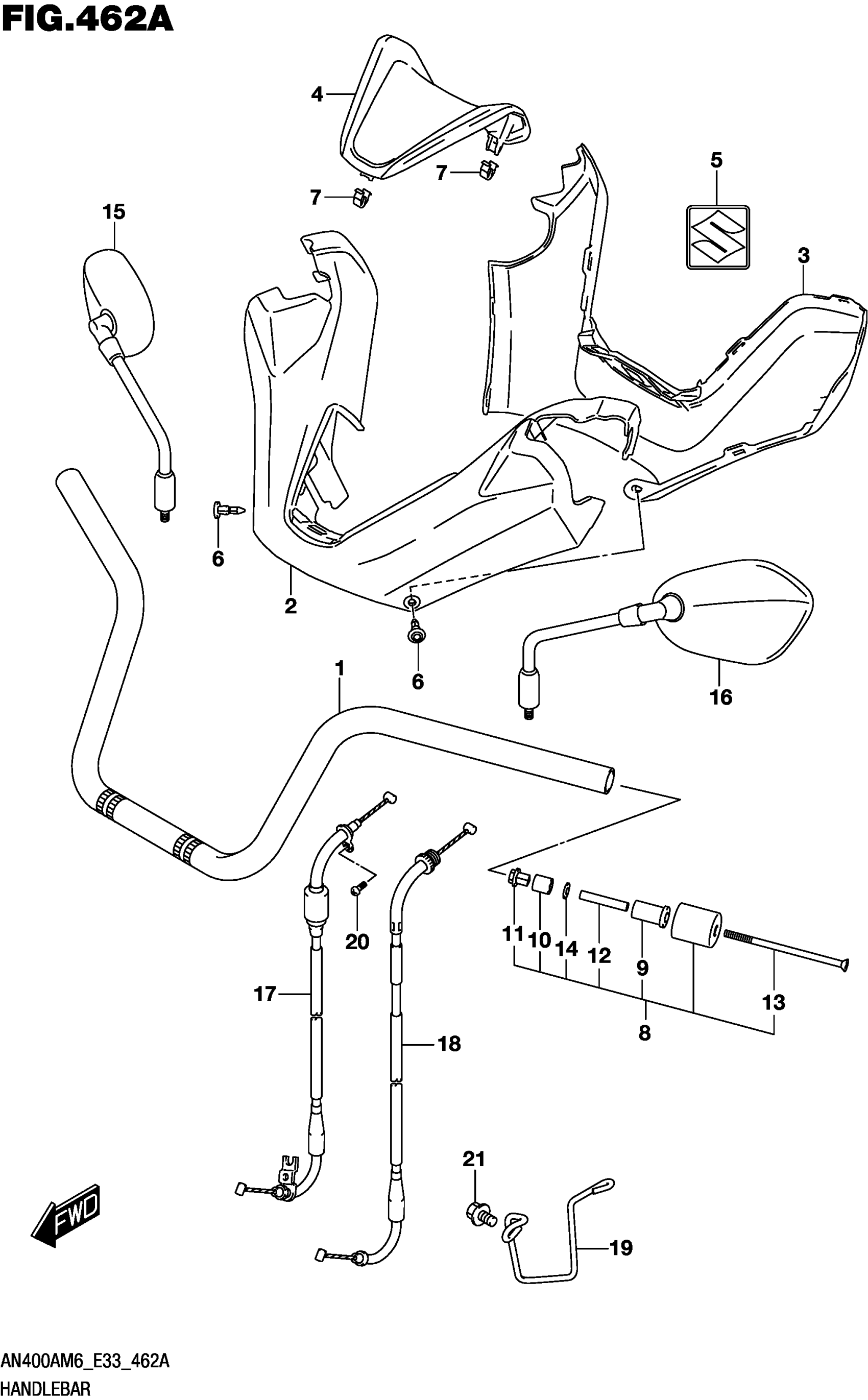

Suzuki AN400AM6(E33) (2026) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-19K00

$116.43

2

COVER, HANDLE FRONT

56311-19K00

$85.87

3

COVER, HANDLE REAR

56321-19K00

$72.37

4

COVER,HANDLE UPPER

56331-19K00

$78.42

5

EMBLEM,S

68281-48K00

$4.90

6

CLIP

09409-06329

$2.79

7

CLIP (10.5X14.3)

09409-08326

$2.48

8

BALANCER SET,HANDLEBAR

56200-32842

$46.23

9

.EXPANDER,HANDLE BALANCER

56272-06G00

$8.13

10

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.72

11

.NUT,HANDLE BALANCER

56273-10G10

$8.65

12

.SPACER,EXPANDER

56276-17D00

$5.07

13

.SCREW (6X110)

09127-06018

$3.38

14

.WASHER (6.5X16X1.6)

09160-06130

$1.91

15

MIRROR ASSY, REAR VIEW RH

56500-08J40

$124.70

16

MIRROR ASSY, REAR VIEW LH

56600-08J40

$124.70

17

CABLE ASSY,THROTTLE NO.1

58300-19K02

$55.85

18

CABLE ASSY,THROTTLE NO.2

58300-19K11

$48.37

19

GUIDE, THROTTLE CABLE

58622-19K00

$11.08

20

SCREW (5X8)

09125-05073

$2.38

21

BOLT (6X20)

01550-0620A

$1.97
