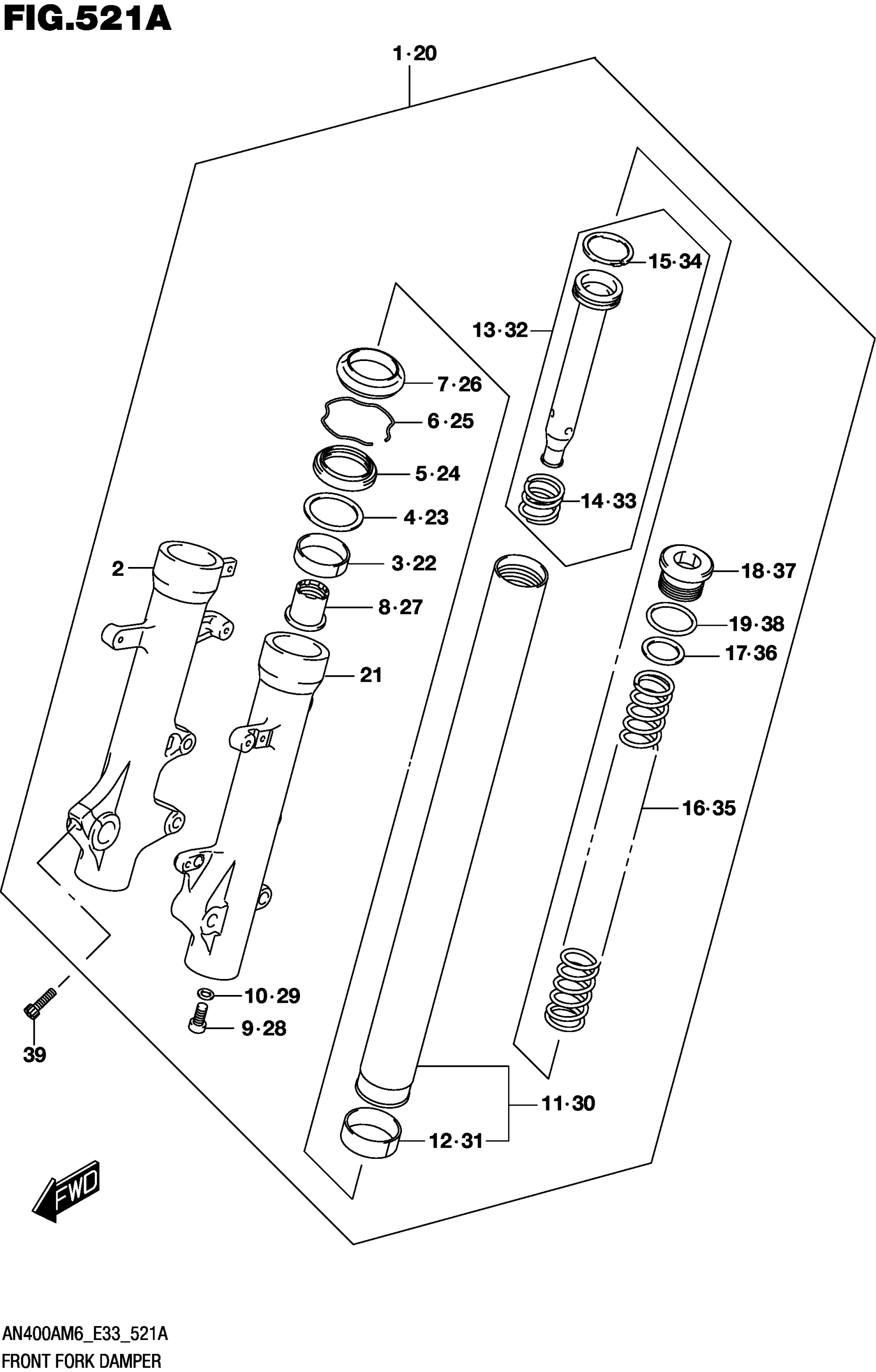

Suzuki AN400AM6(E33) (2026) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRONT RH (BLACK)

51103-05HB0-YTA

Unavailable

2

.TUBE, OUTER RH (BLACK)

51130-05HB0-YTA

Unavailable

3

.METAL,SLIDE

51167-26E10

$24.52

4

.WASHER

51158-05A00

$5.83

5

.SEAL,OIL

51153-10G50

$20.70

6

.RING,OIL SEAL STOPPER

51156-49440

$5.05

7

.SEAL,DUST

51173-14F00

$23.07

8

.PIECE,OIL LOCK

51195-33D10

$26.20

9

.BOLT

51147-05H00

$5.40

10

.GASKET

51148-41310

$2.26

11

.TUBE,INNER

51110-05H00

$349.58

12

..PISTON

51121-33D10

$18.90

13

.CYLINDER

51146-05HA0

$60.32

14

..SPRING,REBOUND

51177-14F70

Unavailable

15

..RING,PISTON

51196-14F51

Unavailable

16

.SPRING, FRONT

51171-05HA0

$60.32

17

.WASHER,STEM HEAD (24.5X34X1. | )

51356-27C00

$6.75

18

.CAP,FORK

51351-14F20

Unavailable

19

.O-RING (D:3.5,ID:31.7)

09280-32001

$2.06

20

DAMPER ASSY,FRONT LH (BLACK)

51104-05HB0-YTA

Unavailable

21

.TUBE, OUTER LH (BLACK)

51140-05HB0-YTA

Unavailable

22

.METAL,SLIDE

51167-26E10

$24.52

23

.WASHER

51158-05A00

$5.83

24

.SEAL,OIL

51153-10G50

$20.70

25

.RING,OIL SEAL STOPPER

51156-49440

$5.05

26

.SEAL,DUST

51173-14F00

$23.07

27

.PIECE,OIL LOCK

51195-33D10

$26.20

28

.BOLT

51147-05H00

$5.40

29

.GASKET

51148-41310

$2.26

30

.TUBE,INNER

51110-05H00

$349.58

31

..PISTON

51121-33D10

$18.90

32

.CYLINDER

51146-05HA0

$60.32

33

..SPRING,REBOUND

51177-14F70

Unavailable

34

..RING,PISTON

51196-14F51

Unavailable

35

.SPRING, FRONT

51171-05HA0

$60.32

36

.WASHER,STEM HEAD (24.5X34X1. | )

51356-27C00

$6.75

37

.CAP,FORK

51351-14F20

Unavailable

38

.O-RING (D:3.5,ID:31.7)

09280-32001

$2.06

39

BOLT

51328-05H00

$5.75
