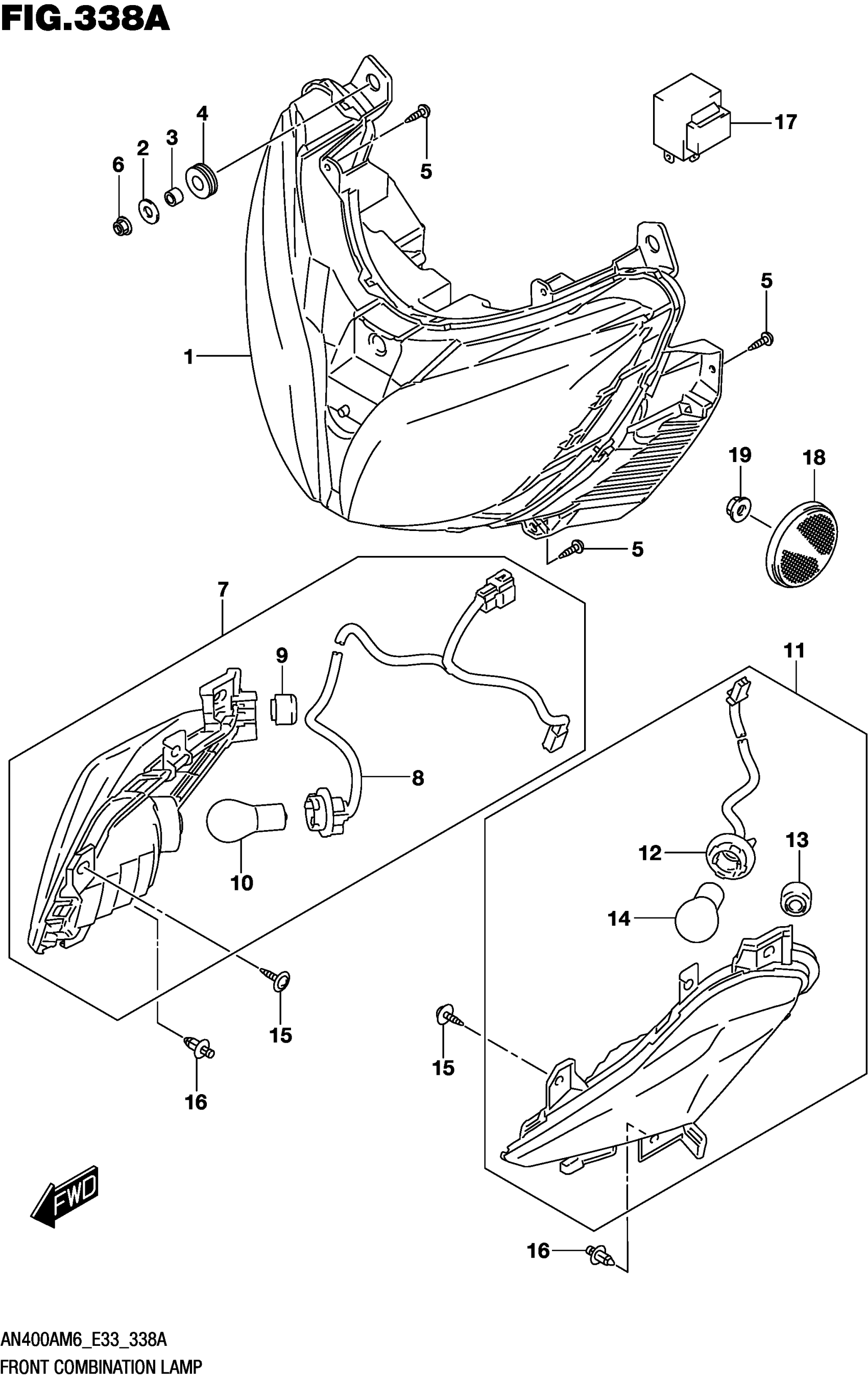

Suzuki AN400AM6(E33) (2026) FRONT COMBINATION LAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-19K01

$836.92

2

WASHER (6.5X20X1.2)

09160-06077

$1.91

3

SPACER (6.5X10X7)

09180-06283

$1.91

4

CUSHION

09320-10059

$3.83

5

SCREW

03541-0516A

$1.49

6

NUT (6X12)

08316-1006A

$2.19

7

LAMP ASSY,FRONT TURNSIGNAL RH

35601-19K01

$135.02

8

.CORD ASSY RH

35618-19K01

$30.22

9

.CAP

35650-19K00

$11.20

10

.BULB (12V21W)

09471-12186

$12.66

11

LAMP ASSY,FRONT TURNSIGNAL LH

35602-19K01

$128.40

12

.CORD ASSY LH

35638-19K01

$22.60

13

.CAP

35650-19K00

$11.20

14

.BULB (12V21W)

09471-12186

$12.66

15

SCREW (5X16)

09136-05063

Unavailable

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

17

RELAY ASSY,TURNSIGNAL

38610-48K00

$65.23

18

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

19

NUT

08316-1005A

$2.19
