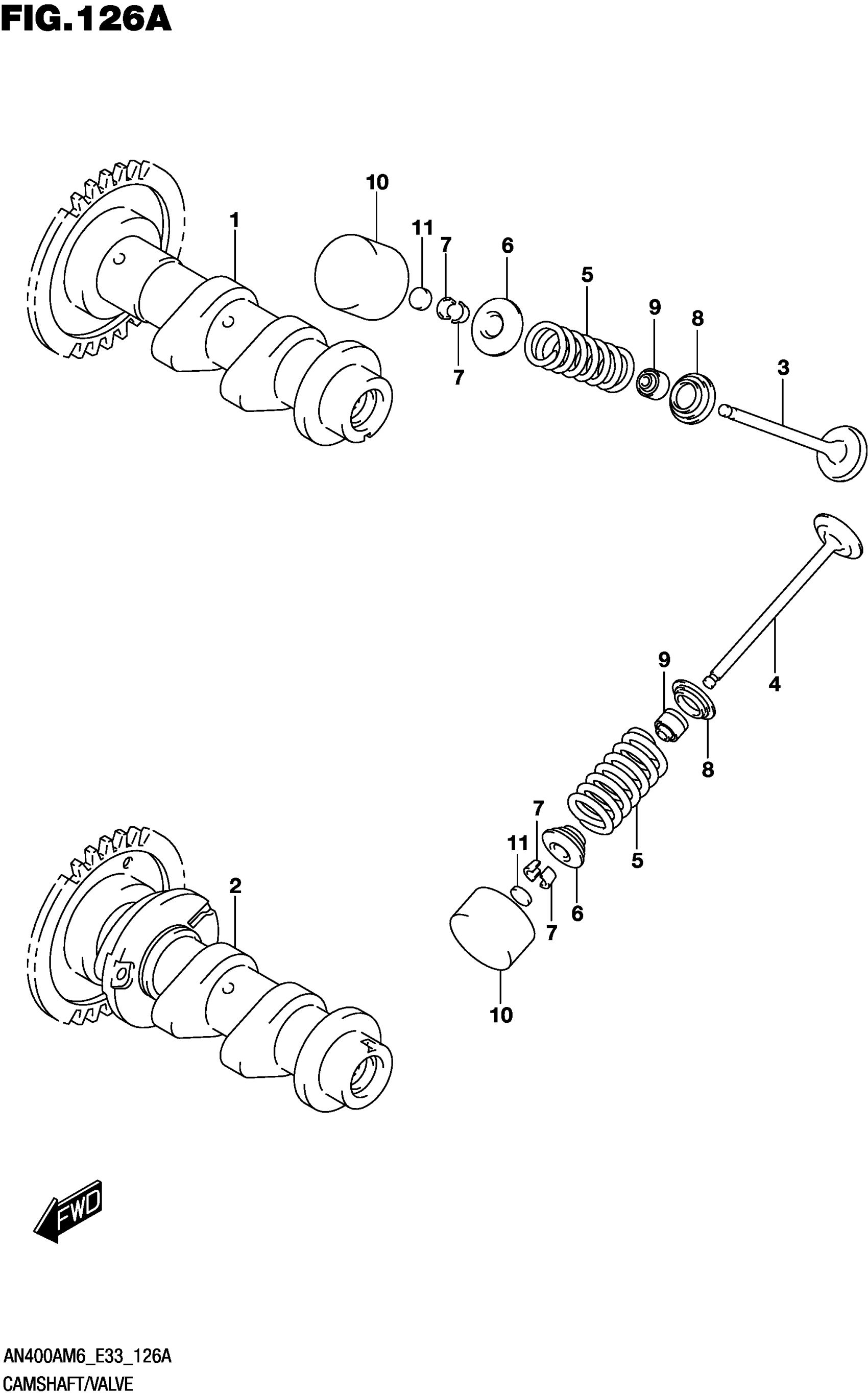

Suzuki AN400AM6(E33) (2026) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE

12710-19K10

$201.13

2

CAMSHAFT, EXHAUST

12720-19K00

$403.33

3

VALVE,INTAKE

12911-05H00

$45.38

4

VALVE,EXHAUST

12912-05H00

$71.50

5

SPRING,VALVE

12921-39H00

$11.93

6

RETAINER,VALVE SPRING

12931-10G00

$8.02

7

COTTER,VALVE

12932-32C00

$2.03

8

SEAT,VALVE SPRING

12933-39E00

$8.60

9

SEAL,OIL (4.5X10X8)

09289-04002

$6.49

10

TAPPET

12891-47H00

$68.43

11-1

SHIM,TAPPET (T:1.20)

12892-05C00-120

$11.60

11-2

SHIM,TAPPET (T:1.25)

12892-05C00-125

$11.83

11-3

SHIM,TAPPET (T:1.30)

12892-05C00-130

$10.06

11-4

SHIM,TAPPET (T:1.35)

12892-05C00-135

$10.06

11-5

SHIM,TAPPET (T:1.40)

12892-05C00-140

$11.83

11-6

SHIM,TAPPET (T:1.45)

12892-05C00-145

$9.87

11-7

SHIM,TAPPET (T:1.50)

12892-05C00-150

$11.83

11-8

SHIM,TAPPET (T:1.55)

12892-05C00-155

$9.69

11-9

SHIM,TAPPET (T:1.60)

12892-05C00-160

$9.69

11-10

SHIM,TAPPET (T:1.65)

12892-05C00-165

$9.69

11-11

SHIM,TAPPET (T:1.70)

12892-05C00-170

$11.60

11-12

SHIM,TAPPET (T:1.75)

12892-05C00-175

$9.87

11-13

SHIM,TAPPET (T:1.80)

12892-05C00-180

$11.38

11-14

SHIM,TAPPET (T:1.85)

12892-05C00-185

$11.83

11-15

SHIM,TAPPET (T:1.90)

12892-05C00-190

$11.83

11-16

SHIM,TAPPET (T:1.95)

12892-05C00-195

$11.83

11-17

SHIM,TAPPET (T:2.00)

12892-05C00-200

$11.60

11-18

SHIM,TAPPET (T:2.05)

12892-05C00-205

$11.83

11-19

SHIM,TAPPET (T:2.10)

12892-05C00-210

$11.83

11-20

SHIM,TAPPET (T:2.15)

12892-05C00-215

$11.83

11-21

SHIM,TAPPET (T:2.20)

12892-05C00-220

$11.83

12

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-05830

$1,211.58

13

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69491

Unavailable
