2026 Suzuki AN400AM6(E33) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2026 Suzuki AN400AM6(E33), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

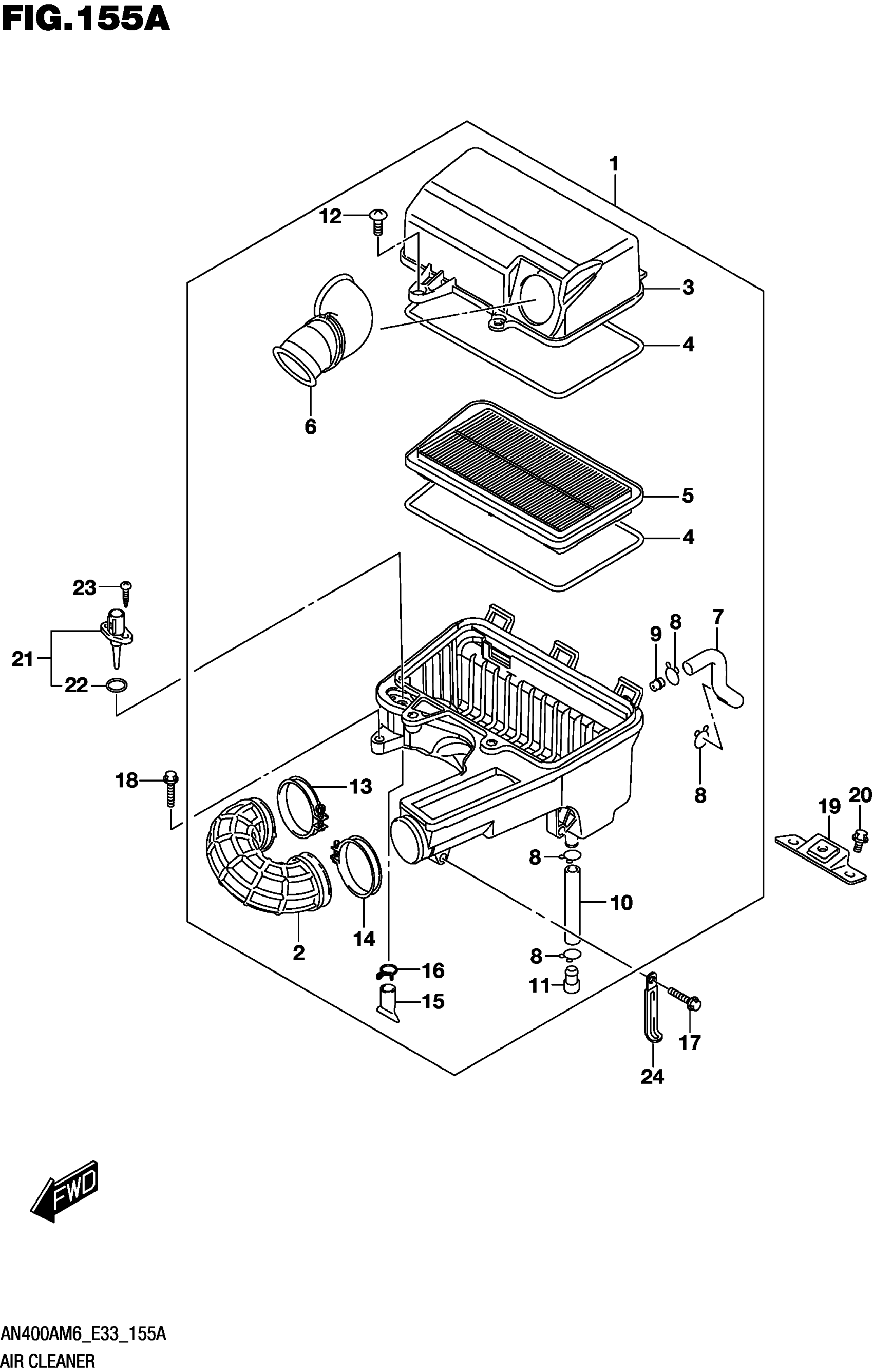

2026 Suzuki AN400AM6(E33) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-19K10

1
Out of stock

2

.TUBE, OUTLET

13881-19K00

1
Out of stock

3

.CAP

13740-19K00

1
Out of stock

4

.GASKET

13746-19K10

2
Out of stock

5

.FILTER, AIR CLEANER

13780-19K00

1
Out of stock

6

.TUBE, INLET

13891-19K00

1
Out of stock

7

.TUBE, BREATHER

13853-19K00

1
Out of stock

8

.CLIP

13821-12K00

4
Out of stock

9

.JET,BREATHER

13859-14D41

1
Out of stock

10

.TUBE, DRAIN

13871-19K00

1
Out of stock

11

.STOPPER, DRAIN

13877-19K00

1
Out of stock

12

.SCREW

13837-19K00

2
Out of stock

13

.CLAMP

13170-25D01

1

$7.45

In stock

14

.CLAMP

09402-58208

1
Out of stock

15

.PLUG,DRAIN

13878-19K00

1
Out of stock

16

.CLIP

13821-12K00

1
Out of stock

17

BOLT (6X25)

01550-0625A

2
Out of stock

18

BOLT (6X30)

09116-06103

1
Out of stock

19

BRACKET,AIR CLNR REAR

13760-19K30

1
Out of stock

20

BOLT

01547-0612A

2
Out of stock

21

SENSOR,AIR TEMP

13650-14G10

1
Out of stock

22

.O-RING

13655-14G10

1
Out of stock

23

SCREW

03511-0516A

2
Out of stock

24

CLAMP (L:45)

09404-06429

1
Out of stock
