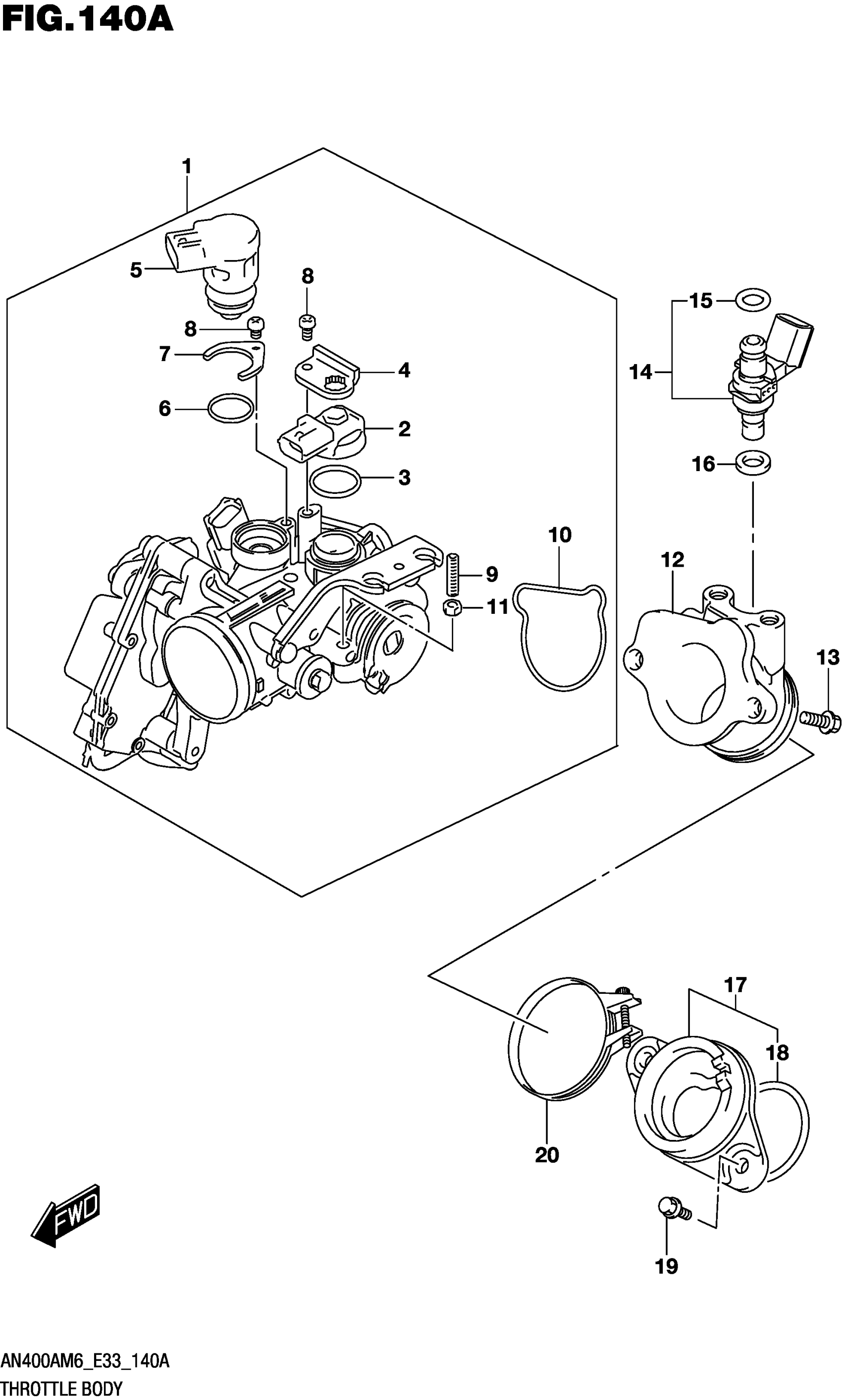

Suzuki AN400AM6(E33) (2026) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13400-19K20

$831.10

2

.SENSOR,MAP

15620-05H00

$304.30

3

.O RING

15621-05H01

$10.22

4

.PLATE

15622-05H00

Unavailable

5

.VALVE, ISC

18117-05H22

$289.43

6

.O-RING

18119-05H00

$4.47

7

.PLATE

13428-06F30

$7.30

8

.SCREW

02112-14087

$2.58

9

.SCREW

13267-14G10

Unavailable

10

.O RING

13278-05H00

$15.07

11

.NUT

13661-14G10

Unavailable

12

PIPE,INTAKE

13111-19K10

$236.00

13

BOLT

01547-0616A

$2.01

14

INJECTOR ASSY

15710-04K00

$302.17

15

.O-RING

15717-58B00

$9.11

16

SEAL

15722-14J00

$10.70

17

PIPE ASSY,INTAKE

13101-05H01

$58.27

18

.O-RING

09280-42004

$2.02

19

BOLT (6X16)

09119-06092

$2.87

20

CLAMP,INTAKE PIPE

13170-39H01

$8.05
