2025 Suzuki AN400AM5 Throttle Body Diagram

← All diagrams

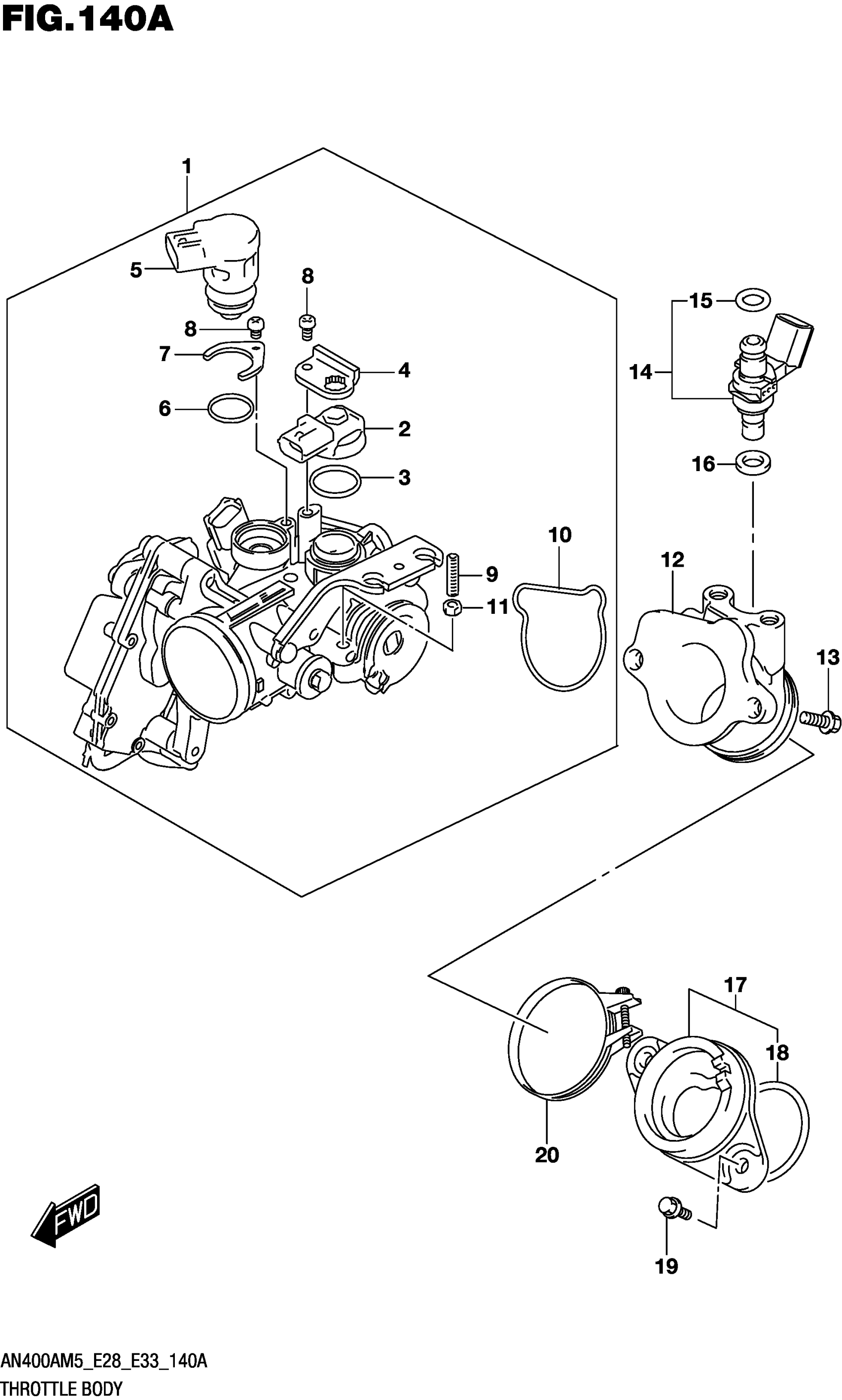

Find the part on the Throttle Body diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki AN400AM5 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13400-19K20

1
Out of stock

2

.SENSOR,MAP

15620-05H00

1
Out of stock

3

.O RING

15621-05H01

1
Out of stock

4

.PLATE

15622-05H00

1
Out of stock

5

.VALVE, ISC

18117-05H22

1
Out of stock

6

.O-RING

18119-05H00

1
Out of stock

7

.PLATE

13428-06F30

1
Out of stock

8

.SCREW

02112-14087

2
Out of stock

9

.SCREW

13267-14G10

1
Out of stock

10

.O RING

13278-05H00

1
Out of stock

11

.NUT

13661-14G10

1
Out of stock

12

PIPE,INTAKE

13111-19K10

1

$236.00

In stock

13

BOLT

01547-0616A

2
Out of stock

14

INJECTOR ASSY

15710-04K00

1
Out of stock

15

.O-RING

15717-58B00

1
Out of stock

16

SEAL

15722-14J00

1
Out of stock

17

PIPE ASSY,INTAKE

13101-05H01

1
Out of stock

18

.O-RING

09280-42004

1
Out of stock

19

BOLT (6X16)

09119-06092

2
Out of stock

20

CLAMP,INTAKE PIPE

13170-39H01

1
Out of stock
