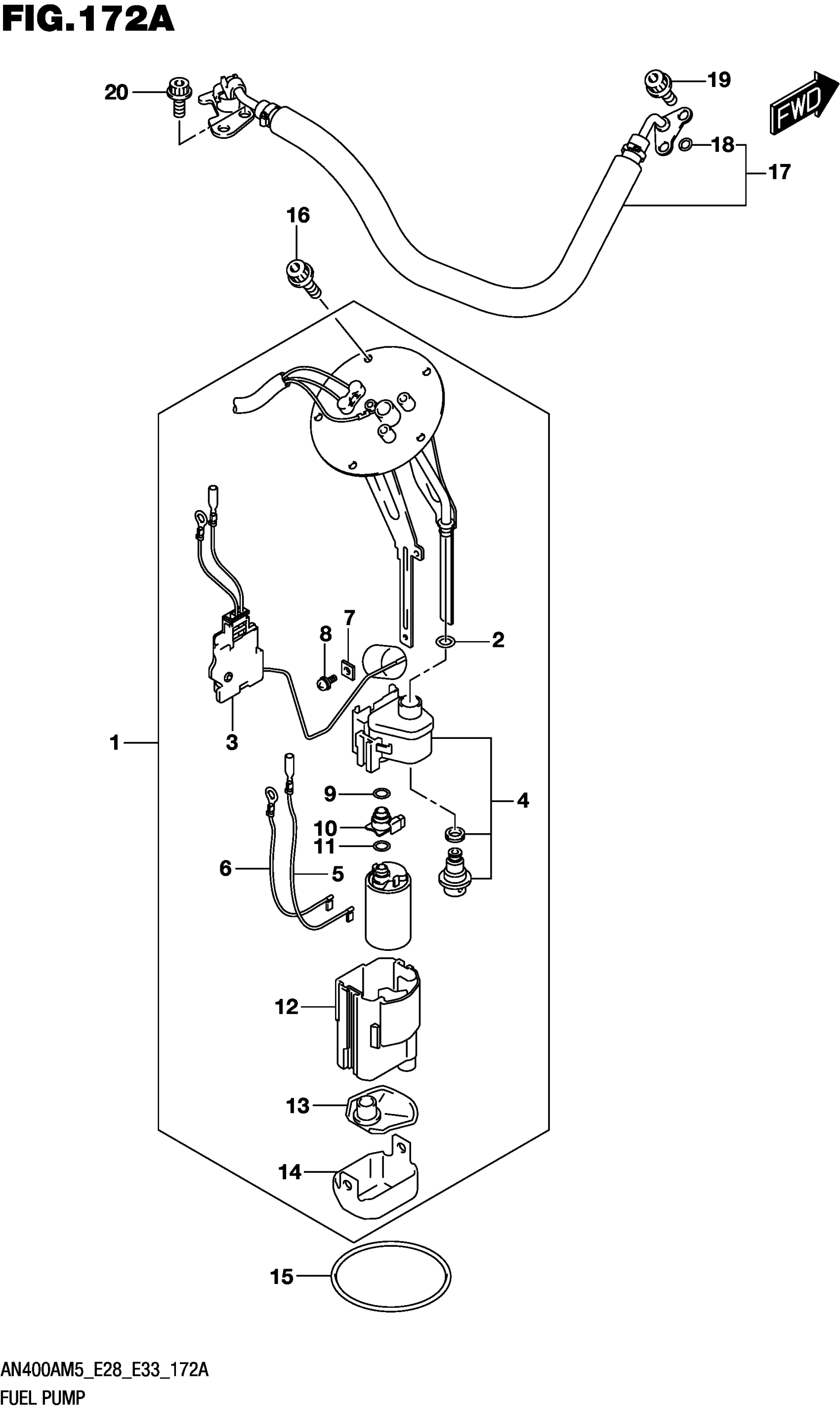

Find the part on the Fuel Pump diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki AN400AM5 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-05H11

1
Out of stock

2

.O-RING

15113-35F00

1
Out of stock

3

.GAUGE ASSY

34810-05H00

1
Out of stock

4

.REGULATOR

15610-05H00

1
Out of stock

5

.WIRE,LEAD

15115-05H00

1
Out of stock

6

.WIRE,EARTH

15114-05H00

1
Out of stock

7

.STOPPER

15117-05H00

2
Out of stock

8

.SCREW

15116-10F00

3
Out of stock

9

.O-RING

15113-05H00

1
Out of stock

10

.JOINT

15112-05H00

1
Out of stock

11

.O-RING

15113-05H00

1
Out of stock

12

.CUP

15111-18H00

1
Out of stock

13

.STRAINER

15420-05H00

1
Out of stock

14

.COVER,DUST

15426-05H00

1
Out of stock

15

O-RING

15201-35F00

1
Out of stock

16

BOLT

07120-0612A

5
Out of stock

17

HOSE,FUEL

15810-19K10

1
Out of stock

18

.O RING

15817-39H00

1
Out of stock

19

BOLT

07130-0610A

2
Out of stock

20

BOLT

07130-0612A

2
Out of stock
