Partiron

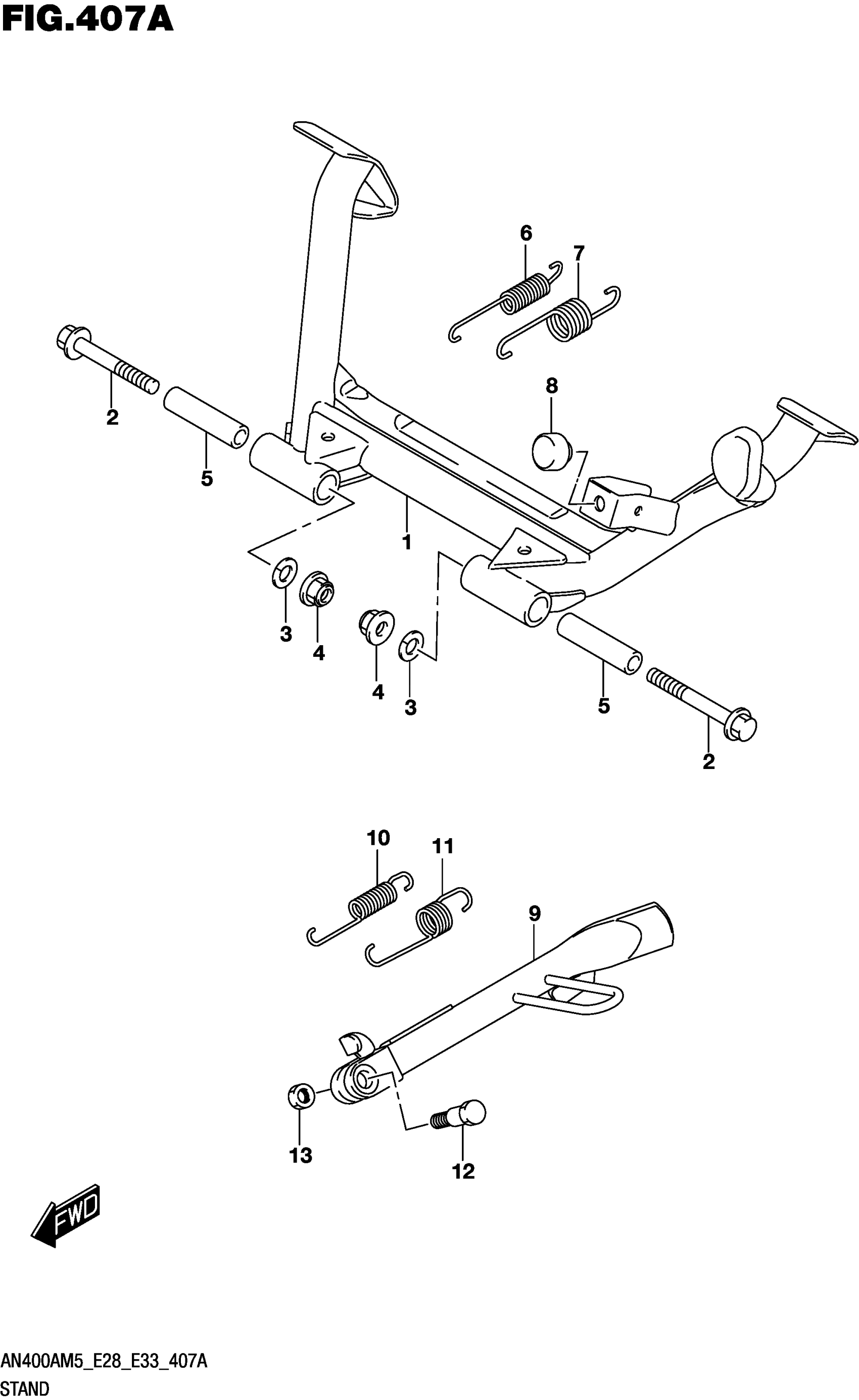

Suzuki AN400AM5 (2025) STAND Diagram

#

Description
Price

1

STAND,CENTER

42100-19K10

$250.20

2

BOLT (10X85)

09103-10707

$4.63

3

WASHER,LOCK

08321-0110A

$1.84

4

NUT

08319-3110A

$2.73

5

SPACER,CENTER STAND PIVOT

09180-10165

$13.40

6

SPRING

09443-14078

$4.63

7

SPRING

09443-22021

$6.02

8

CUSHION

09321-10001

$2.61

9

STAND,PROP

42310-19K10

$229.18

10

SPRING

09443-14079

$4.63

11

SPRING

09443-19024

$6.73

12

BOLT (10X34)

09111-10027

$3.37

13

NUT

09159-10097

$5.66
