2025 Suzuki AN400AM5 Side LEG Shield Diagram

← All diagrams

Find the part on the Side LEG Shield diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

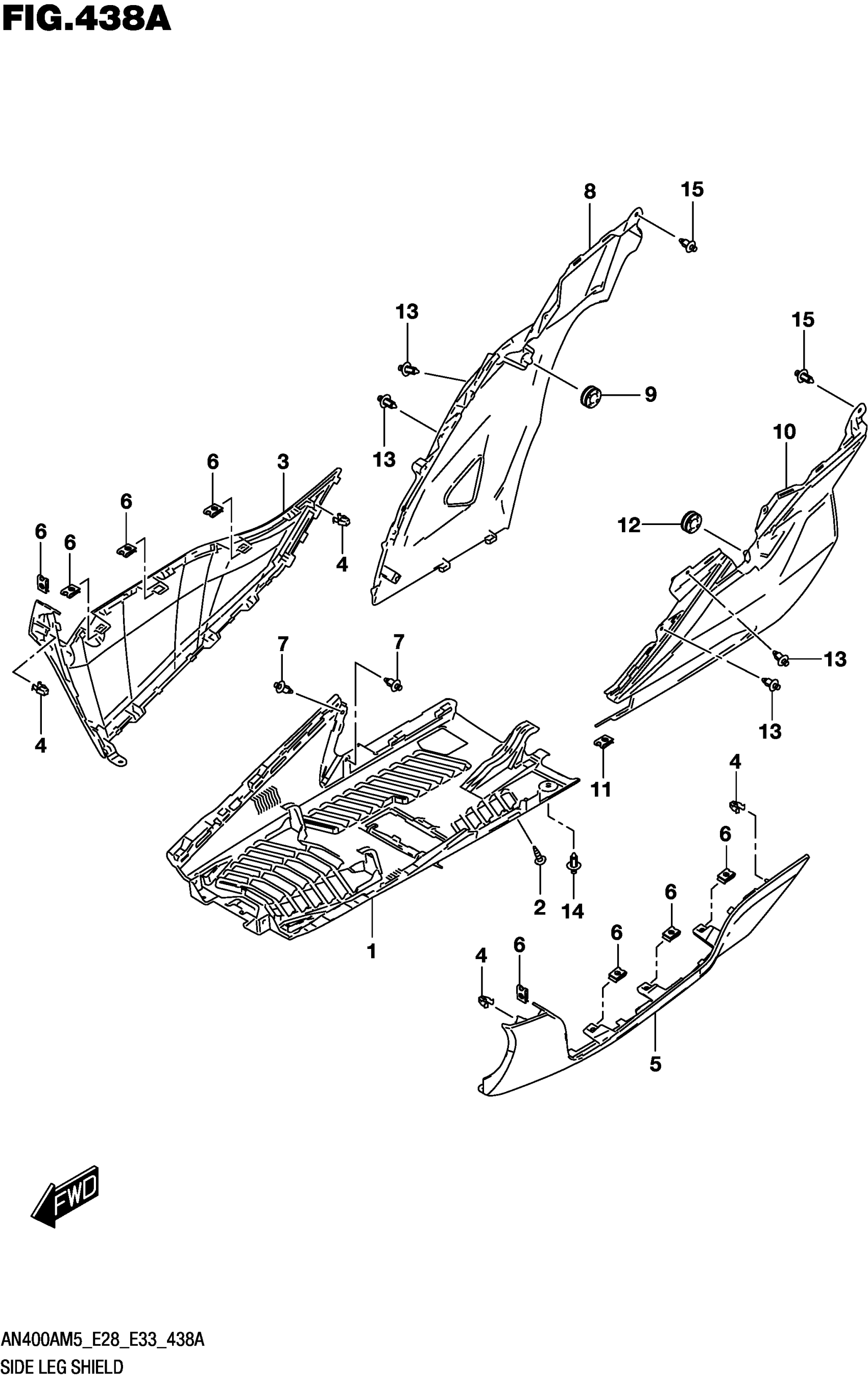

2025 Suzuki AN400AM5 Side LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, UNDER CTR

48138-19K00

1
Out of stock

2

SCREW

03541-0512A

1
Out of stock

3-1

SHIELD,LEG SIDE LWR RH (BLACK | BODY COLOR:YKV

48171-19K01-YKV

1
Out of stock

3-2

SHIELD,LEG SIDE LOWER,R (GRAY | BODY COLOR:YUD

48171-19K01-YUD

1
Out of stock

3-3

SHIELD,LEG SIDE LOWER,R (SILV | R) BODY COLOR:QKA

48171-19K01-QKA

1
Out of stock

4

CLIP (10.5X14.3)

09409-08326

4
Out of stock

5-1

SHIELD,LEG SIDE LWR LH (BLACK | BODY COLOR:YKV

48181-19K01-YKV

1
Out of stock

5-2

SHIELD,LEG SIDE LOWER,L (GRAY | BODY COLOR:YUD

48181-19K01-YUD

1
Out of stock

5-3

SHIELD,LEG SIDE LOWER,L (SILV | R) BODY COLOR:QKA

48181-19K01-QKA

1
Out of stock

6

NUT (M5)

09148-05038

8
Out of stock

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

2
Out of stock

8

COVER, LEG SIDE RH

48175-19K00

1
Out of stock

9

CUSHION (8X26X7)

09320-08028

1
Out of stock

10

COVER, LEG SIDE LH

48185-19K00

1
Out of stock

11

NUT (M5)

09148-05038

1
Out of stock

12

CUSHION (8X26X7)

09320-08028

1
Out of stock

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

4
Out of stock

14

CLIP (7.6X25.7)

09409-08308

1
Out of stock

15

CLIP (7.6X25.7)

09409-08308

2
Out of stock
