2025 Suzuki AN400AM5 Footboard Diagram

← All diagrams

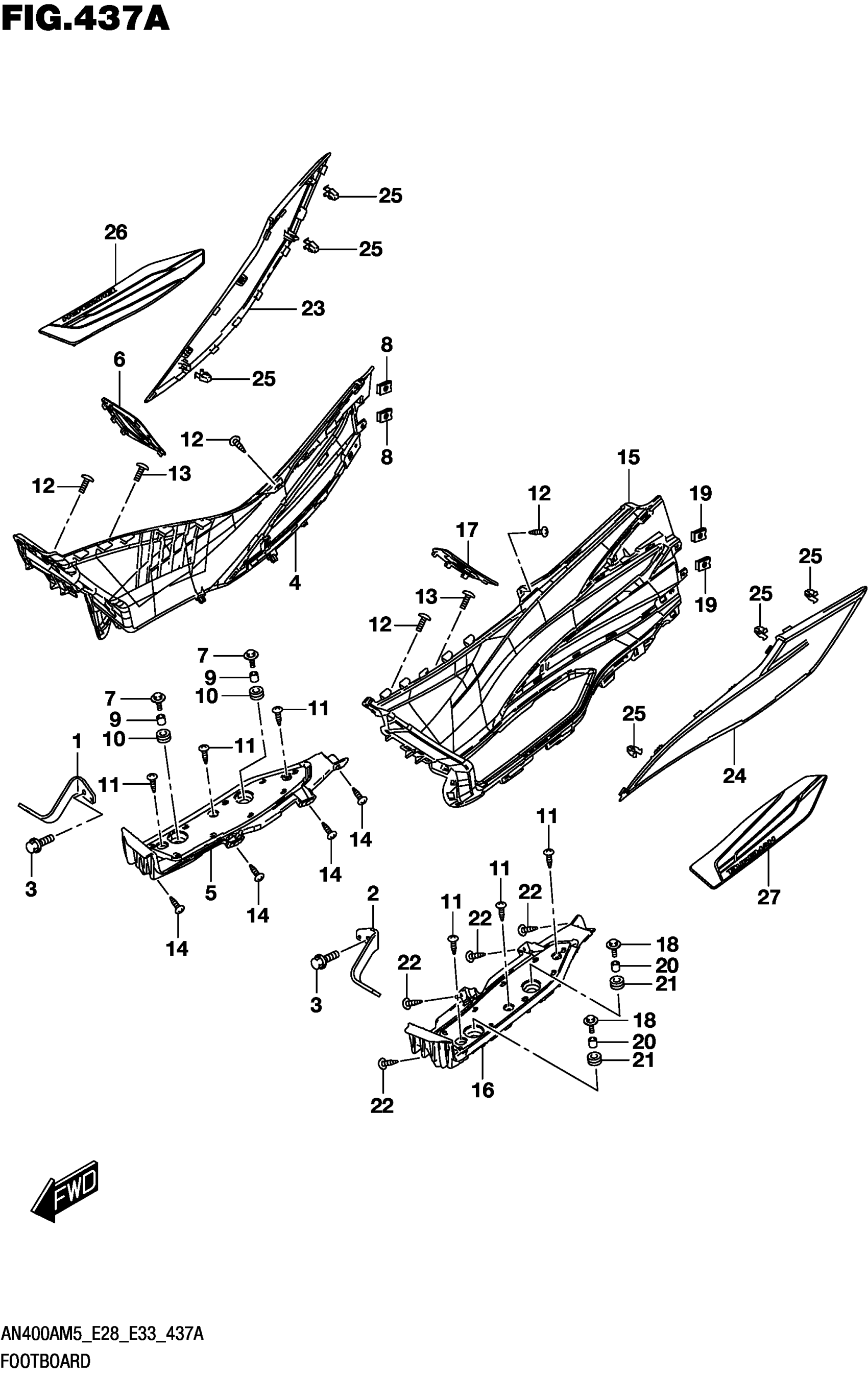

Find the part on the Footboard diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki AN400AM5 Footboard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FOOTBOARD RH

48190-19K00

1

$34.27

In stock

2

BRACKET, FOOTBOARD LH

48290-19K00

1
Out of stock

3

BOLT (8X16)

01550-0816A

2
Out of stock

4

FOOTBOARD, NO.1 RH

48121-19K00

1

$132.07

In stock

5

FOOTBOARD, NO.2 RH

48133-19K00

1

$41.38

In stock

6

FOOTBOARD, NO.3 RH

48135-19K00

1

$34.27

In stock

7

BOLT (6X25)

09116-06131

2

$2.58

In stock

8

NUT (M5)

09148-05038

2
Out of stock

9

SPACER (8.5X12X11)

09180-08189

2

$2.81

In stock

10

2

$4.55

In stock

11

SCREW

03541-0512A

6
Out of stock

12

SCREW

03541-0512A

4
Out of stock

13

SCREW

03541-0516A

2
Out of stock

14

SCREW

03541-0516A

4
Out of stock

15

FOOTBOARD, NO.1 LH

48122-19K00

1

$132.07

In stock

16

FOOTBOARD, NO.2 LH

48134-19K00

1

$41.38

In stock

17

FOOTBOARD, NO.3 LH

48136-19K00

1

$34.27

In stock

18

BOLT (6X25)

09116-06131

2

$2.58

In stock

19

NUT (M5)

09148-05038

2
Out of stock

20

SPACER (8.5X12X11)

09180-08189

2

$2.81

In stock

21

2

$4.55

In stock

22

SCREW

03541-0516A

4
Out of stock

23

COVER,LEG CENTER RH

48141-19K00

1

$124.17

In stock

24

COVER,LEG CENTER LH

48142-19K00

1

$124.17

In stock

25

CLIP (10.5X14.3)

09409-08326

6
Out of stock

26

MAT, FLOOR FRONT RH

48211-19K00

1

$72.15

In stock

27

MAT, FLOOR FRONT LH

48221-19K00

1

$72.15

In stock
