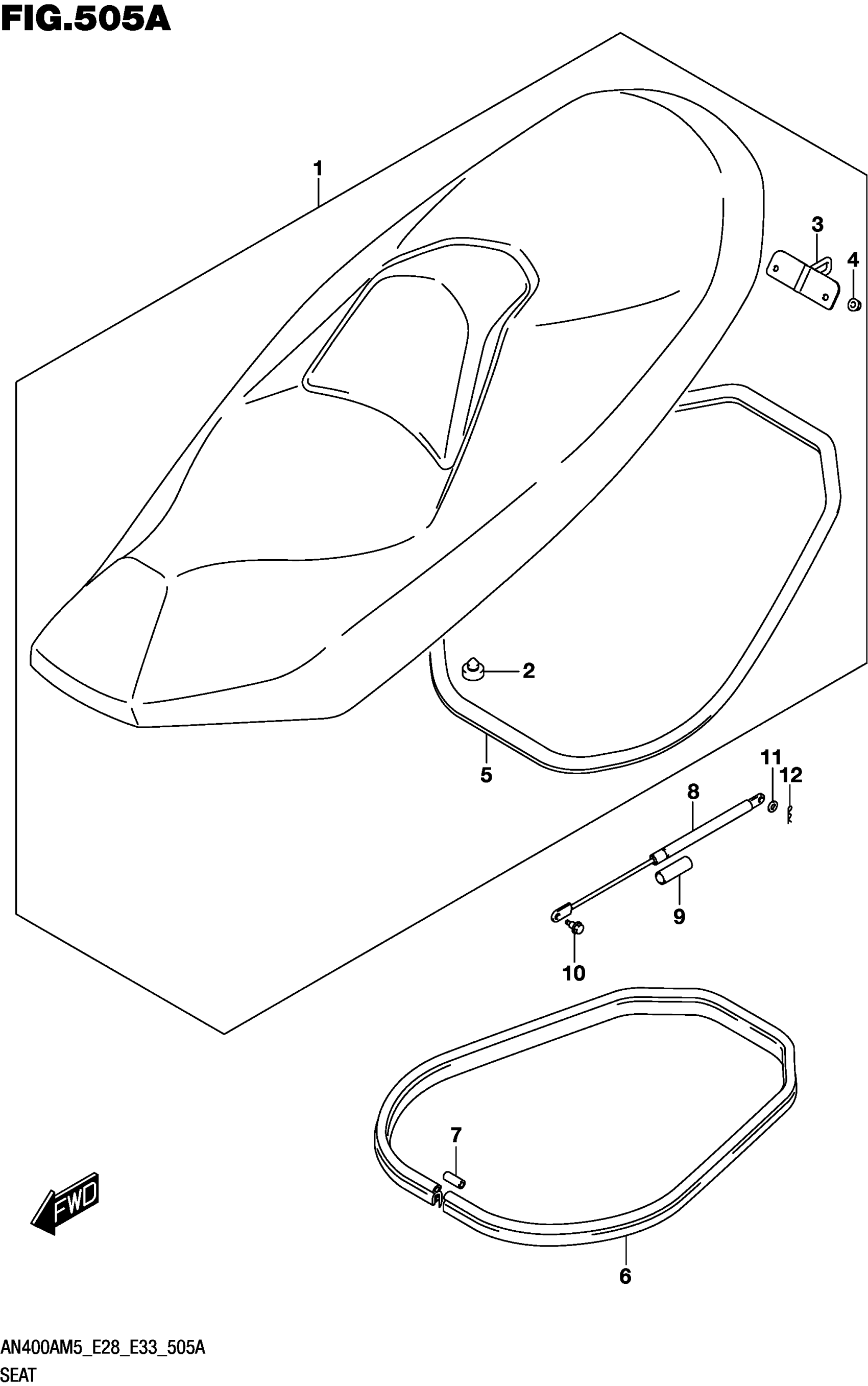

Find the part on the Seat diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki AN400AM5 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY

45100-19K02-B07

1
Out of stock

2

CUSHION This part replaces 45148-16700.

09321-10002

2
Out of stock

3

.STRIKER, SEAT LOCK

45210-05H10

1
Out of stock

4

NUT (6X12)

08316-1006A

2
Out of stock

5

.CUSHION,SEAT BOTTOM

45148-19K01

1
Out of stock

6

MOLDING, SEAT

45211-33G60

1
Out of stock

7

HOSE | L:600->30

09351-30001-600

1
Out of stock

8

DAMPER ASSY, SEAT

45270-19K00

1
Out of stock

9

HOSE (13.5X16.5X600) | L:600->40

09352-13162-600

1
Out of stock

10

BOLT (6X16)

09111-06071

1
Out of stock

11

WASHER

08322-0108A

1
Out of stock

12

PIN

09385-08003

1
Out of stock
