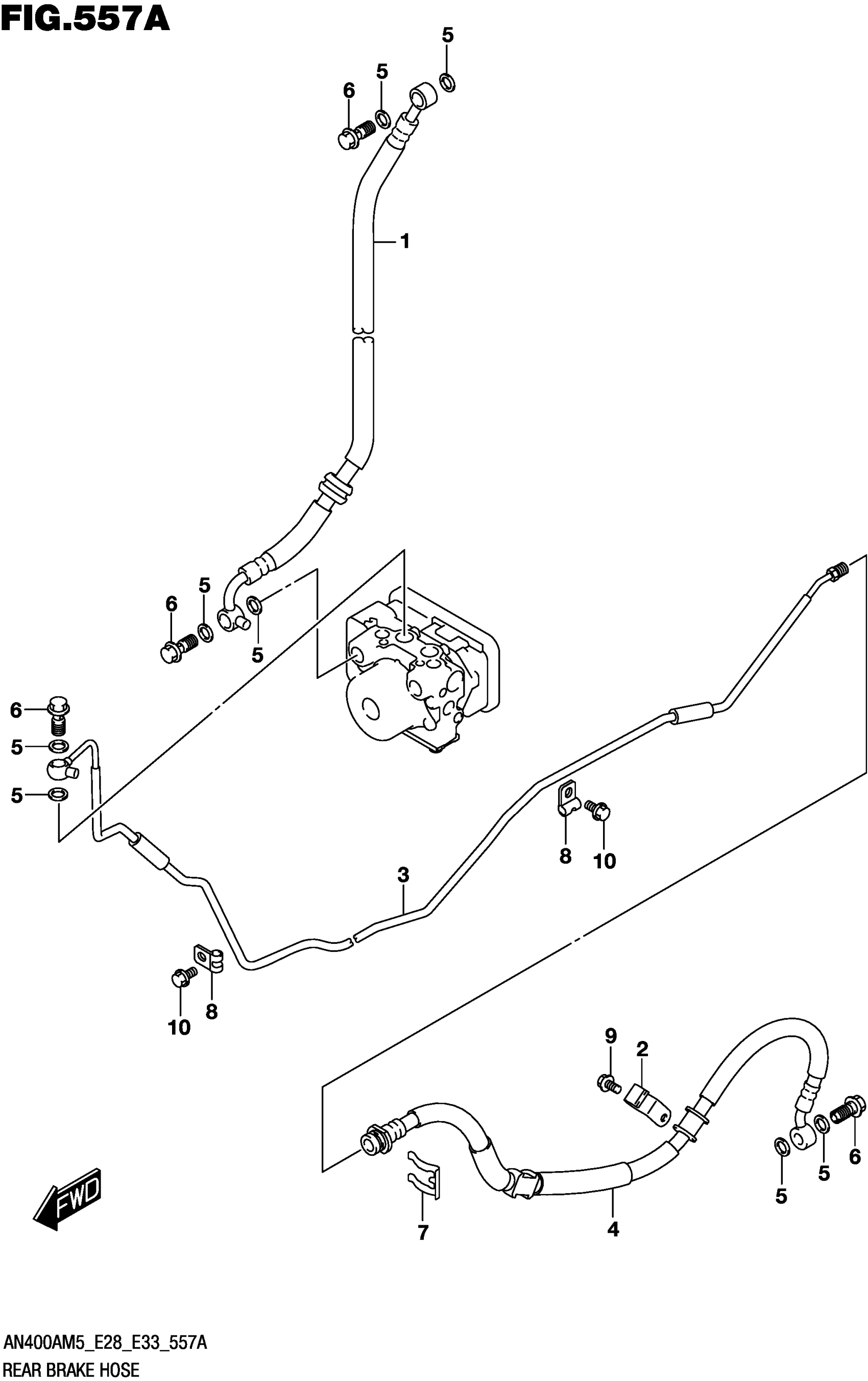

Suzuki AN400AM5 (2025) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE,RR BK MASTER TO UNIT

69240-19K20

$48.37

2

CLAMP,RR BRAKE HOSE NO.2

69266-05H00

Unavailable

3

PIPE,REAR BRAKE

69450-19K20

$71.35

4

HOSE,UNIT TO RR BK CLPR

69480-19K20

$62.88

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

E RING This part replaces 09383-13001.

09383-13003

$2.30

8

CLAMP

09403-07412

$2.45

9

BOLT

01547-0612A

$2.03

10

BOLT

01547-0616A

$2.03
