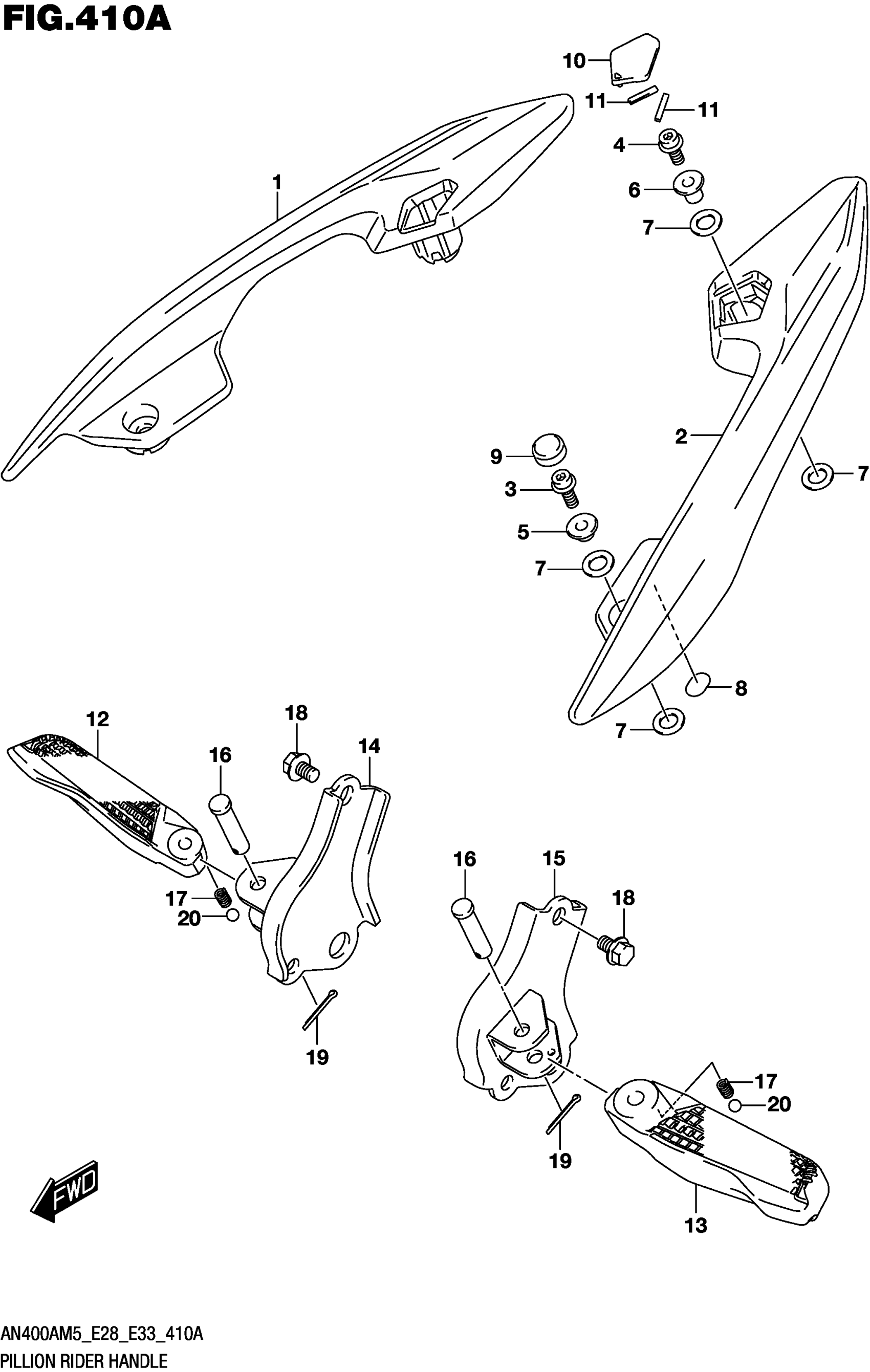

Suzuki AN400AM5 (2025) PILLION RIDER HANDLE Diagram

#

Description
Price

1-1

HANDLE,PILLION RIDER RH (BLAC | ) BODY COLOR:YKV

46211-19K00-YKV

$225.07

1-2

HANDLE,PILLION RIDER,R (GRAY) | BODY COLOR:YUD

46211-19K00-YUD

$225.07

1-3

HANDLE,PILLION RIDER,R (SILVE | ) BODY COLOR:QKA

46211-19K00-QKA

$228.67

2-1

HANDLE,PILLION RIDER LH (BLAC | ) BODY COLOR:YKV

46221-19K00-YKV

$225.07

2-2

HANDLE,PILLION RIDER,L (GRAY) | BODY COLOR:YUD

46221-19K00-YUD

$246.82

2-3

HANDLE,PILLION RIDER,L (SILVE | ) BODY COLOR:QKA

46221-19K00-QKA

$228.67

3

BOLT (8X20)

09103-08430

$3.15

4

BOLT This part replaces 09103-08152.

09103-08419

$2.53

5

WASHER, PILLION RIDER HDL FR

09169-08051

$3.88

6

WASHER, PILLION RIDER HDL RR

09169-08052

$4.50

7

CUSHION,PILLION RIDER HDL FR

46212-19K01

$4.85

8

CUSHION,PILLION RIDER HDL LWR

46213-19K01

$4.85

9

CAP

46271-14G00

$7.53

10-1

COVER,PILLION RIDER HNDL (BLA | K) BODY COLOR:YKV

46281-19K00-YKV

$43.85

10-2

COVER,PILLION RIDER HANDLE (G | AY) BODY COLOR:YUD

46281-19K00-YUD

$43.85

10-3

COVER,PILLION RIDER HANDLE (S | LVER) BODY COLOR:QKA

46281-19K00-QKA

$47.92

11

CUSHION

46214-19K00

$1.75

12

BAR, PILLION FOOTREST RH

43611-19K20

$66.33

13

BAR, PILLION FOOTREST LH

43621-19K20

$66.33

14

BRACKET, PILLION RH

43650-19K00

$70.57

15

BRACKET, PILLION LH

43750-19K00

$70.57

16

PIN, PILLION FOOTREST BAR

09200-08075

Unavailable

17

SPRING

09440-05003

$1.49

18

BOLT

01550-0812B

$2.73

19

PIN

04111-2015A

$1.49

20

BALL

06111-07004

$1.49
