2025 Suzuki AN400AM5 Front Combination Lamp Diagram

← All diagrams

Find the part on the Front Combination Lamp diagram for your 2025 Suzuki AN400AM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

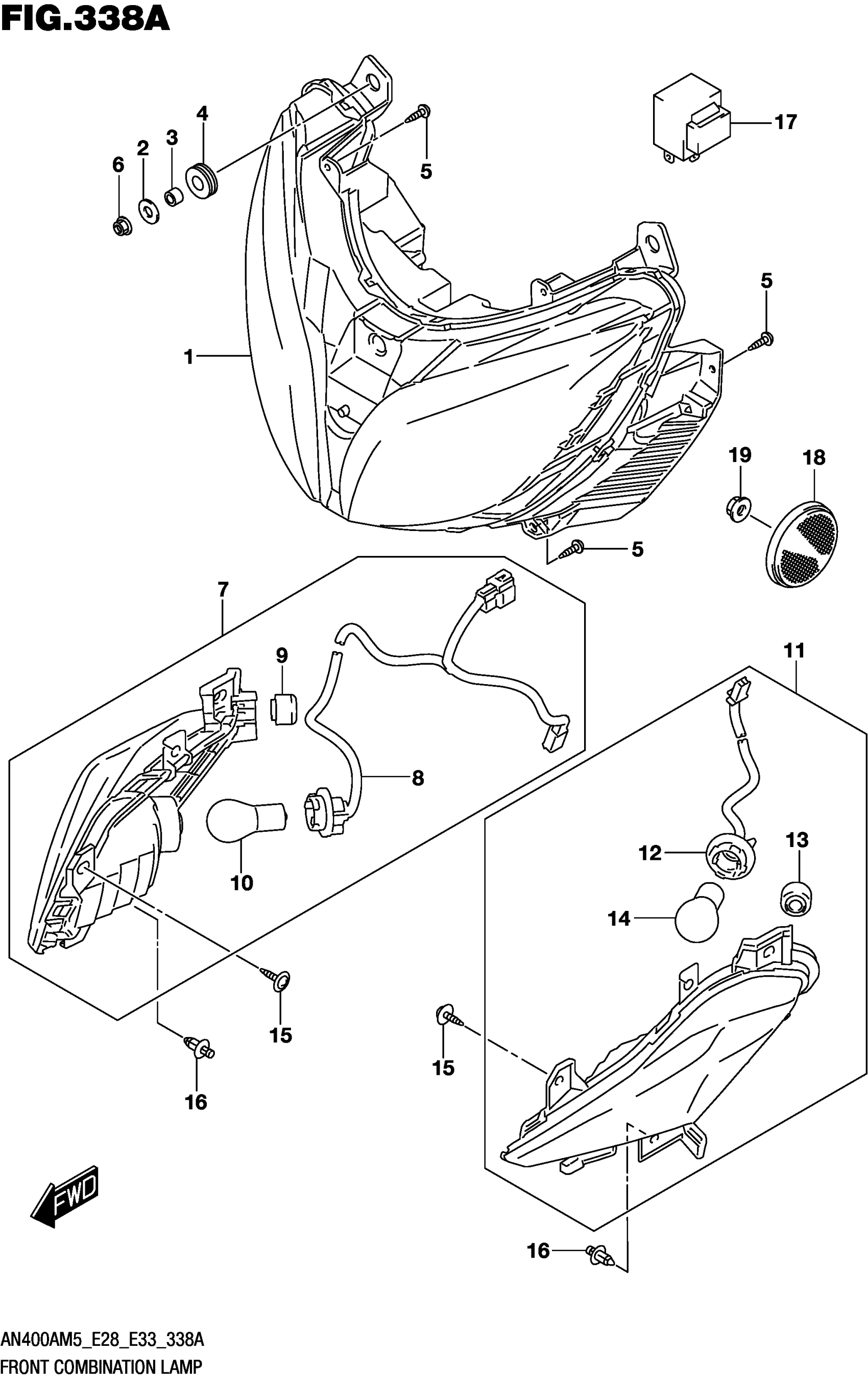

2025 Suzuki AN400AM5 Front Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-19K01

1

$905.13

In stock

2

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

3

SPACER (6.5X10X7)

09180-06283

2
Out of stock

4

CUSHION

09320-10059

2
Out of stock

5

SCREW

03541-0516A

6
Out of stock

6

NUT (6X12)

08316-1006A

2
Out of stock

7

1

$151.65

In stock

8

.CORD ASSY RH

35618-19K01

1

$34.12

In stock

9

.CAP

35650-19K00

1

$12.63

In stock

10

.BULB (12V21W)

09471-12186

1
Out of stock

11

1

$144.23

In stock

12

.CORD ASSY LH

35638-19K01

1

$25.52

In stock

13

.CAP

35650-19K00

1

$12.63

In stock

14

.BULB (12V21W)

09471-12186

1
Out of stock

15

SCREW (5X16)

09136-05063

—
Out of stock

16

2

$2.92

In stock

17

RELAY ASSY,TURNSIGNAL

38610-48K00

1

$73.63

In stock

18

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

2
Out of stock

19

NUT

08316-1005A

2
Out of stock
